Dahua Original NVR NVR2108-4KS2 8CH 8MP 4K Network Video Recorder 80Mbps Bandwidth H.265 H.264 IP Camera CCTV System Security
![]()
1. About this Dahua NVR:
This model is 100% original Dahua NVR, it support firmware updating!
2. About Service:
Please contact our customer service if any doubt, We can support Skype/WhatsApp/WeChat, please contact our customer service to get the ID because we can't leave any contact information here as the rule of aliexpress.
![]()
8CH Channel Smart 1U Lite 4K H.265 Network Video Recorder NVR
> H.265/H.264 codec decoding
> Max 80Mbps incoming bandwidth
> Up to 8Mp resolution preview&playback
> Up to 1ch@8MP/4ch@1080P decoding
> HDMI/VGA simultaneous video output
![]()

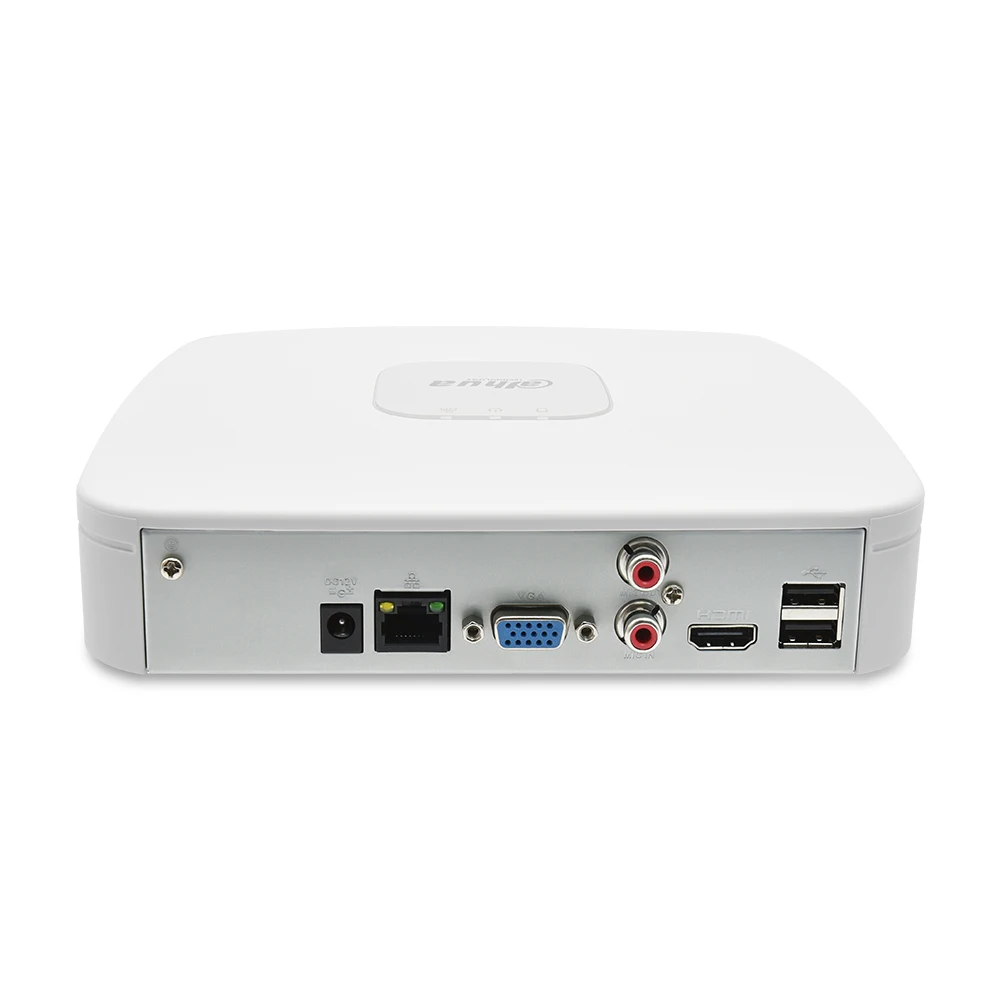

Model: NVR2108-4KS2
1.System:
Main Processor: Dual-core embedded processor
Operating System: Embedded LINUX
2.Audio and Video:
IP Camera Input: 8 Channel
Two-way Talk: 1 Channel Input, 1 Channel Output, RCA
3.Display:
Interface: 1 HDMI, 1 VGA
Resolution: HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity: 1ch@8MP 30fps, 4ch@1080P 30fps
Multi-screen Display: 4CH: 1/4 8CH: 1/4/8/9 16CH: 1/4/8/9/16
OSD: Camera title, Time, Camera lock, Motion detection, Recording
4.Recording:
Compression: H.265/H.264
Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc.
Record Rate: 80Mbps
Bit Rate: 16Kbps ~ 20Mbps Per Channel
Record Mode: Manual, Schedule(Regular(Continuous), MD, Stop
Record Interval: 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
5.Video Detection and Alarm:
Trigger Events: Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 × 18),
and Tampering
Alarm input: N/A
Relay Output: N/A
6.Playback and Backup:
Sync Playback: 1/4
Search Mode: Time /Date, MD and Exact Search
(accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network
7.Third-party Support:
Third-party Support: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
8.Network:
Interface: 1 RJ-45 port (10/100Mbps)
PoE: N/A
Network Function: HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support IP camera, DVR, NVS and etc.), Easy4ip
Optical Fiber Interface: N/A
Max. User Access: 128 users
Smart Phone: iPhone, iPad, Android
Interoperability: ONVIF 2.4, SDK, CGI
9.Storage:
Internal HDD: 1 SATA III Port, up to 6TB capacity for each HDD
HDD Mode: Single
eSATA: N/A
10.Auxiliary Interface:
USB: 2 ports (2 Rear USB2.0)
RS232: N/A
RS485: N/A
11.Electrical:
Power Supply: Single, DC12V/2A
Power Consumption: <3W (without HDD)
12.Environmental:
Operating Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
13.Construction:
Dimensions(W×D×H): Smart 1U, 204.6mm×204.6mm×45.6mm
(8.1" x 8.1" x 1.8")
Net Weight: 0.45kg (0.99 lb) (without HDD)
Gross Weight: 1.5kg(3.31 lb)(without HDD)
14.Certifications:
CE: EN55032, EN55024, EN50130-4, EN60950-1
FCC: Part 15 Subpart B, ANSI C63.4-2014
UL: UL60950-1
![]()
![]()
![]()
![]()
![]()
![]()

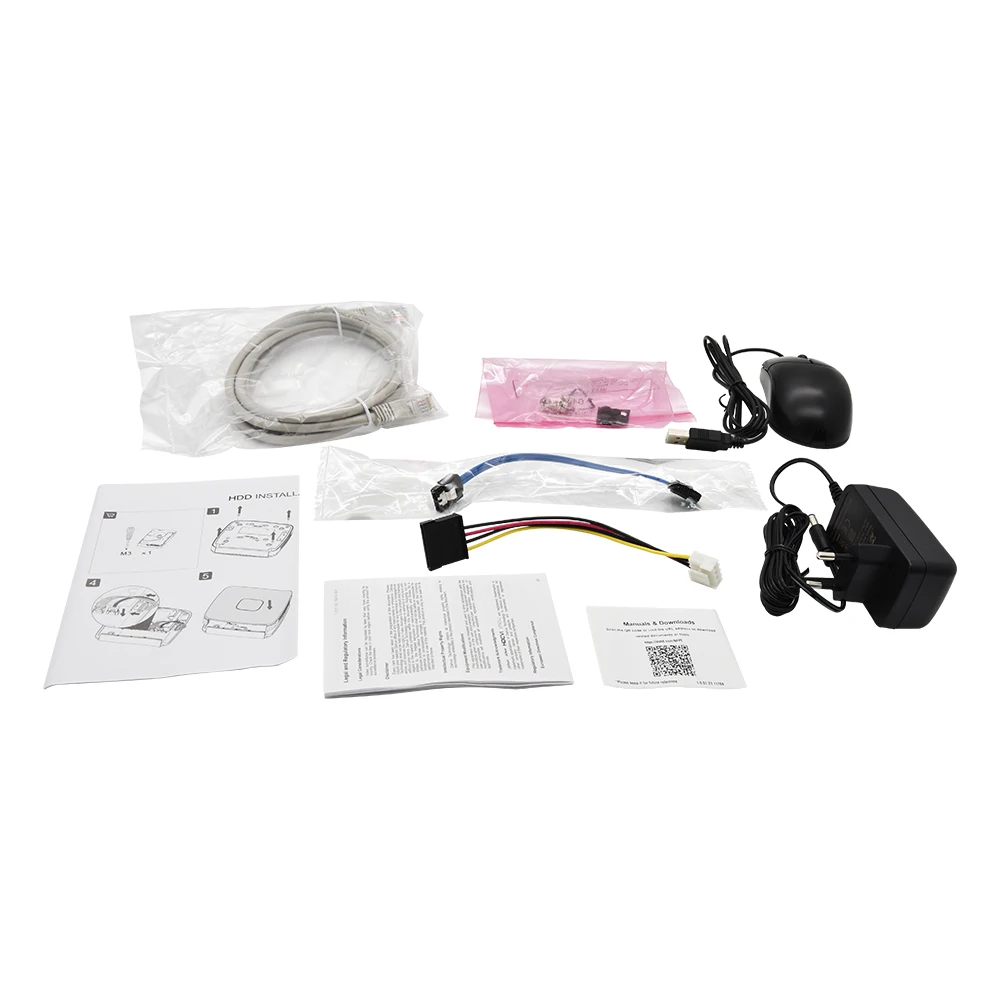

> Original NVR NVR2108-4KS2 * 1
> Original Accessories
