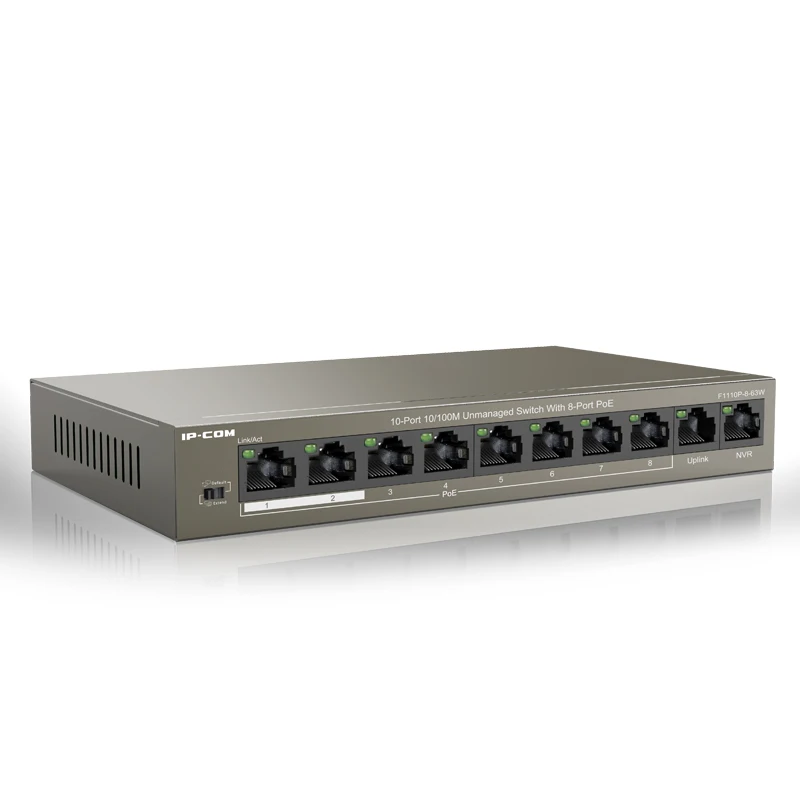

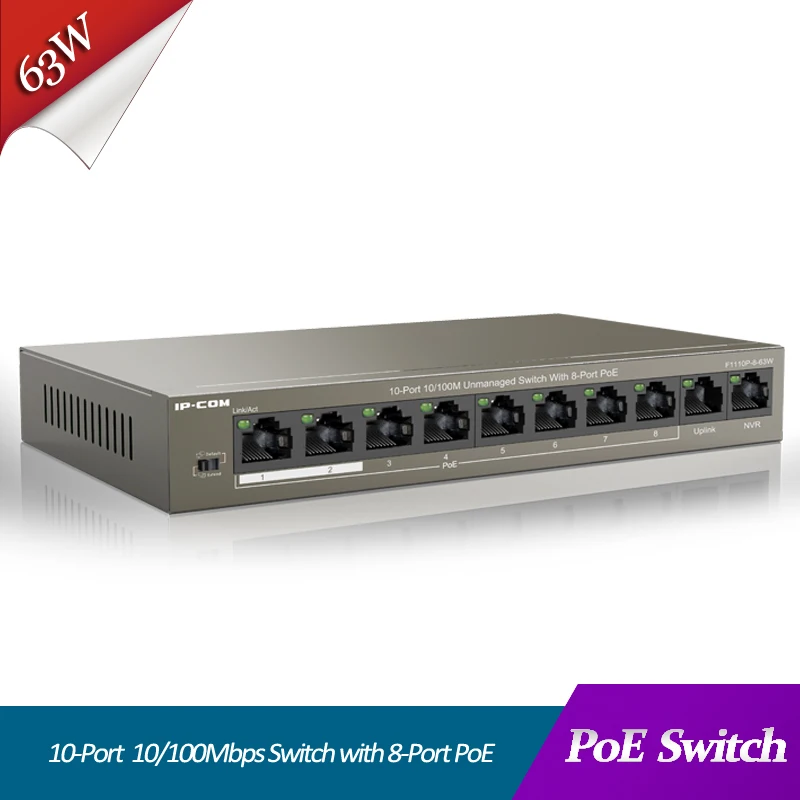

10-Port Fast Ethernet Umanaged PoE Switch with 8-Port PoE

Overview:

F1110P-8-63W is a 100M dual-port uplink unmanaged PoE switch independently designed by IP-COM. Support AF / AT standard PoE power supply mode, intelligently identify the powered device. The maximum output of a single port is 30W, and the whole machine is 63W. Supports 250m network extension, QoS priority, one-click VLAN and other functions. It is specially created for outdoor and indoor small surveillance networking needs. It is an ideal choice for small businesses, convenience stores, and street food and beverage video surveillance networking.



Key Features: Comply with IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3af / at standards Two 10 / 100M RJ45 uplink ports, which can be connected to NVR and router at the same time The 1-2 ports of the device support QoS priority to ensure stable and smooth transmission of important monitoring pictures, and the video is not blocked. 1K MAC address and MAC address auto-learning IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control 1.6 Gbps non-blocking wire-speed forwarding backplane bandwidth PoE port single port maximum output power: 30 W, the maximum PoE output power meter of the whole machine: 58W Support 250m network extension, 1-2 ports are high priority ports 6KV high-level lightning protection, support PSE short circuit protection, PoE overload and other protection features One-touch dialing to enable extension and VLAN isolation mode, the longest transmission distance can reach 250 meters Ports 1-8 are isolated from each other, communicate with uplink ports, isolate broadcast storms, and prevent DHCP spoofing. Ensure network security and improve network robustness.   Specifications:   Product Model F1110P-8-63W Standards&Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE802.3at Switching capacity 1.Gbps Dimensions 177.5mm*104mm*26mm(L*W*H) MTBF ≥100,000 hours Indicators Link/Act, PoE Status, Power,PoE Max Interfaces 8 10/100Mbps RJ45 Port(Data/PoE) 1 10/100Mbps RJ45 Port(Data) (Auto negotiation/Auto MDI/MDIX) Capacity Wire-speed forwarding Support Forwarding mode Store-forward and cut-through Mac Address Table 1K PoE Supply  Port 1 to Port 8 support standard IEEE802.3af/at power(maximum power for each port is 30W), PoE power type is end-span(12 +,36 - and 45 +,78 - line pair) Input Voltage AC:100-240~50/60Hz DC:51V/1.25A(Power Adapter Output) Power Consumption In full configuration: <63W Power Supply: 58W Environment Operating Temperature:0°C~40°C(32°F~104°F) Storage Temperature:-40°C~70°C(-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Port features  Default: Normal mode. All ports can communicate with each other and can be used as ordinary unmanaged PoE switches.
Extend: Extend mode. In this mode, the speed of ports 1-8 of the switch will be reduced to 10Mbps, but the longest transmission distance can reach 250 meters. At the same time, ports 1-8 cannot communicate with each other, but can communicate with uplink ports, which can be used to isolate broadcasts. Storm and DHCP conflict. Certification FCC/CE/RoHS/CCC

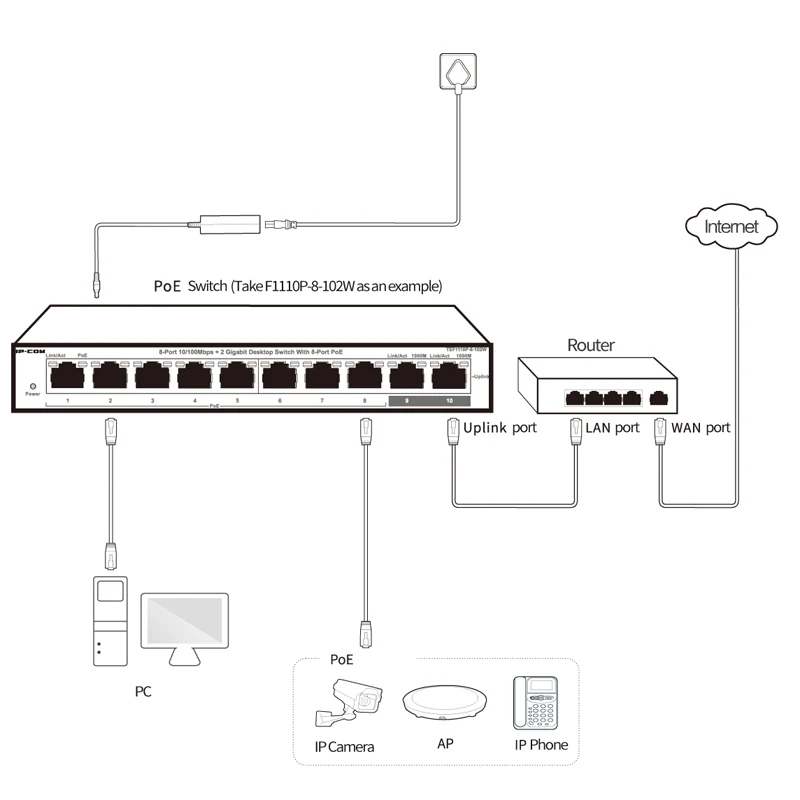

Application

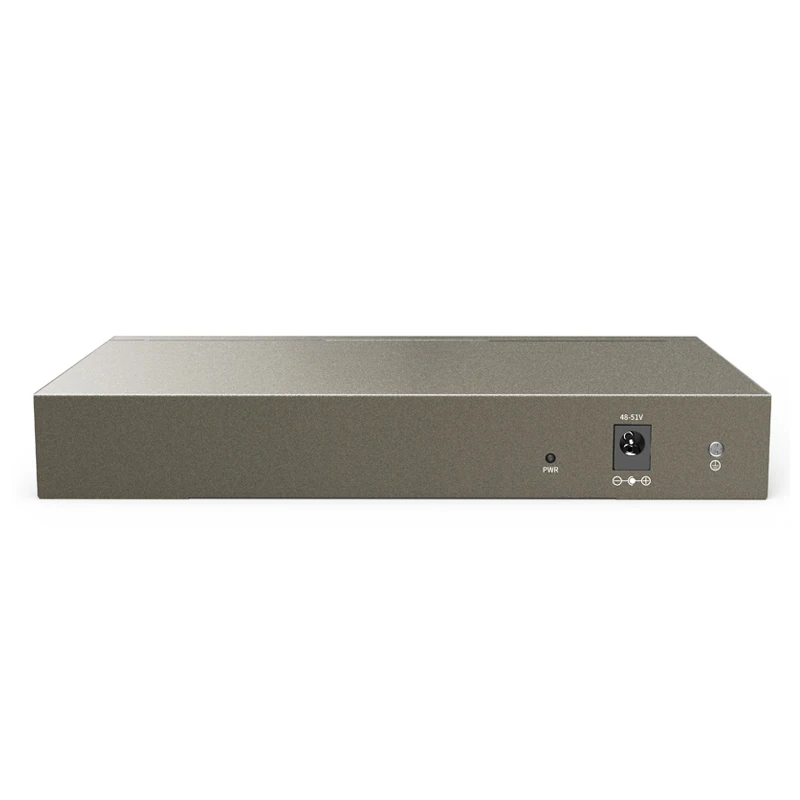

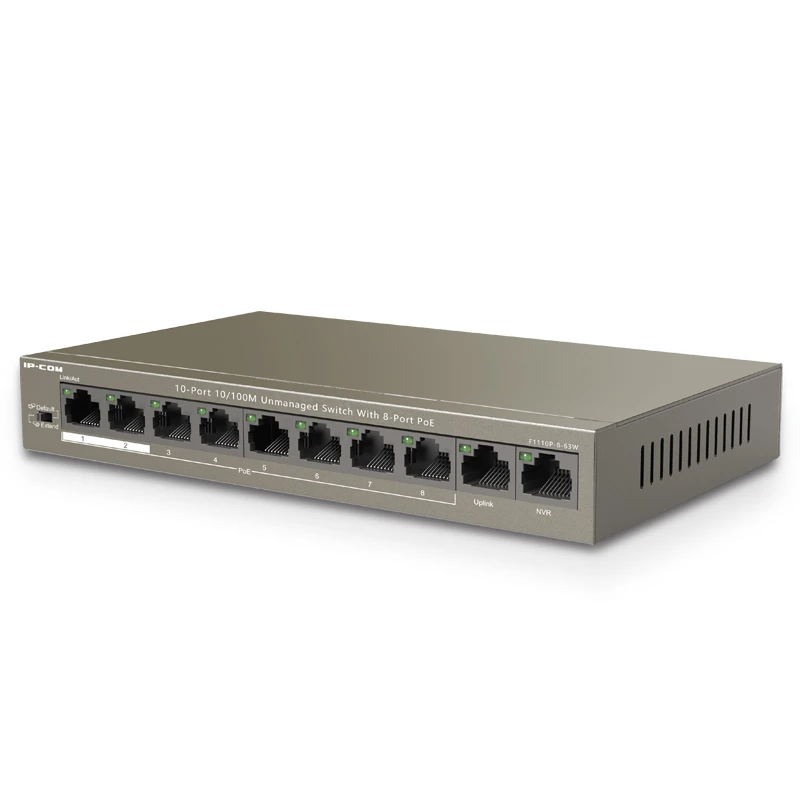

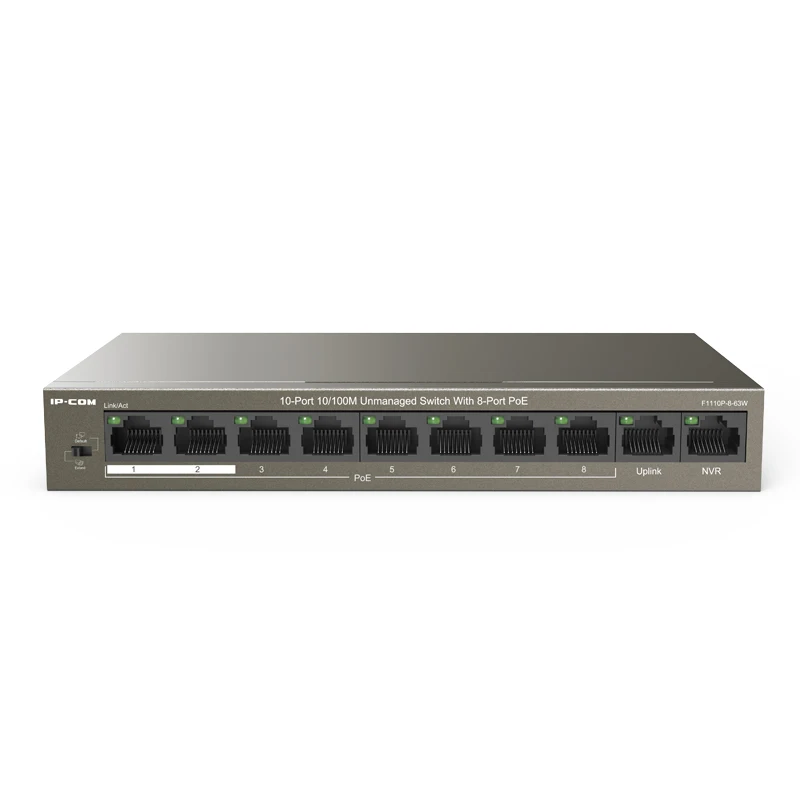

Detailed pictures:
