3040 2200W vertical cnc milling machine 3 axis 4 5 Axis 2200w wood router engraver with free cutter collet | Инструменты
Описание товара

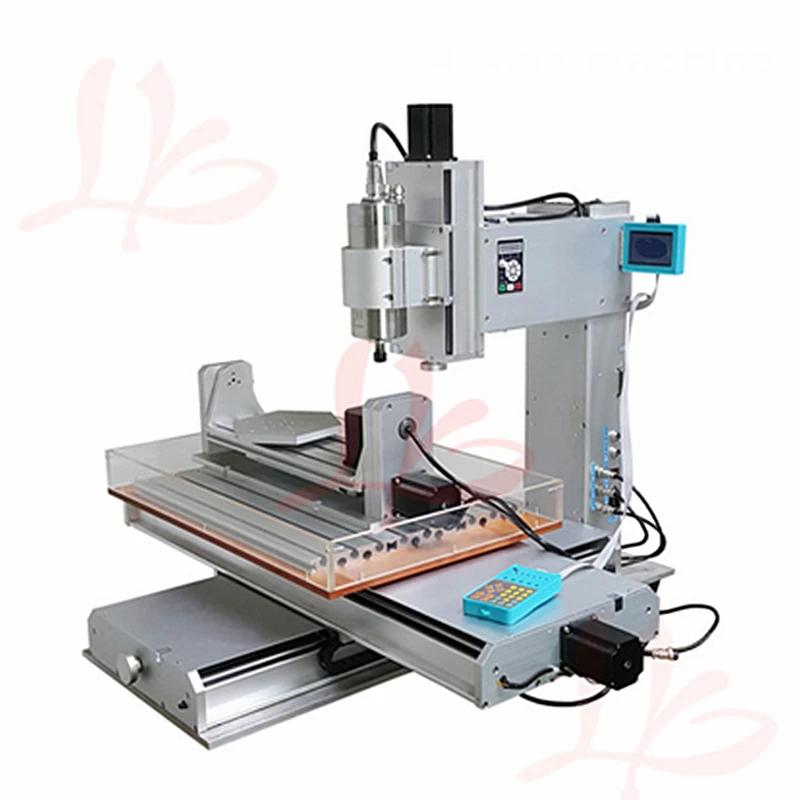

Column Type CNC 3040 5 Axis wood metal router machine with free cutter collet LPT port 2.2KW
![CNC 3040]()
![]()
Pls notice :
Our package has CD ,the CD include detail english manual and Mach3 software and so on.
If no CD in the package because of customs detention, pls contact us.
We will send you a link to download the document.
CNC Engraving Machine Specifications:
Model
Column type 3040 CNC Machine 2.2KW
Attribute

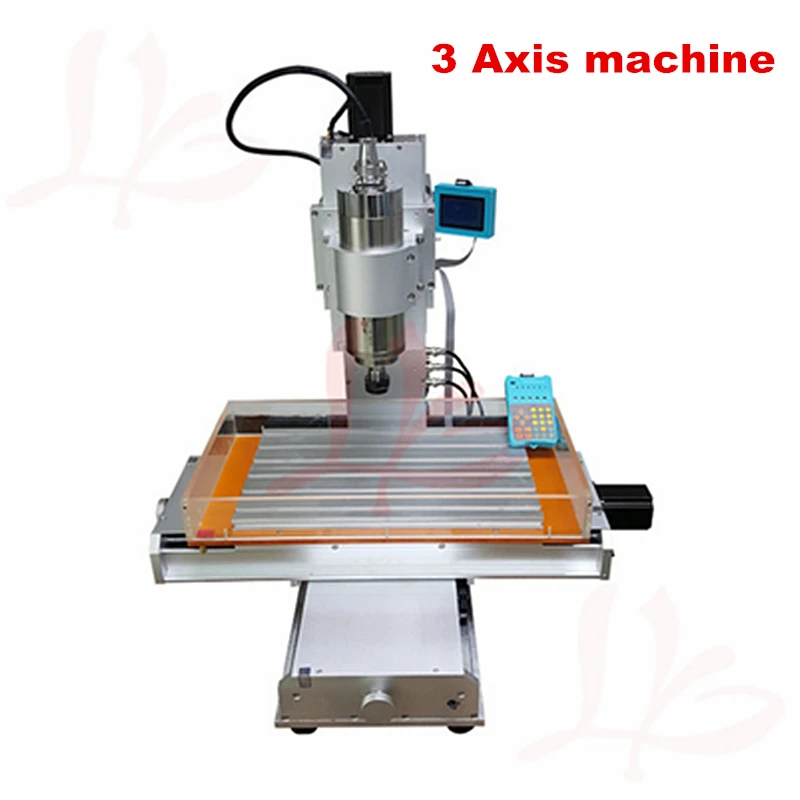

3axis machine

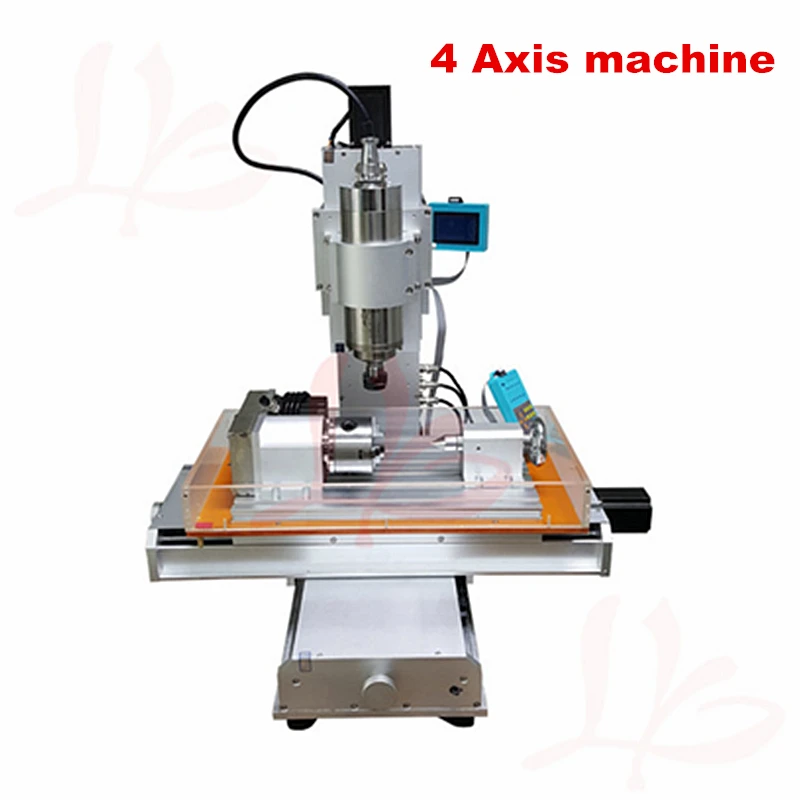

4axis machine

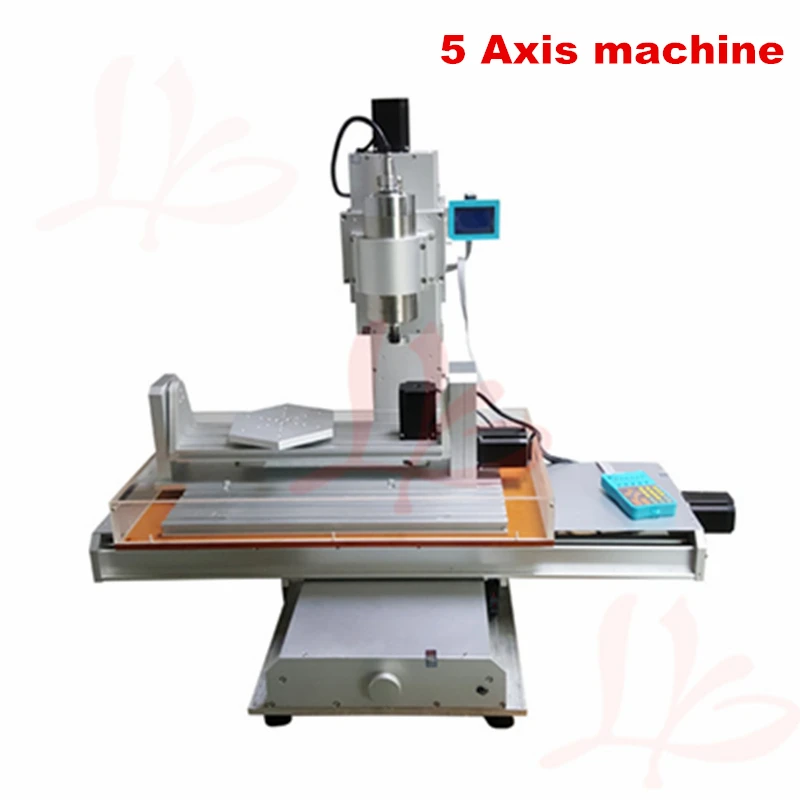

5axis machine
X Y Z axis
√
√
√

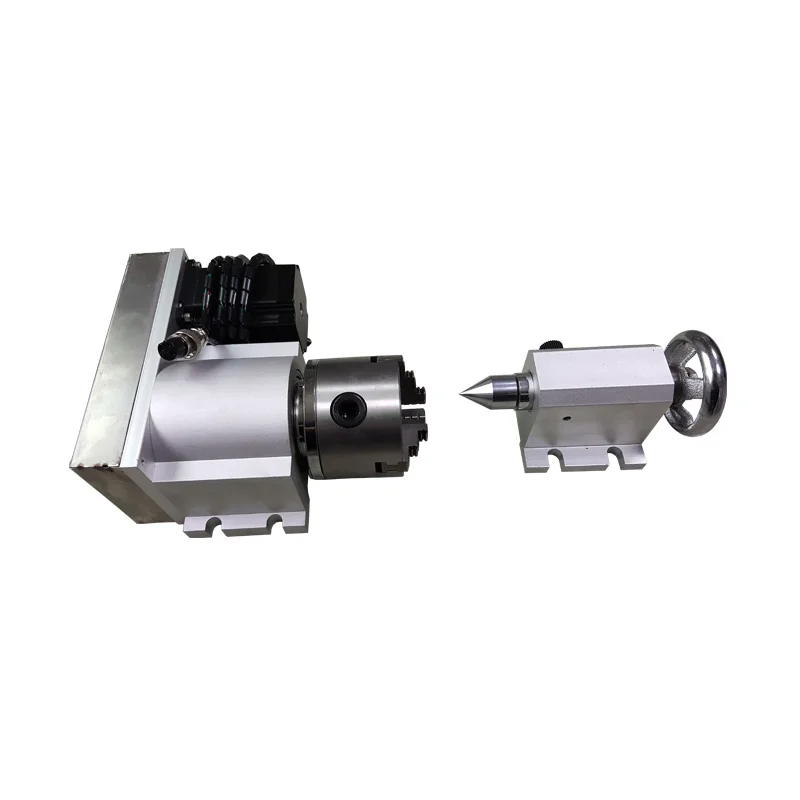

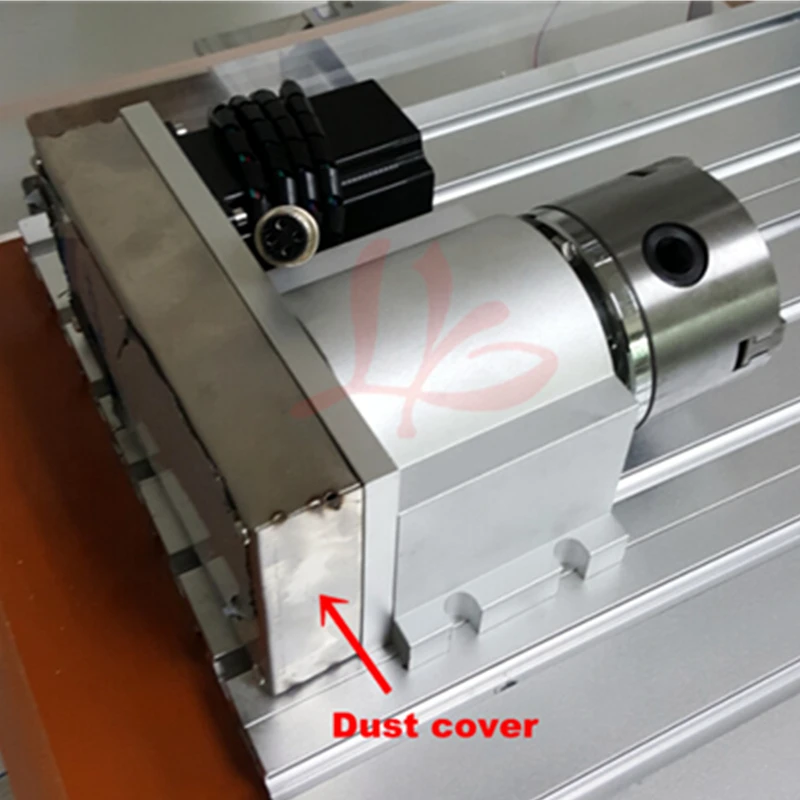

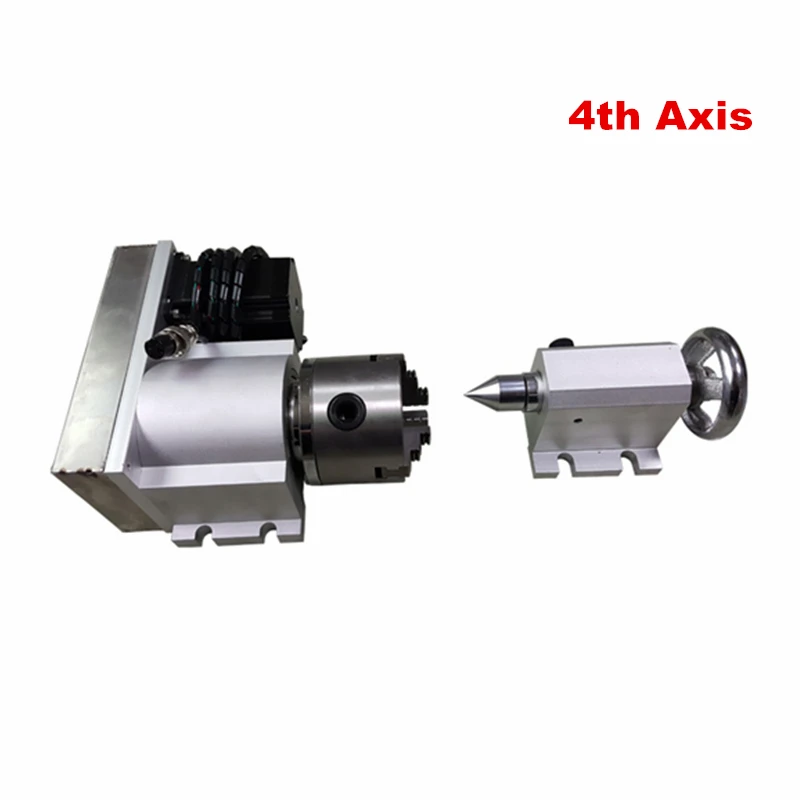

A axis (4th axis)
ⅹ
√
ⅹ

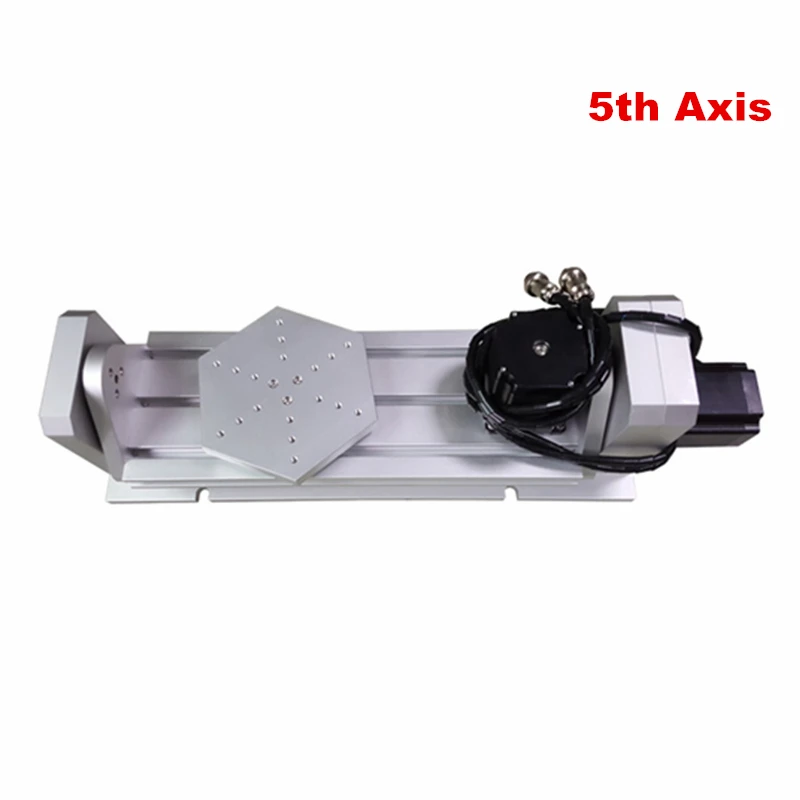

B axis (5th axis)
ⅹ
ⅹ
√
Product demention
520(H)X660(L)X580(W) mm
Effective work area
300x400x(150)mm
Precision ballscrew
1605
XYZ rail material
Hard chrome shaft
XY rail diameter
20mm
Z rail diameter
16mm
XYZ axis torque
57*78 250 OZ/IN (2.2N/CM)
4th and 5th
57*56
4th and 5th transmission ratio
1:6
Repeat positioning accuracy
0.01mm
Working precision
0.02mm
Processing speed
0-4000 mm/Min
A-axis B-axis rotation speed
0-180 rpm/min
XY table maximum load
50kg
XY+A+B axis table maximum load
15kg
Tailgate material
Stainless steel
Switching Power Supply
Integrated 24V 350W
Spindle power
2200 W water-cooled frequency spindle
Spindle converter
2200W
Input Power
220V / 110V power supply
Output Current
Drive 4.5A (peak 5A)
Drive motor
57*78 stepper motors (two-phase 4 wire)
Net Weight
60kg
Gross Weight
95kg
Outside packing
80*70*85 (cm)
CNC Machine Features:
1. Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions,
can simultaneously track digital recording of computer data and handle mobile data control
2. The computer keeps track of the path, you can run once the computer processing of the data record-keeping
process automatically repeats offline processing operation.
3. Manually move the processing to save recorded track record, manually move the machine data and automatically reprocessed run manually move the path.
4. Manual data input processing path and enter the path to run automatically.
5 You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control
6. Max 5A stepper motor drive current, eight-speed adjustable.
7. Up to 16 segments, higher accuracy, run more smoothly.
8. Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer
and peripherals.
9. Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.
10. Closed optical isolation, dual-stage signal processing, and fully protect your computers and devices.
Why buy from us :

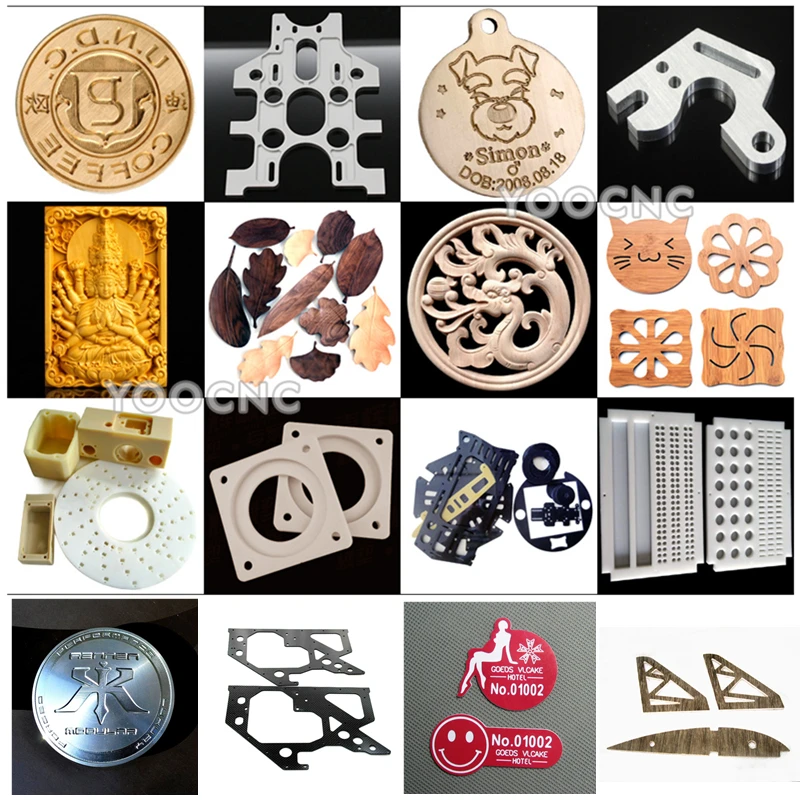

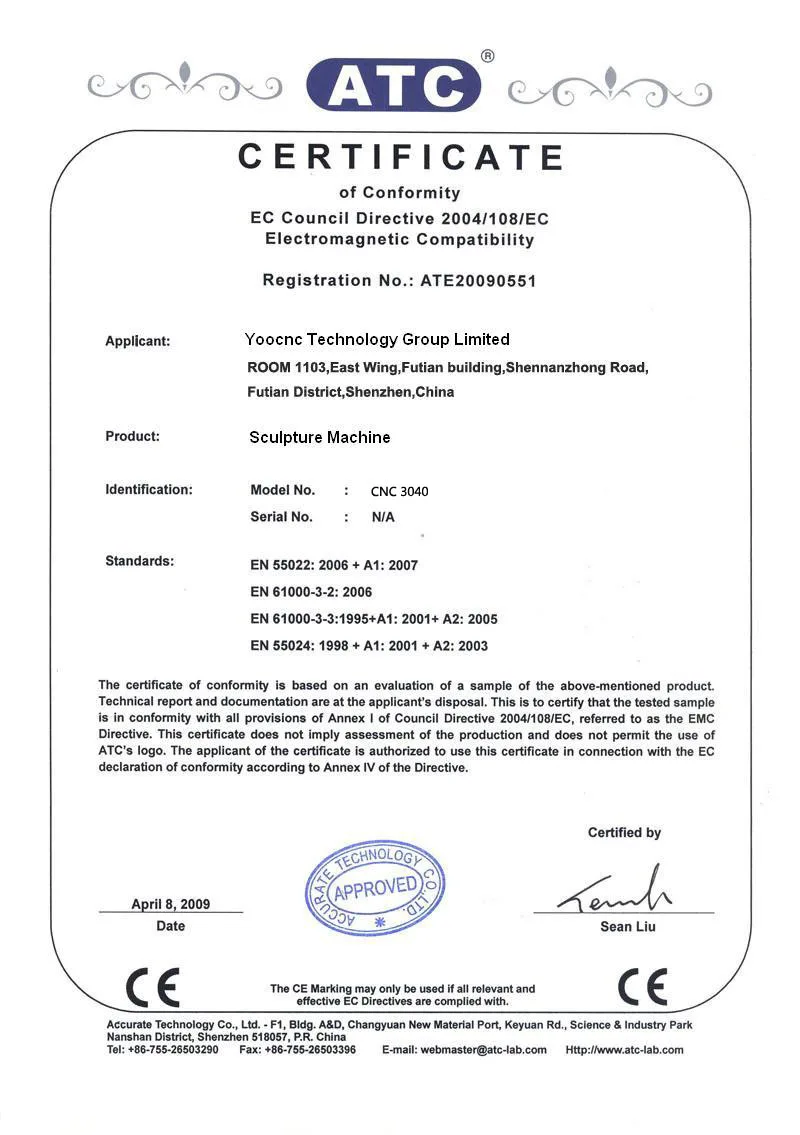

CE approved. Video support. English manual available. Mach 3 software send with the machine as a CD. Can engrave material which hardness below 45.Easy operating:

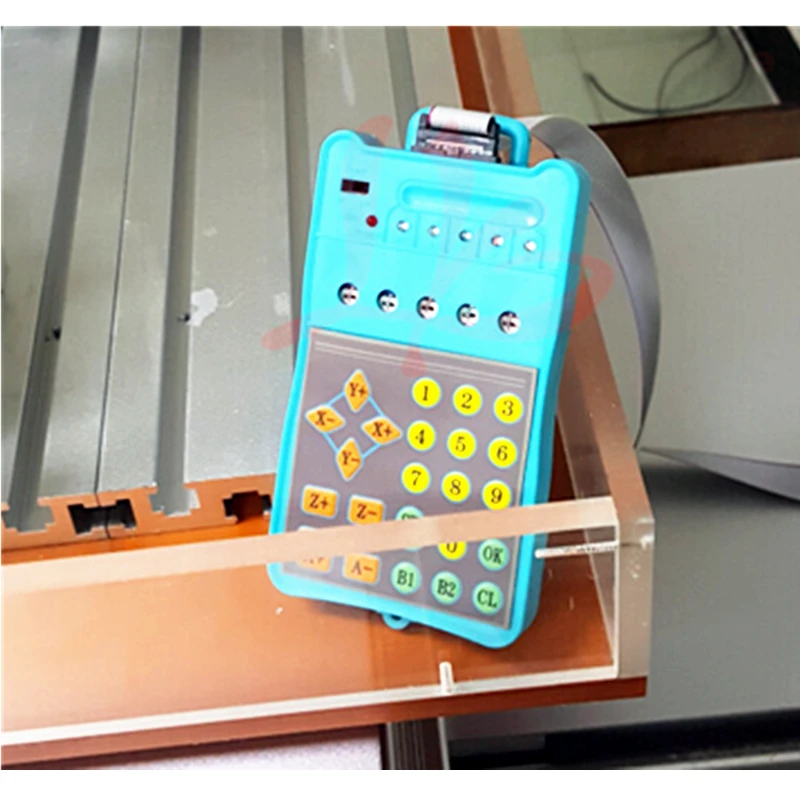

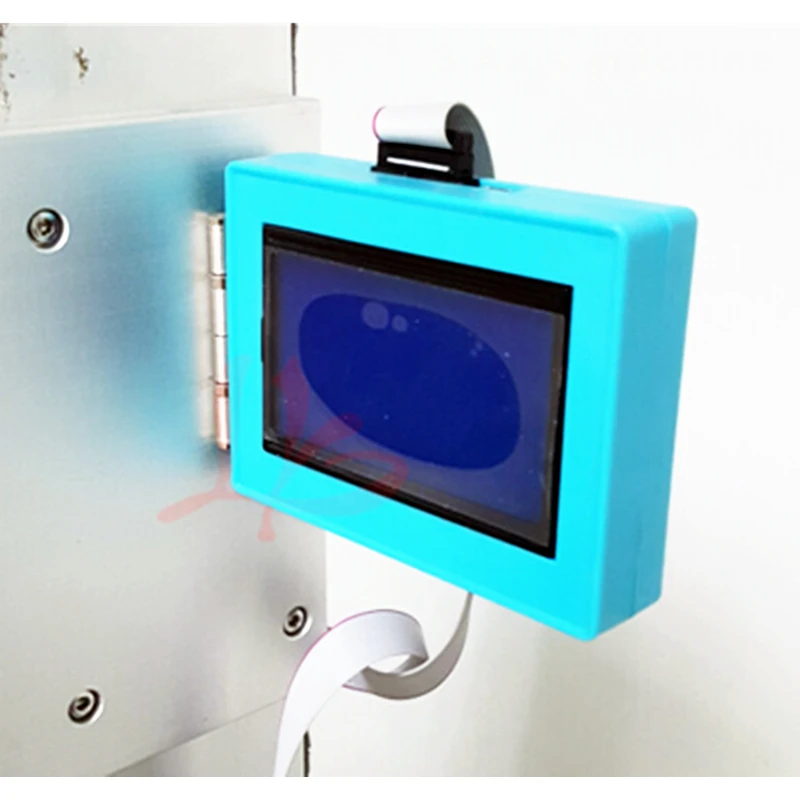

It can work with 3 axis / 4 axis / 5 axis, just as you like ! Integrated high-speed micro computer intelligent control chip. With external digital LCD monitor and handwheel controller. The working process can be tracked, recorded in the digital LCD monitor automatically. Mach 3 software Built in frequencey converter and without controller box.Higher precision because:

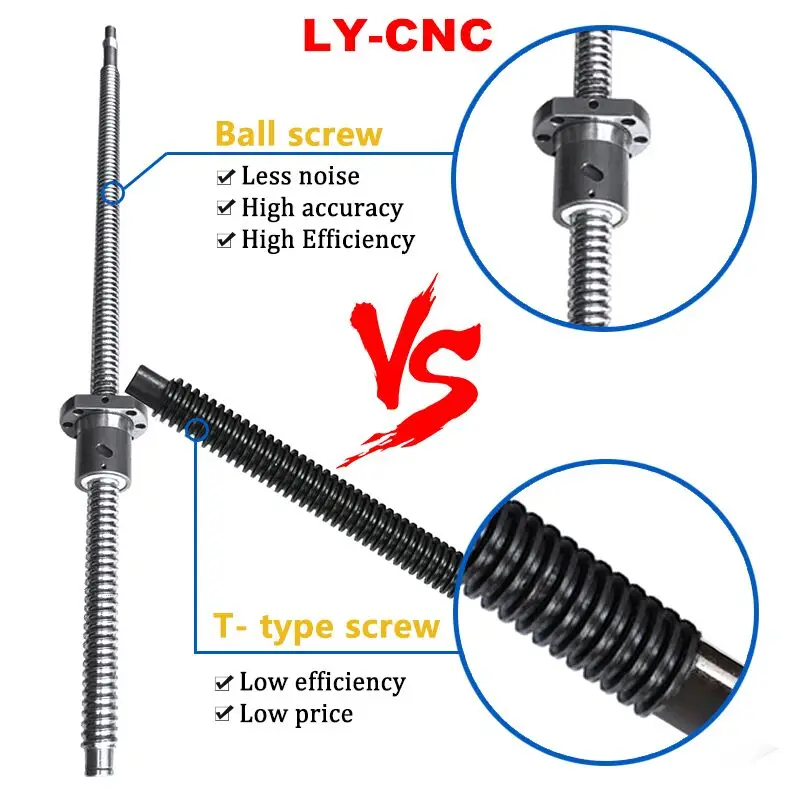

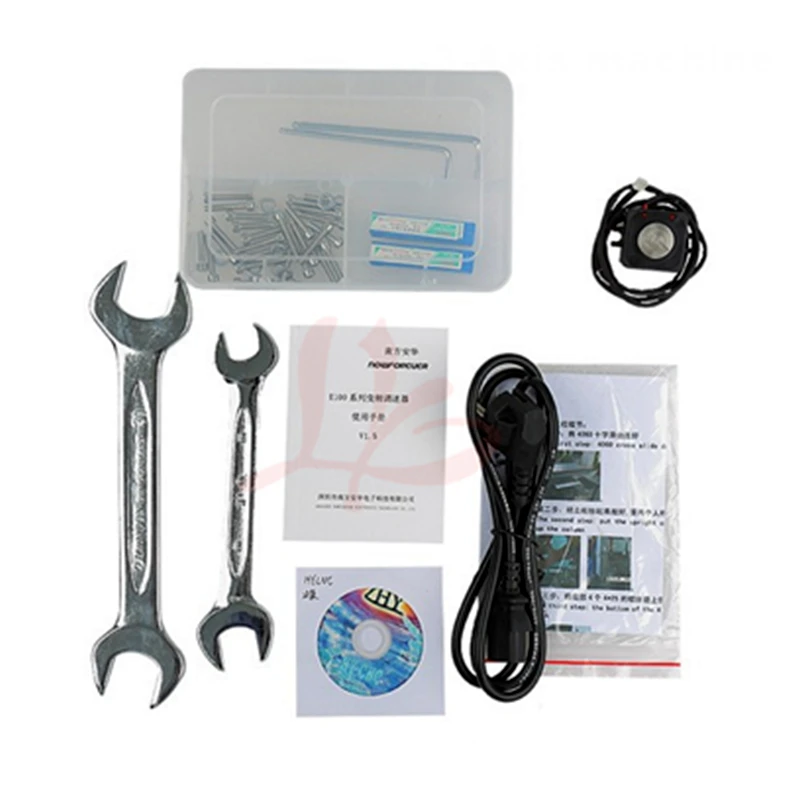

Cross slippery platform design rather than gantry design. Aluminum base sheet is heavy which can make sure no vibration when work. With auto-checking function. 2200w water-cooled spindle. Ball screw 1605Free Gift :
2 pcs ER20 collet
10 pcs cutters (Which of model do you need ,you can leave your message !)
In general , we will ship 10PCS cutters (3.175*10*0.1 )
10PCS 3.175*10*0.1
10PCS 3.175*10*0.2
10PCS 3.175*10*0.3
10PCS 3.175*20*0.1
10PCS 3.175*20*0.2
10PCS 3.175*20*0.3
10PCS 3.175*20*0.4
10PCS 3.175*20*0.5
10PCS 3.175*20*0.6
10PCS 3.175*20*0.8
10PCS 3.175*30*0.1
10PCS 3.175*30*0.2
10PCS 3.175*30*0.3
10PCS 3.175*30*0.4
10PCS 3.175*30*0.5
10PCS 3.175*30*0.6
10PCS 3.175*30*0.8
10PCS 3.175*30*1.0

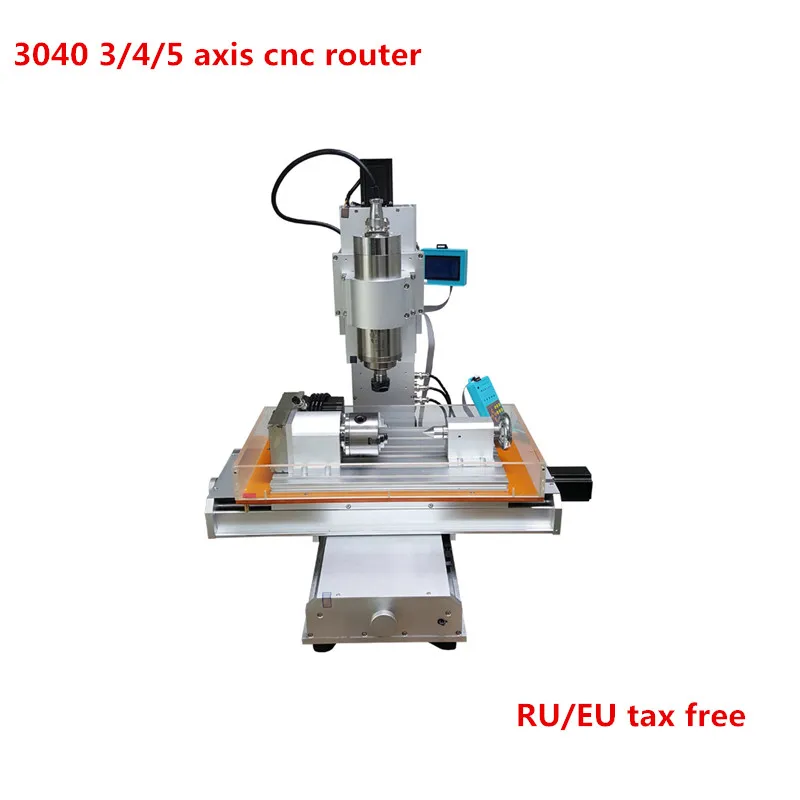

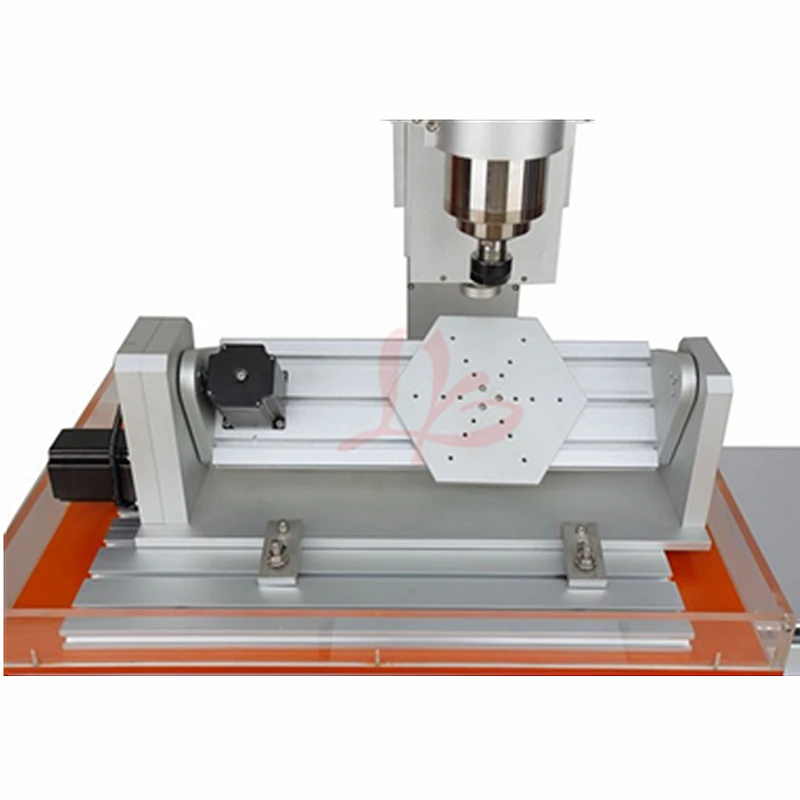

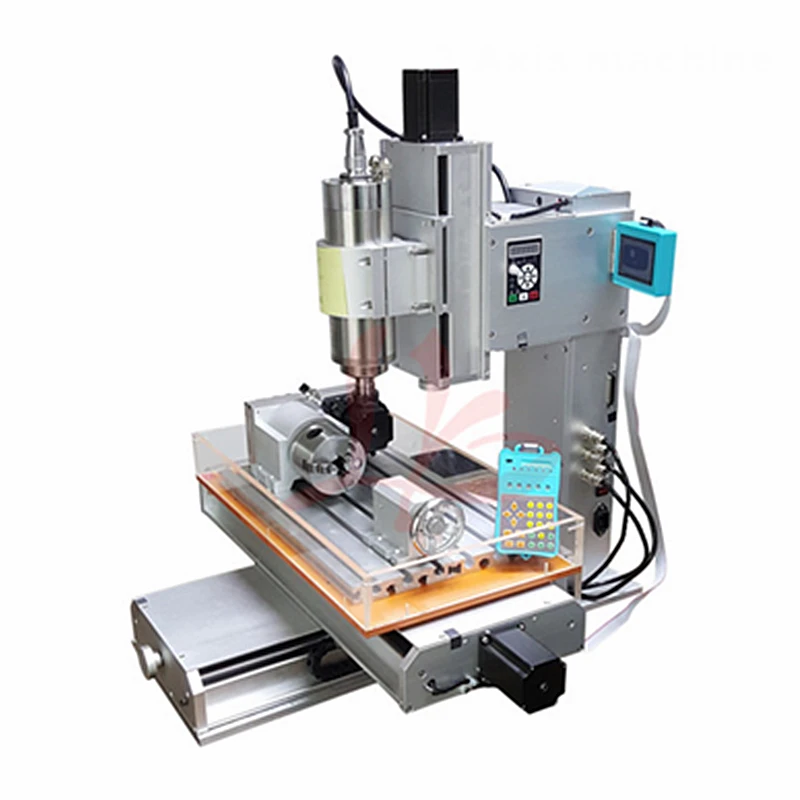

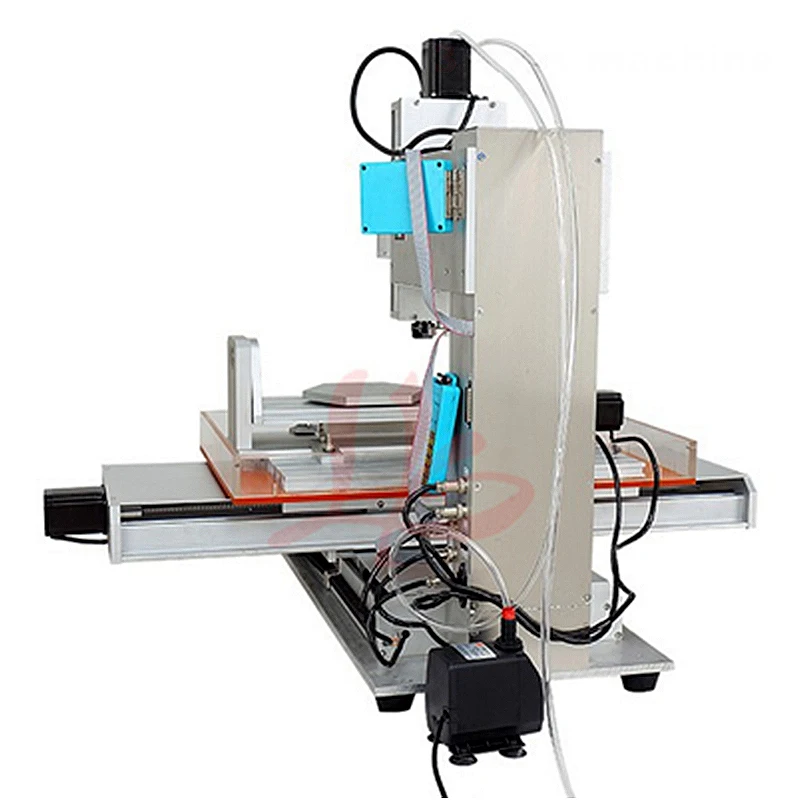

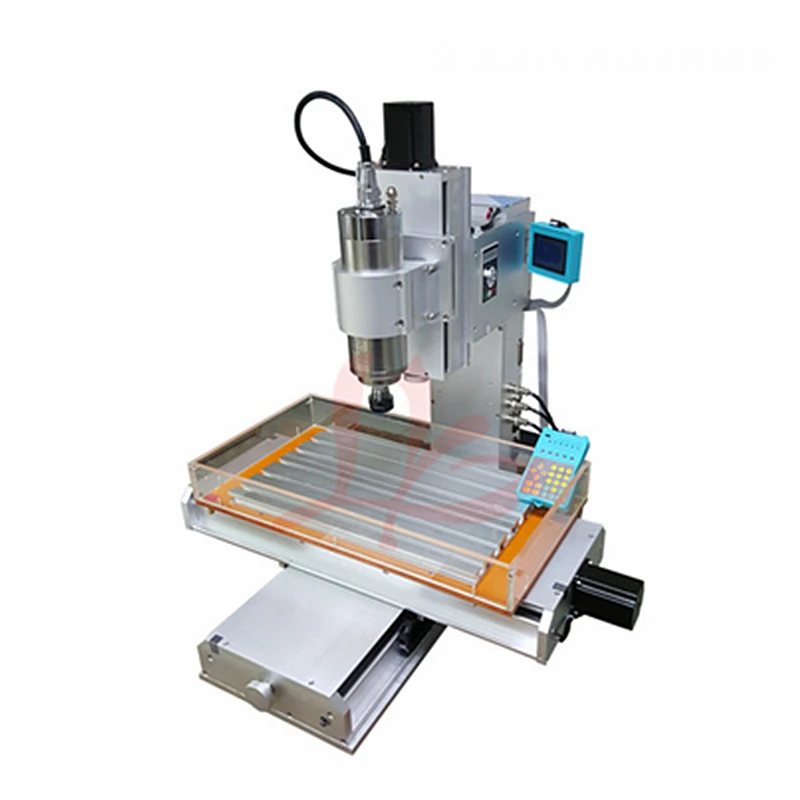

CNC Engraving Machine Picture:
