Характеристики

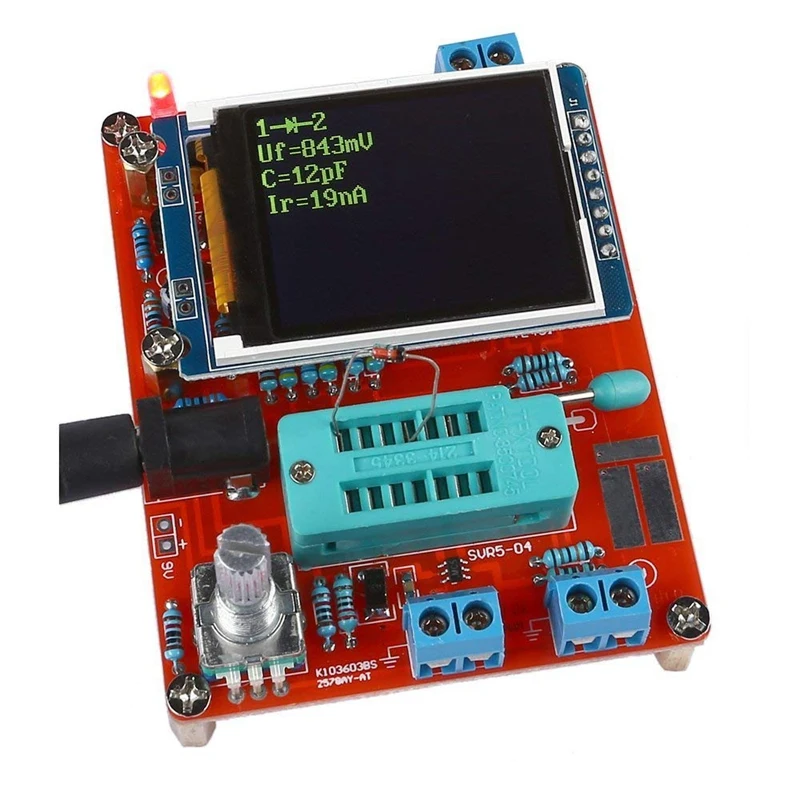

Multifunctional Lcd Gm328 Transistor Tester Diode Capacitance Esr Voltage Frequency Meter Pwm Square Wave Signal Generator | Компьютеры и
Описание товара

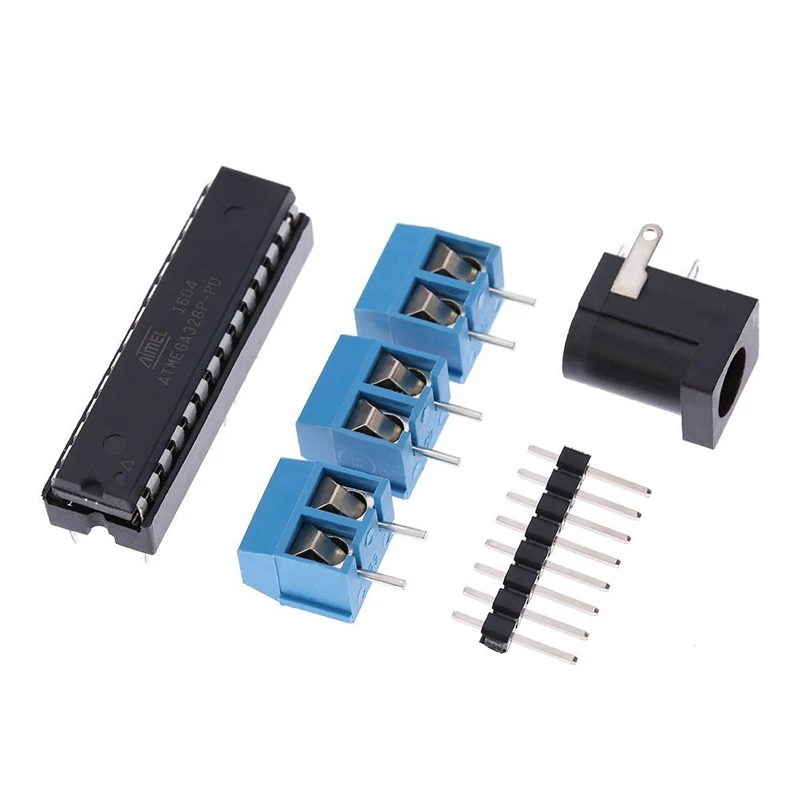

Main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip.Use 9V battery(not included), can also use DC power(DC 6.8-12V).Automatic shutdown, shutdown current is only about 20nA.Rotary switch control, a key measurement for convenient use.
Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout.Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector - emitter leakage current.
Support 2 resistors measurement, show its positive and negative, on-state voltage.Resistance measurement maximum resolution 0.01Ω, can be measured up to 50MΩ.
Measure FET gate threshold voltage and gate capacitance.Automatically test the pins of a component and show on the display.Digital LCD display for easy readings, can display measured data and image.

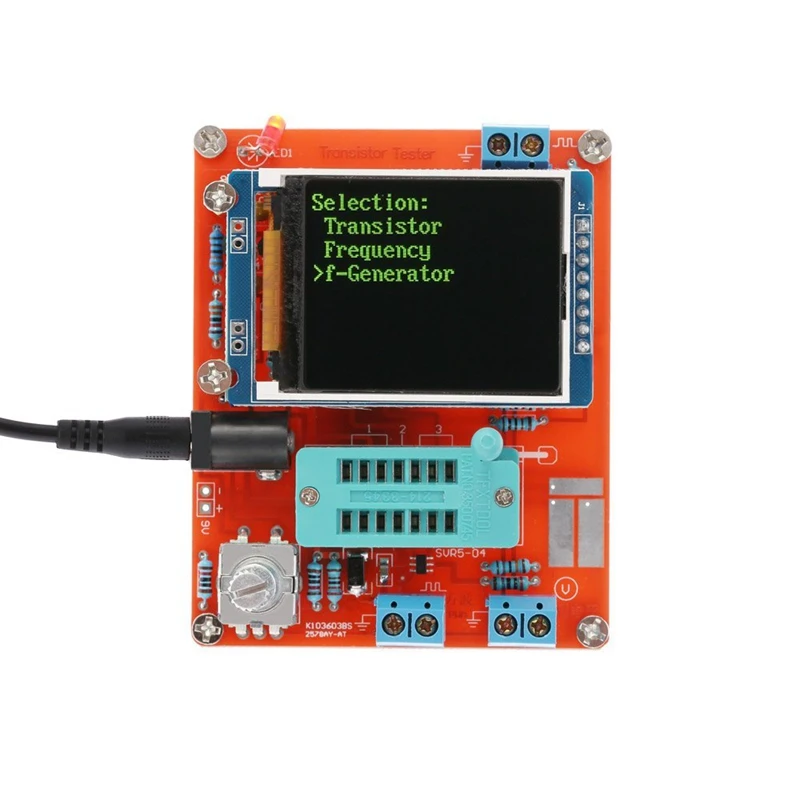

For the following 2100Ω resistor while measuring its inductance measuring range from 0.01mH - 20H.Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse width modulation) signals.

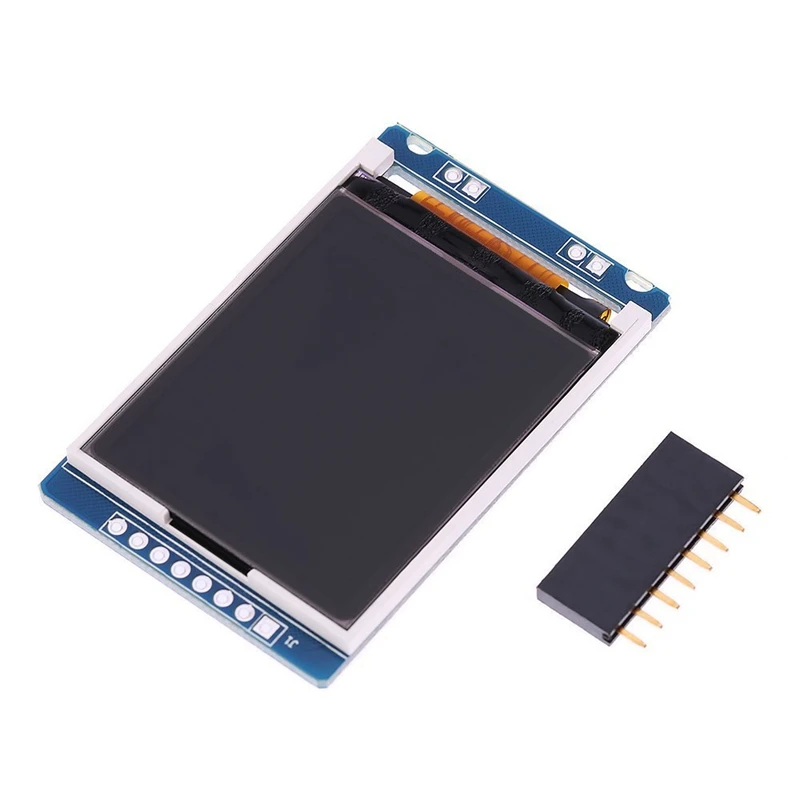

Display: 160*128 LCD
Current: Approx. 30mA
Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
DC Voltage Measurement: Up to 50V
Notice:
Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.

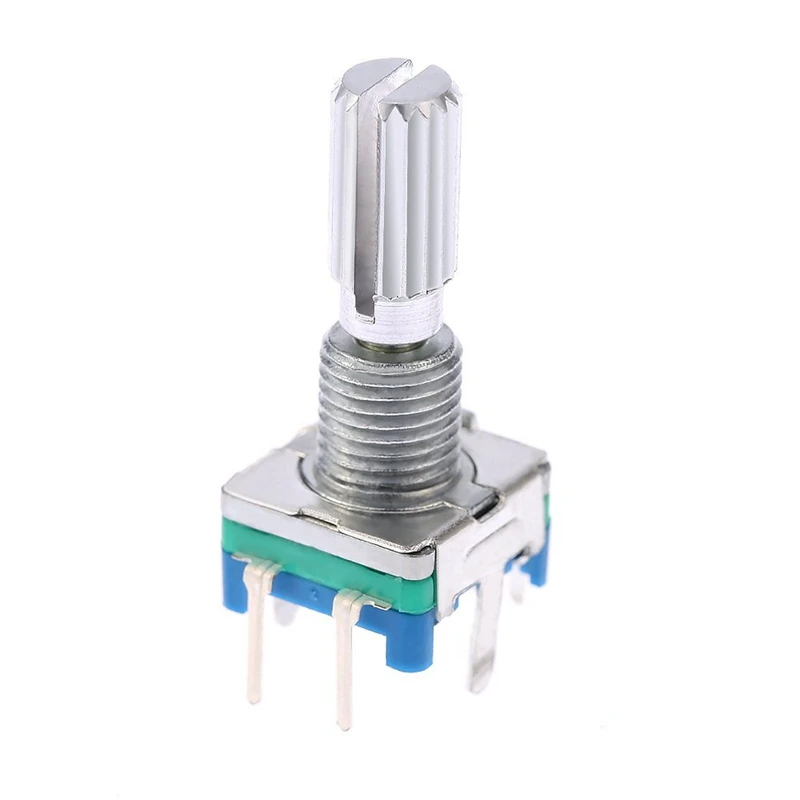

Rotary switch control, a key measurement for convenient use.
Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector - emitter leakage current.
Digital LCD display for easy readings, can display measured data and image.
Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse widthmodulation) signals.
Size:
Screen Size: 3.7 * 3cm / 1.45 * 1.18in
PCB Size: 7.8 * 6.2cm / 3.1 * 2.44in
Product Weight: 66g / 2.3oz
colour:as shown
Material:PCB board
Package Contents:

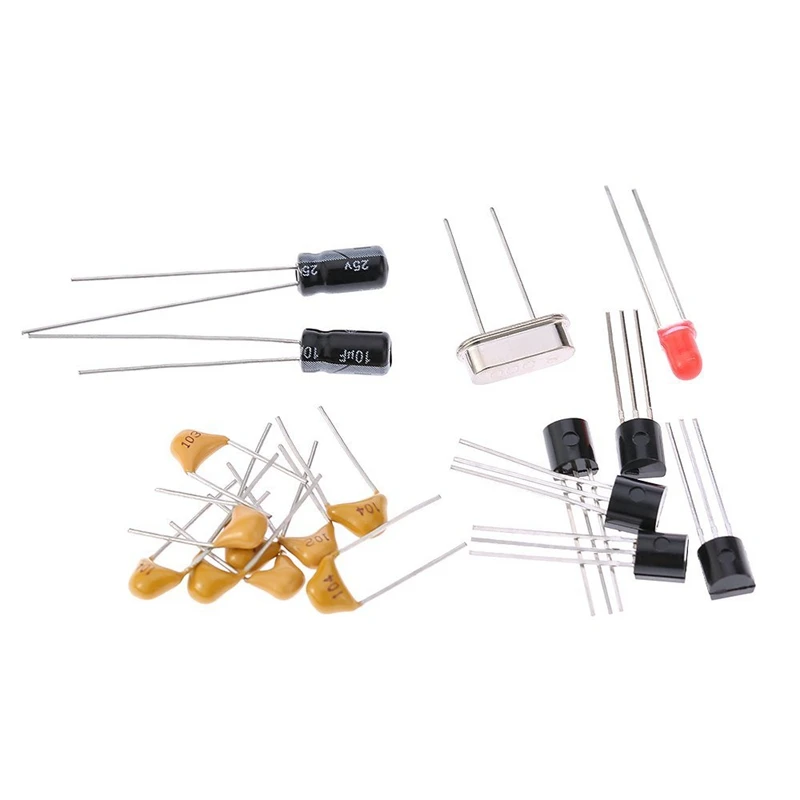

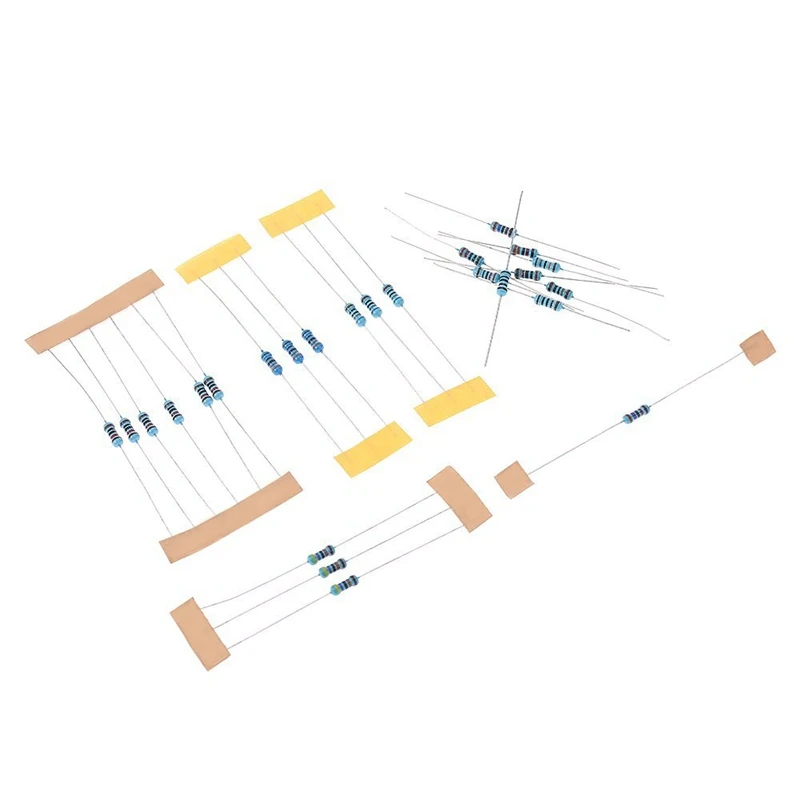

1 * Transistor Tester DIY Kit
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
