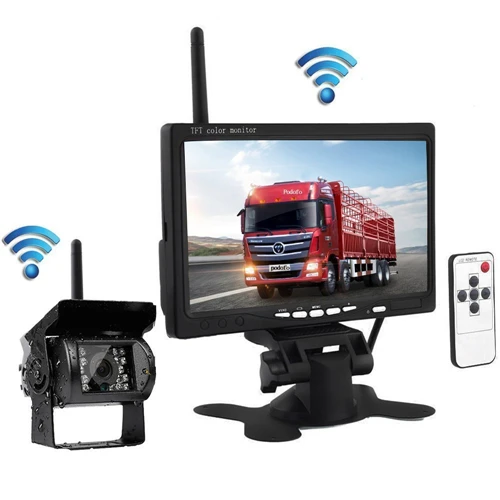

Podofo Wireless Truck Vehicle Backup Camera 7 inch HD Car Monitor IR Night Vision Parking Assistance Waterproof Rear View |

Podofo Wireless Truck Vehicle Backup Camera 7 inch HD Car Monitor IR Night Vision Parking Assistance Waterproof Rear View |

Description:

1.7-Inch HD TFT LCD Widescreen Monitor with Built-in 2.4GHz Wireless Receiver

2. Rearview Night Vision IR Waterproof Backup Reverse Camera with Built-in 2.4GHz Wireless Transmitter --Auto Water-Proof Camera Lens, with 18 individual Infrared (IR) LED. Effective range: 15m.  It help your view still clearly at night or in bad weather.
3. With 2 Video Input--The video 1 can used to reverse and the video 2 can used to watch DVD / VCD / TV / GPS .

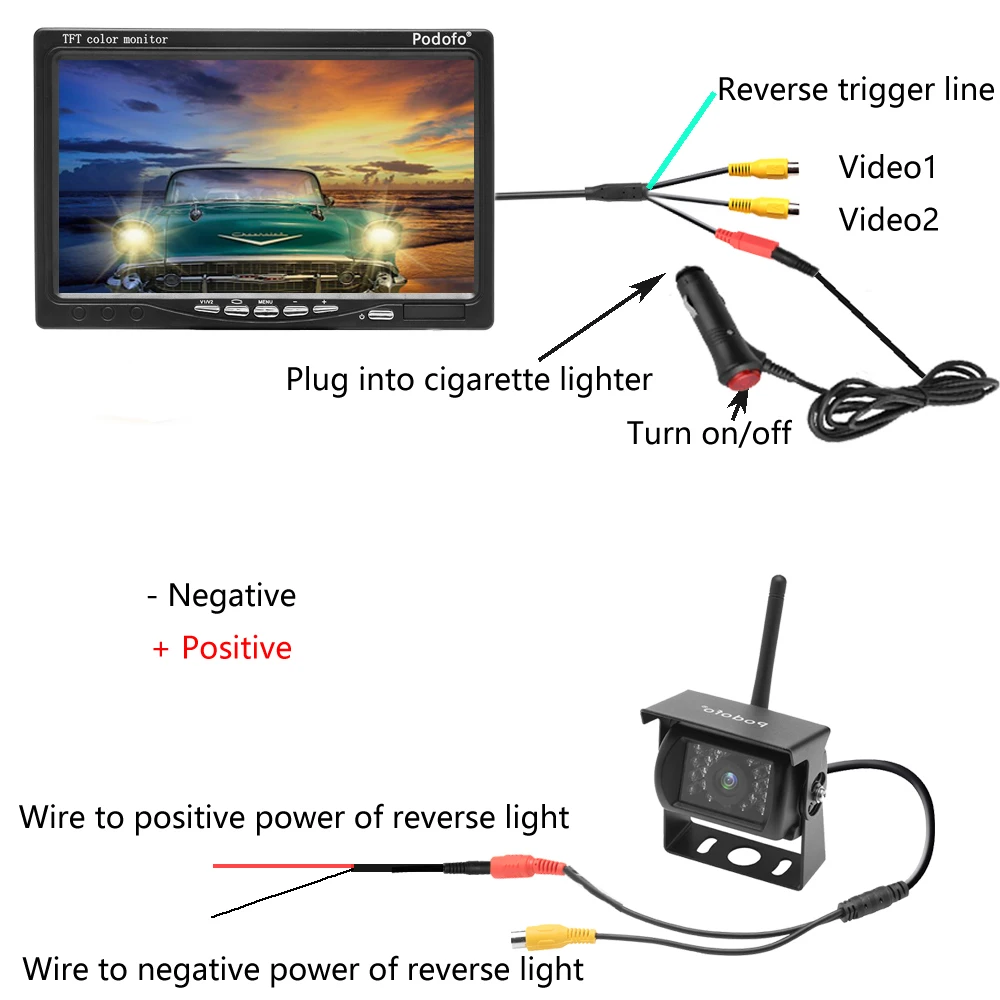

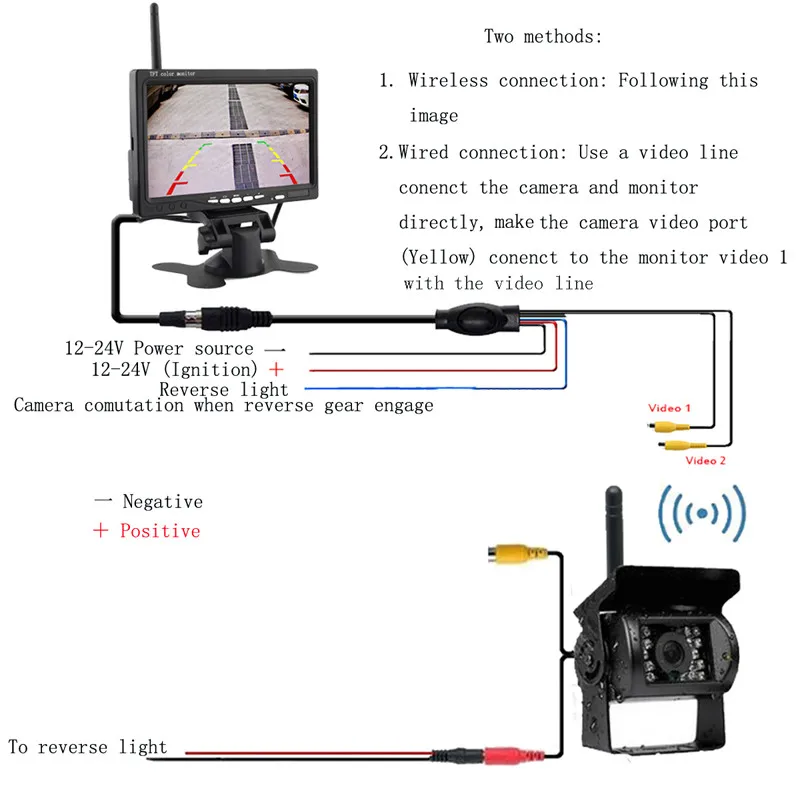

4. Easy to install--Wireless parking assistance; The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing your car.
5. IP 67 waterproof grade can cope with marine environment. Hard Metal Cased Camera ,Waterproof and Mud proof. It can last for longer without heating up, so you can show the rearview all time.

Specification:
2.4GHz analog wireless 7-inch monitor
Operating Frequency: 2400-2483.5 Mhz Standard: 2370Mhz
Transmission distance: 50 meters
Compression format: MPEG 4 video
Transmit frequency:18 dBm
Transmission speed:12 Mbps
FHSS: Frequency Hopping Spread Spectrum
Hopping rate:1200 / S
Screen size: 7-inch 16:9
Resolution: 800RGB x480 dots
TV System: PAL / NTSC
Operating voltage: 12V / 24V DC
Power: ≤8.64W
Operating temperature: -10  degree to + 65 degree

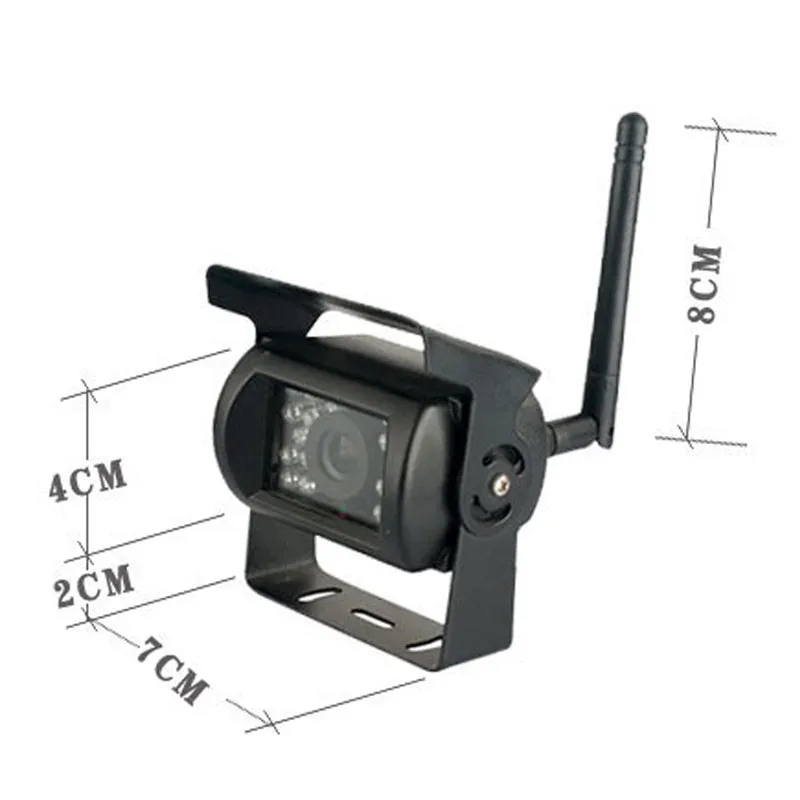

2.4GHz analog wireless camera
Standard NTSC: 510 * 492 pixels, PAL: 510 * 582 pixels
Resolution: 420 TVL
Lens: 2.5mm
Minimum illumination: 0Lux (LED ON)
Infrared light: 18pcs
Night vision distance:15 meters
Waterproof: IP67
View angle:120 °
Operating voltage: 12 / 24V DC
Operating temperature: -20 ° C ~ + 70 ° C
Shell material: Aluminum
Mount material: Metal

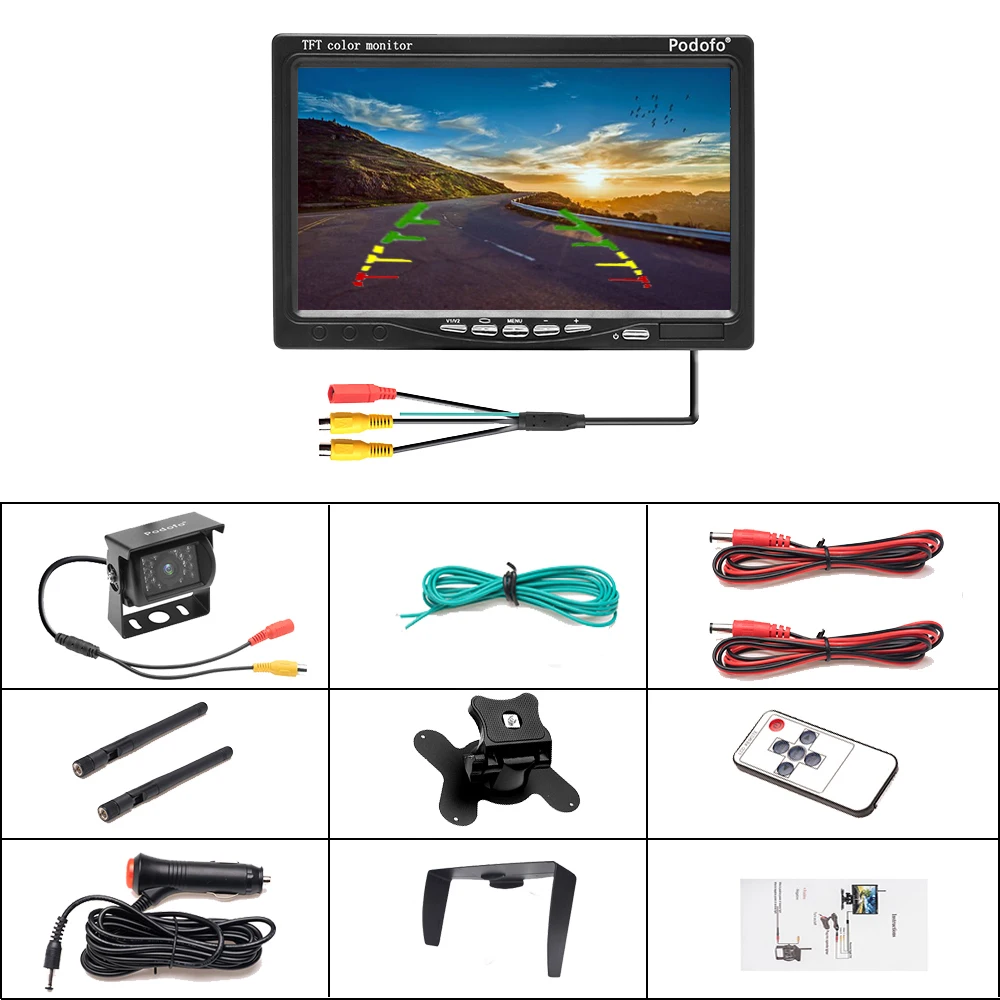

Package Included:
1 x 7 inch Car Monitor
1 x Car back up Camera
2 x Antennas
2 x Power Cable
1 x Remote Controller
1 x Mount Bracket
1 x User Manual

FAQ on Wireless Backup Camera

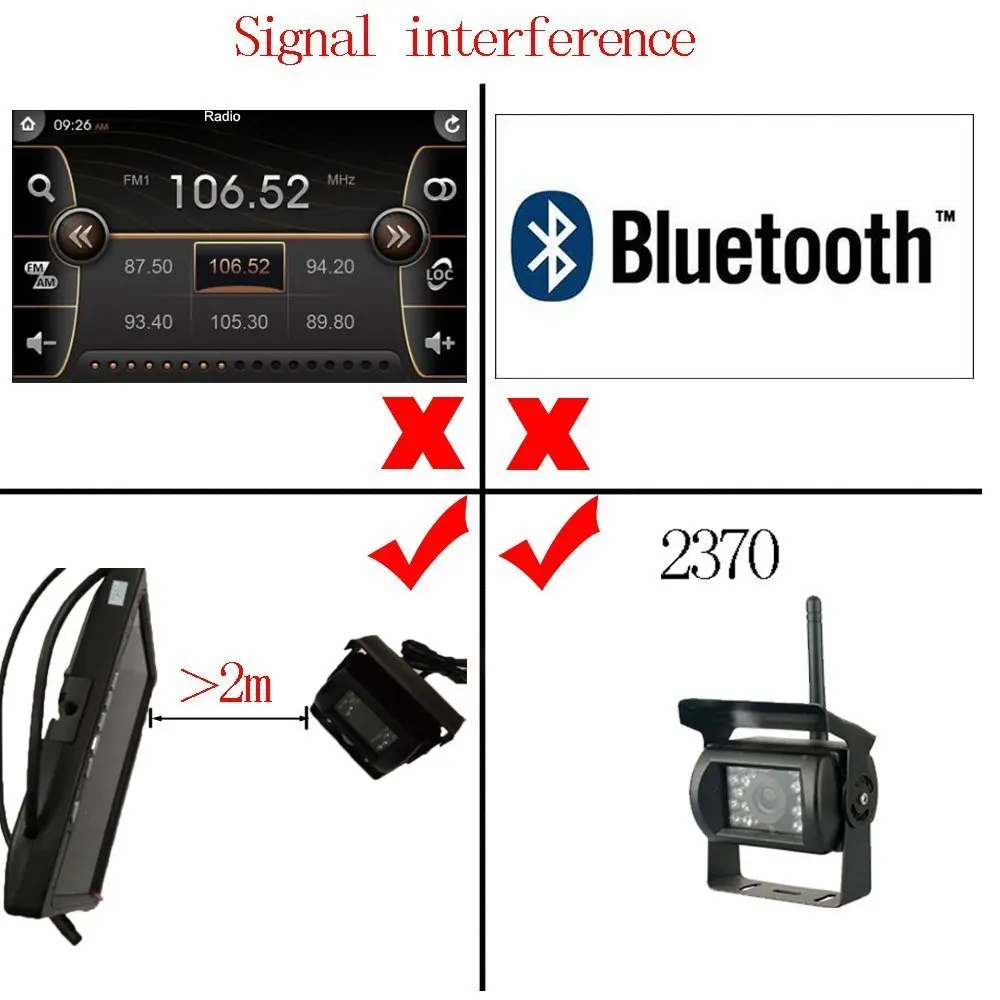

A: 1. Please turn off FM radio, bluetooth, wifi or other electronic product to avoid the signal interference.
2. Please press the 1st button on monitor or press Video Select on Romote to AV2 which works for wireless camera.
3. Please switch the channel of camera: 2370 by pressing the 2nd button on Monitor or pressing Model Select on Remote.
4. For maximum signal point the antennas towards each other.
5. Keep monitor and camera about 2 meters' distance, or camera and monitor will interfere with each other.

A: Kindly noted that this camera is IR camera with infrared sensors.  The LED light will turn red when insufficient light or in the dark.

Q: How can I get it work full time as a security monitor?
