24V 4000W Pure sine wave Combined Inverter & Charger 12KW Surge Power DC24/48V to AC220V 50HZ UPS with AC | Обустройство дома

4000W/4KW Pure sine wave Combined Inverter & Charger 8KW Surge Power DC24/48V to AC220V,50HZ UPS Inverter with AC Charger

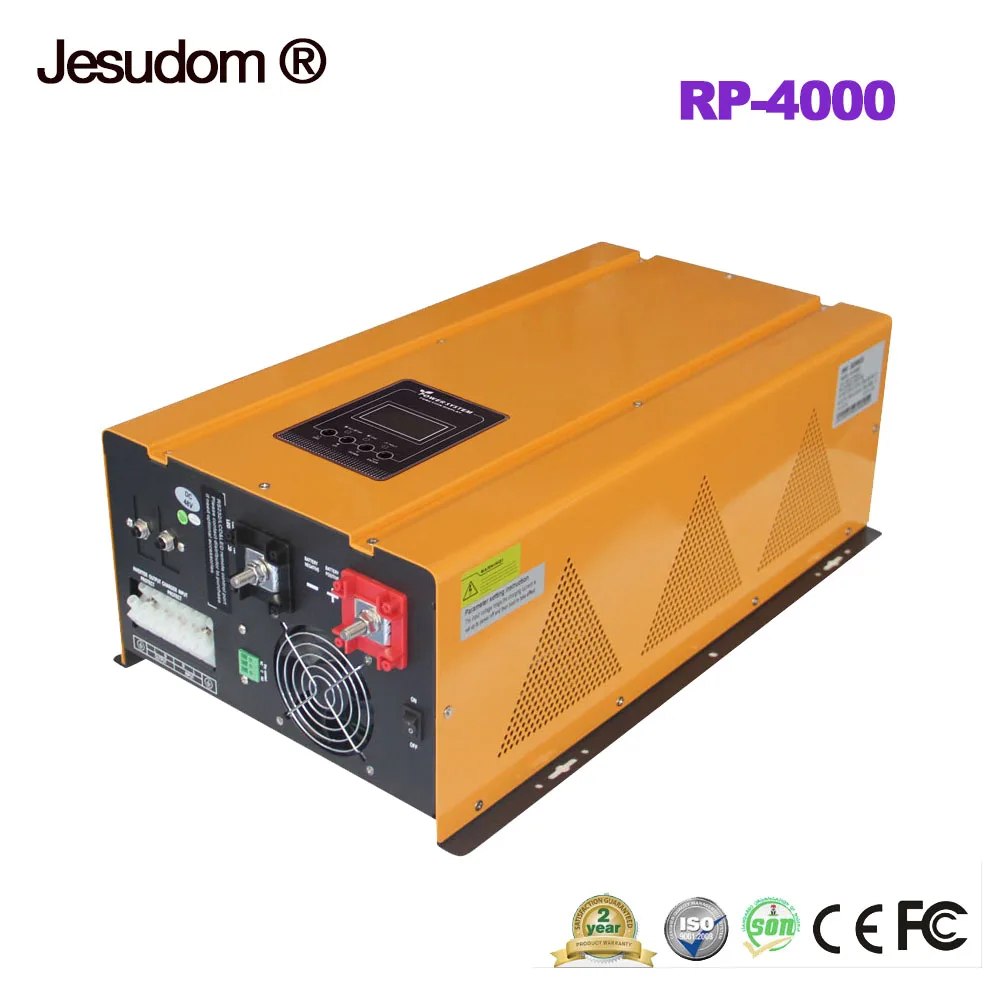

RP series inverter:

1-2KW is EI transformer,

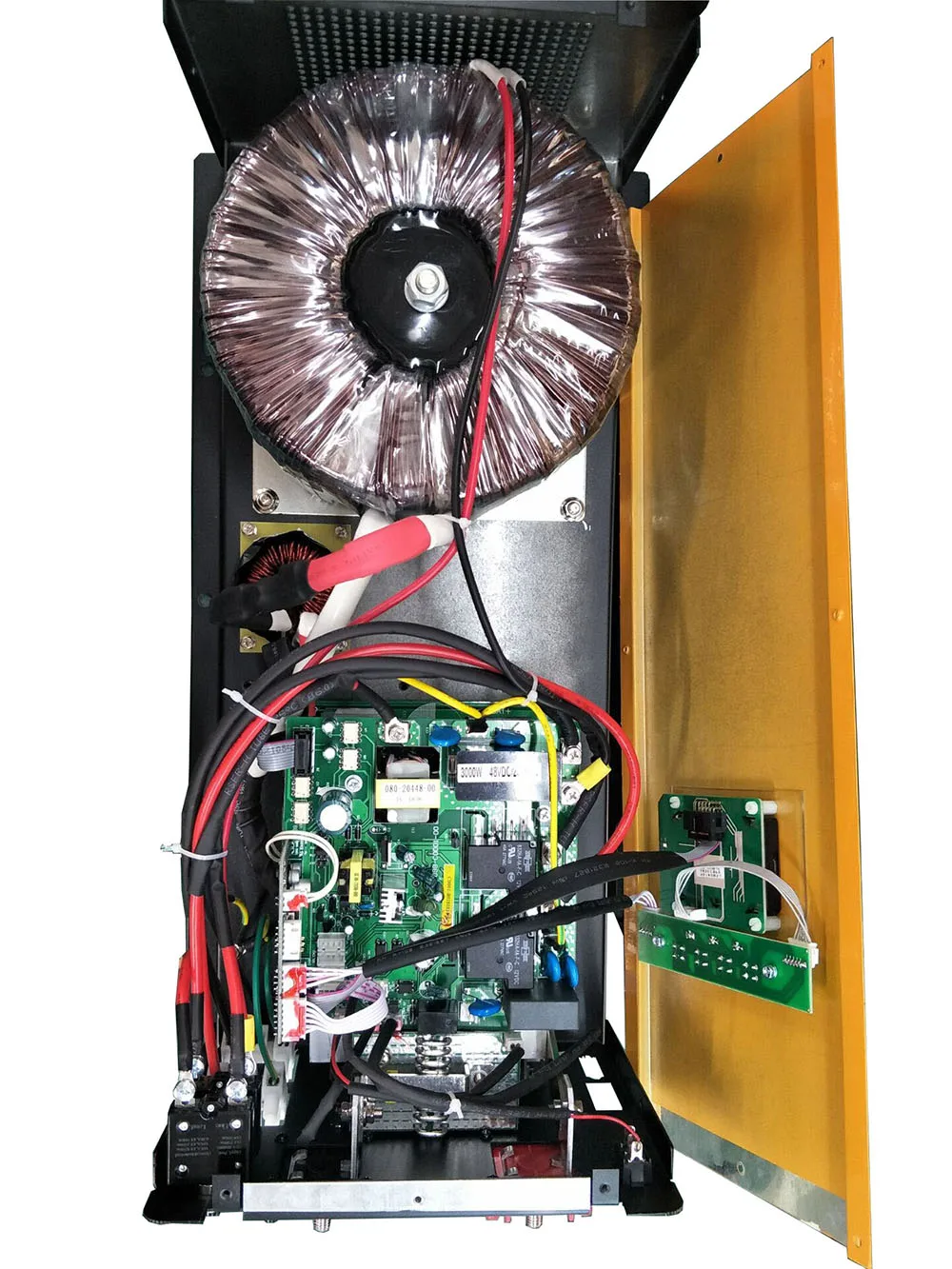

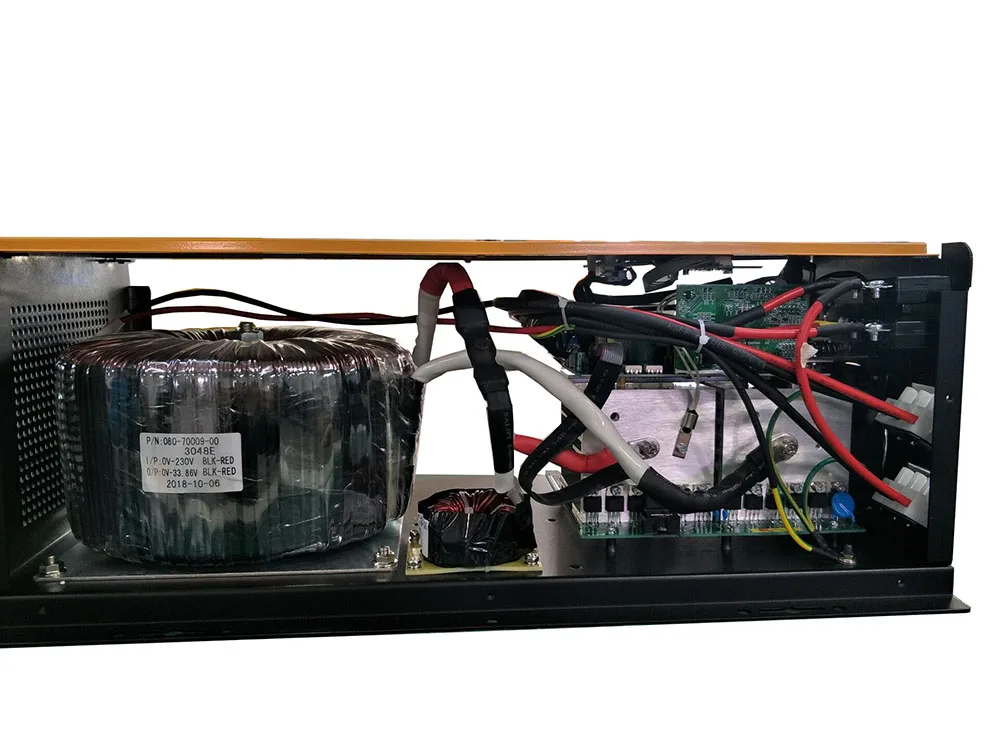

3-6KW is toroidal transformer,

8-12KW is U type transformer.

Because of this configuration, the loss is smaller.

Output voltage 220V ~ 240V automatic identification; Automatic identification of output frequency 50HZ60HZ; LCD display screen, rich and intuitive display content.   If you want a remote control,please pay this link. Notes: 1KW and 2KW haven't remote control.

Instruction to working mode:

Inversion priority mode (1)In case of normal battery voltage, the inverter operates under inversion mode and load power is supplied by battery inversion ; (2)the system automatically switches to battery-powered mode if the battery is fully charged by solar energy or wind Energy through controller. (3)the battery can also be charged when inverter operates under electric supply mode, which is determined by mode Setting of charging current. the charging current can be 0A if charging is unnecessary   Electric supply priority mode (1)In case the load is powered by electric supply, the electric supply has to pass input protection device, And filter before supplying power to load in order to ensure power stability. it can be also charge the battery(determined By charging mode) (2)in case of outage or abnormity of electric supply ,the system automatically switches to battery-powered mode (3)in case electric supply is normal ,the system automatically switches to electric supply mode to supply power to load   Product Features 1. Pure sine wave inverter 2. Configurable input voltage range for home appliances and personal computers via LCD setting 3.Configurable battery charging current based on applications via LCD setting 4. LCD and LED Display 5. Over temperature auto restart 6. Overload/ Over temperature/ short circuit protection   Technical parameter：



Model

4024E

4048E

Rated Ouput Power

4000W

4000W

Transfer Time

10ms typical

Inverter Mode

Nominal output voltage rms

120/230VAC(100~120VAC 5VGear setting;200~240VAC 10V Gear setting)

Output frequency

50HZ±0.3HZ or 60HZ±0.3HZ

Output wave form

Pure sine wave

Output overload

105%>Load <120%±10%:Fault(turn off output after 10 seconds); 120%>Load <150%±10%:Fault(turn off output after 3 seconds)                                                                                                            150%>Load±10%:Fault(turn off output after 1 seconds)

Short circuit protection

Software protection

Nominal efficiency

>88%

Power factor

0.9-1

Line mode

Input voltage range

Narrow range:Nominal output voltage±15%

Wide range:Nominal output voltage +15%,-23%

Input frequency

40Hz-70Hz

Input wave form

Sine wave (Utility or generator)

Short circuit protection

Circuit breaker

Output overload

120%>Load <150%±10%:fault(turn off output after 60 seconds);150%>Load±10%:fault(turn off output after 1 seconds)

Over charge protection shutdown

16.0 for 12Vdc/*2 for 24V/* 4 for 48V

Efficiency online transfer mode

>95%

AC charge

35A Charge current can be set(5A UP/DOWN setting,for specific parameters,please refer to Appendix)

Selection of battery charging voltage type

Battery type

Fast V

Float V

Gel U.S.A

14

13.7

A.G.M 1

14.1

13.4

A.G.M 2

14.6

13.7

Sealed lead acid

14.4

13.6

Gel Euro

14.4

13.8

Open Lead Acid

14.8

13.3

Calcium

15.1

13.6

De sulphation

15.5 for 4 hrs then off

Li

14.7

Other

User-defined

Battery

Nominal DC Input Voltage

24V

48V

Battery voltage range

12V(10Vdc~16Vdc)±0.3Vdc/*2 for 24V

Low DC Warning voltage

12V(10.5Vdc±0.3Vdc)/*2 for 24V

Low DC Cut-off Voltage

12V(10Vdc±0.3Vdc)/*2 for 24V

Others

Operating Temperature Range

0~40℃

Humidity

0%~95%

Noise

<50dB

Dimension(D*W*H)mm

574*345*197

Gross weight

38.1KG

* Product specifications are subject to change without further notice.
