Character:

1)      720P/960P/1080P Optional

2)      ONVIF protocols: Support 2.0 Version

3)      With IR-CUT, support day/night switch

4)      1.0/1.3/2.0 megapixels

5)     2.8mm lens Default/3.6mm 6mm 8mm Optional

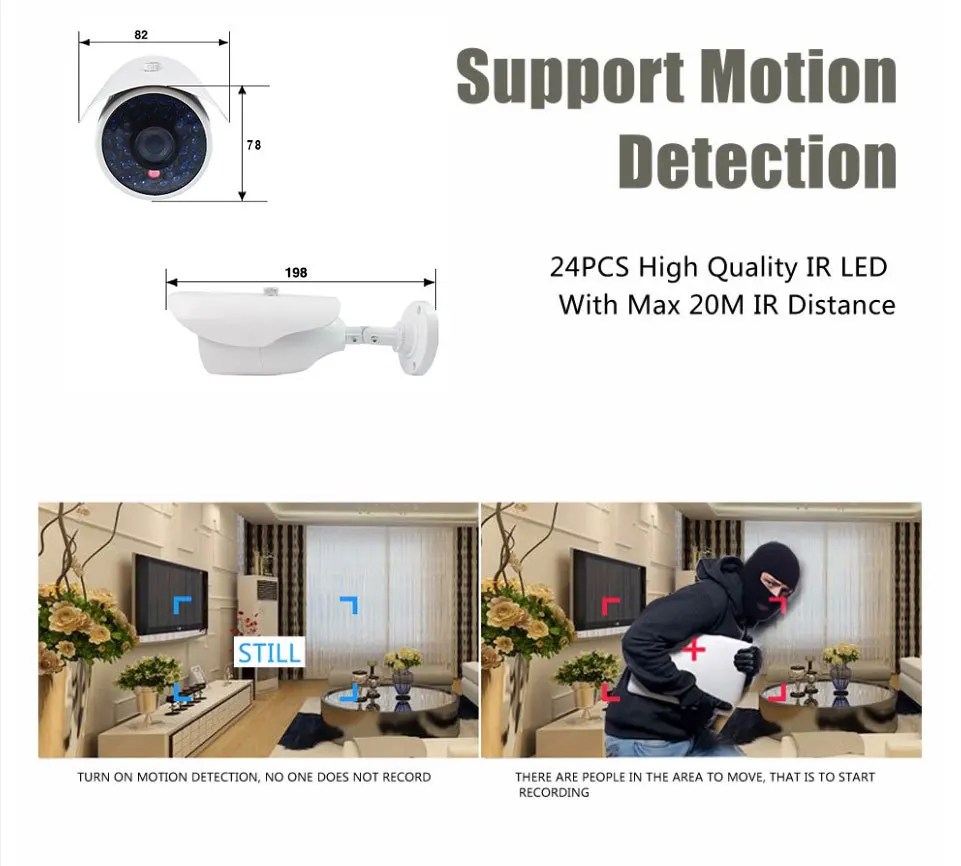

7)      24pcs F5 leds, 20m ir distance for night vision

8)      Multi-screen software and CMS

9)      Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)

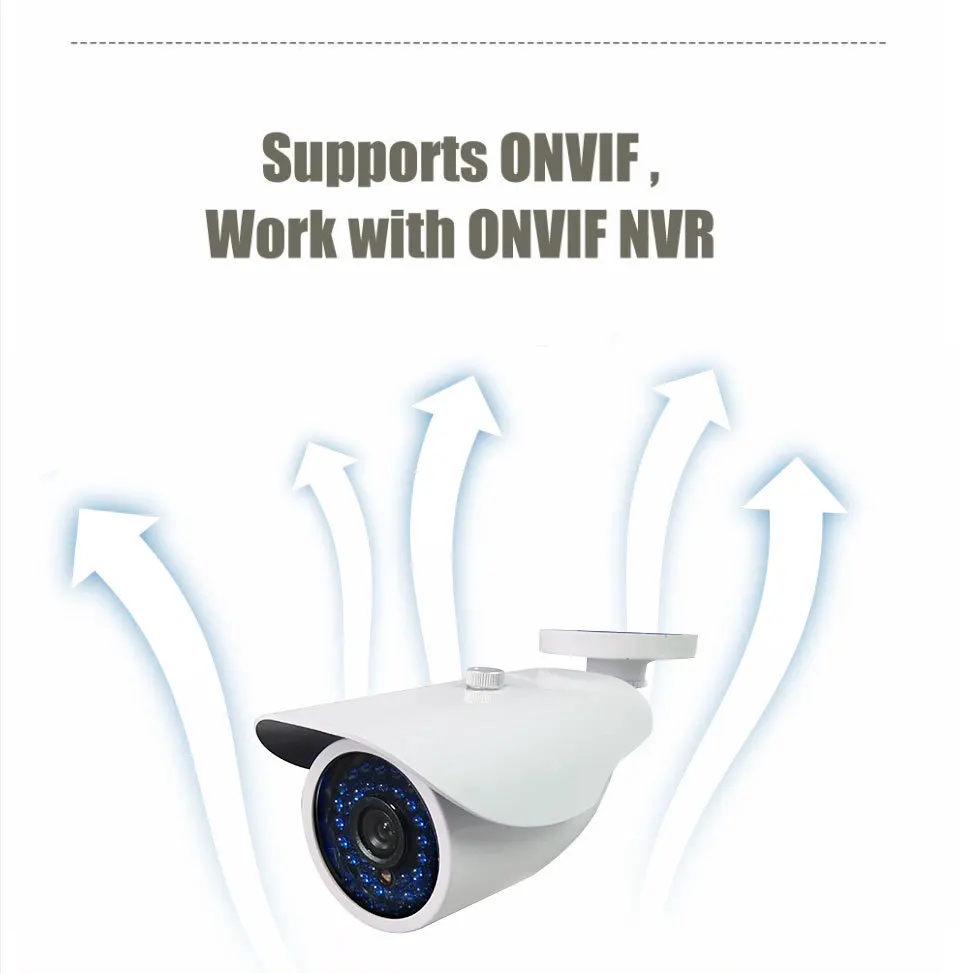

10)   Support motion detection, ONVIF

11)   Support visit by smart phone

1/4'' = 720P =1.0mp

1/3'' =960P=1.3MP

1/2.8'' = 1080P =2.0MP

Tech. Parameter:

• Title OSD: Supports channel name, date, and video stream information overlay;

• Privacy Mask: 4 configurable regions

• Image Orientation: image flip and mirror

• Auto Exposure Control (AEC); Auto White Balance (AWB); Auto Band Filter (ABF)

• Auto Black Level Calibration (ABLC)

• Network protocol: TCP/IP UDP RTP RTSP RTCP HTTP DNS DDNS DHCP FTP NTP PPPOE SMTP UPNP

• ONVIF protocols: Support 2.0 Version

• Remote View: IE 6.0 or later, Firefox, chrome

• Network Interface: 10/100M BASE-TX,RJ-45 connector

General Specifications:

• Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F)

• Operating Humidity: 0% -85% RH

• Power:    48V PoE or 12V DC

Note :

PoE module built in,not included power supply.

You need the PoE Switches /POE NVR /or injector 48V. to make it work ,(

48V PoE Switch/POE NVR ,15.4 W Output Each Port ,Support IEEE 802.3af).

POE


FAQ :

Q:What’s the default ip address of the camera ?

F: 192.168.1.10 Username : admin  Password : null ( empty ) !

Q: Does the camera supports Motion Detect,FTP,Email alarm, RTSP and so on ?

F: Yes ! All the IP Cameras we are selling supports these functions .

1) Please Setup the motion detection in the CMS software .

2) We suggest the Sever-U and FileZilla FTP Server to upload the  image.

3) For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .

4) ,RTSP URL for VLC media Player :

rtsp://$(IP):$(PORT)/user=$(USER)&password=$(PWD)&channel=$(Channel)&stream=$(Stream).sdp?real_stream

Example : rtsp://10.6.10.25:554/user=admin&password=&channel=1&stream=0.sdp?real_stream

F: What’re the ports information of the cameras ?

Q : ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567

F:Does the camera support IE ,Chrome ,Firefox and so on ?

Q: Since the plug-in problem ,for website interface IP address URL,ONLY IE supports Multi Language . Chrome,Safari just support Chinese .

For cloud server XMEYE.NET ,it supports multi language

Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “  even I can see the default ip address 192.168.1.10 in the menu .

F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.

Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !

For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .

1 * IP POE Camera

1 * CD
