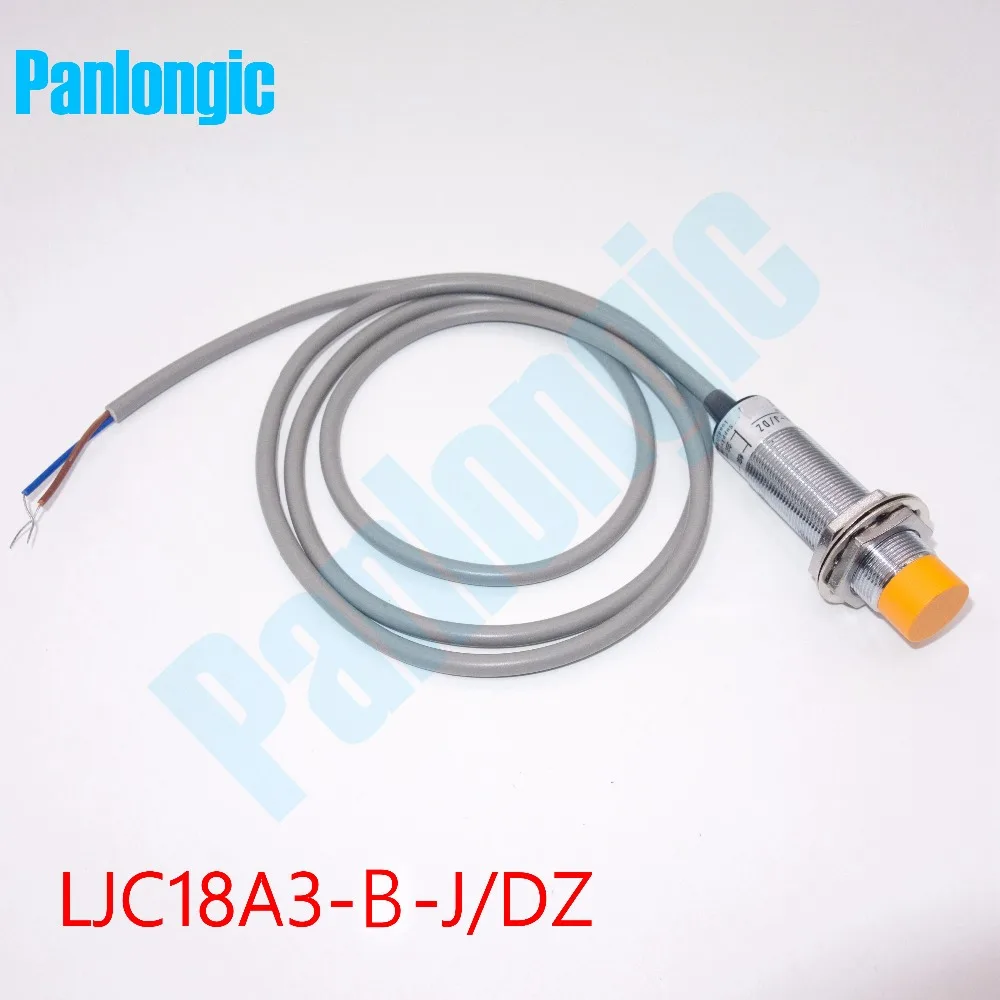

Panlongic High Quality LJC18A3-B-J/DZ Capacitance Proximity Sensor Switch AC 90-250V 2-wire NC Normally Close Free Shipping |
Описание товара
Product Feature:
New LJC18A3-B-J/DZ Capacitance Proximity Sensor Switch 2-wire NC AC90-250V 18mm Diameter.
It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching
When proximity switch is close to some target object, it will send out control signal.
Feature:
Power supply reversal connection protection , short-circuit protection , can directly connect with PLC
Economic and simple operation
Long service life, high reliability and strong resistance property to environment
Red LED indicates that it’s available to detect the sensor operating state.
IP67 protection structure (IEC specification)
Characteristic parameter:
Type: 2-wire NC
Mounting way: Non-screen shield type
Detection distance: 10mm±10%
Set distance: 0-8mm
Standard detection object : SPCC 50 x 50 x 1 mm
Response frequency: 25 Hz
Delay distance: 10% below of the detection distance
Detection object: Can detect any dielectric
Supply voltage: AC 90-250V
Consumption current: Below 1.7mA
Control output : Below 400 mA
Loop protection: Reversal connection protection, surge absorption, load short-circuit protection
Ambient temperature & humidity: -30~+65 °C, 35~95% RH
Insulation impedance: Above 50 MΩ between charging part and housing
Withstand voltage: AC 1000V 50/60Hz 1min between charging part and housing
Protection structure: IP67 (IEC specification)
Material: Nickel plated brass, ABS
Please check pictures for more details.
Package list:

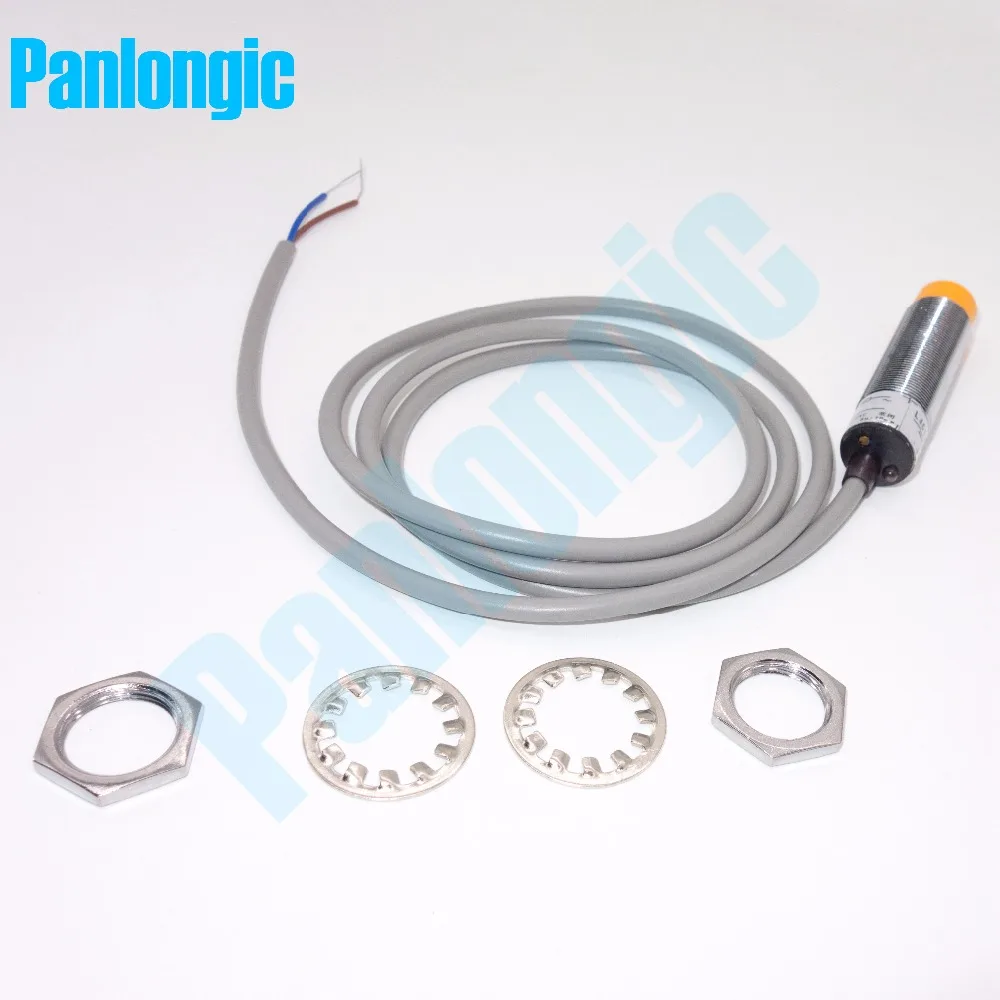

1 x Capacitance Proximity Sensor Switch
More related products please click:
Dimension
M12(LJC12)
M18(LJC18)
M30(LJC30)
Mounting way
Non-screen shield type
Non-screen shield type
Non-screen shield type
Type
DC
N
P
N
NO
LJC12A3-A-Z/BXClick here Buy now >>
LJC18A3-H-Z/BXClick here Buy now >>
LJC30A3-H-Z/BXClick here Buy now >>
NC
LJC12A3-A-Z/AXClick here Buy now >>
LJC18A3-H-Z/AXClick here Buy now >>
LJC30A3-H-Z/AXClick here Buy now >>
P
N
P
NO
LJC12A3-A-Z/BYClick here Buy now >>
LJC18A3-H-Z/BYClick here Buy now >>
LJC30A3-H-Z/BYClick here Buy now >>
NC
LJC12A3-A-Z/AYClick here Buy now >>
LJC18A3-H-Z/AYClick here Buy now >>
LJC30A3-H-Z/AYClick here Buy now >>
AC
2-wire
NO
LJC18A3-H-J/EZ
Click here Buy now >>
LJC30A3-H-J/EZClick here Buy now >>
NC
LJC18A3-H-J/DZ
Click here Buy now >>
LJC30A3-H-J/DZClick here Buy now >>
Detection distance
5mm±10%
10mm±10%
25mm±10%
Set distance
0~4mm
0~7mm
0~13mm
Standard detection object(iron)
SPCC 50X50X1mm
Response frequency
DC:0.5kHz ac:25Hz
