Camera
Sensor 1/3”Panasonic CMOS(MN34222PL)
S/N Ratio More than 52Db(AGC off)
Signal System PAL / NTSC (switchable by OSD)
Min. Illumination Color: 0.08 lux ,BW: 0.05 lux ,
Color: 0.017 lux ,BW: 0.0008 lux / Sens-up ON
Shutter Speed AUTO / MANUAL(1/50(60) ~ 1/60,000 sec)

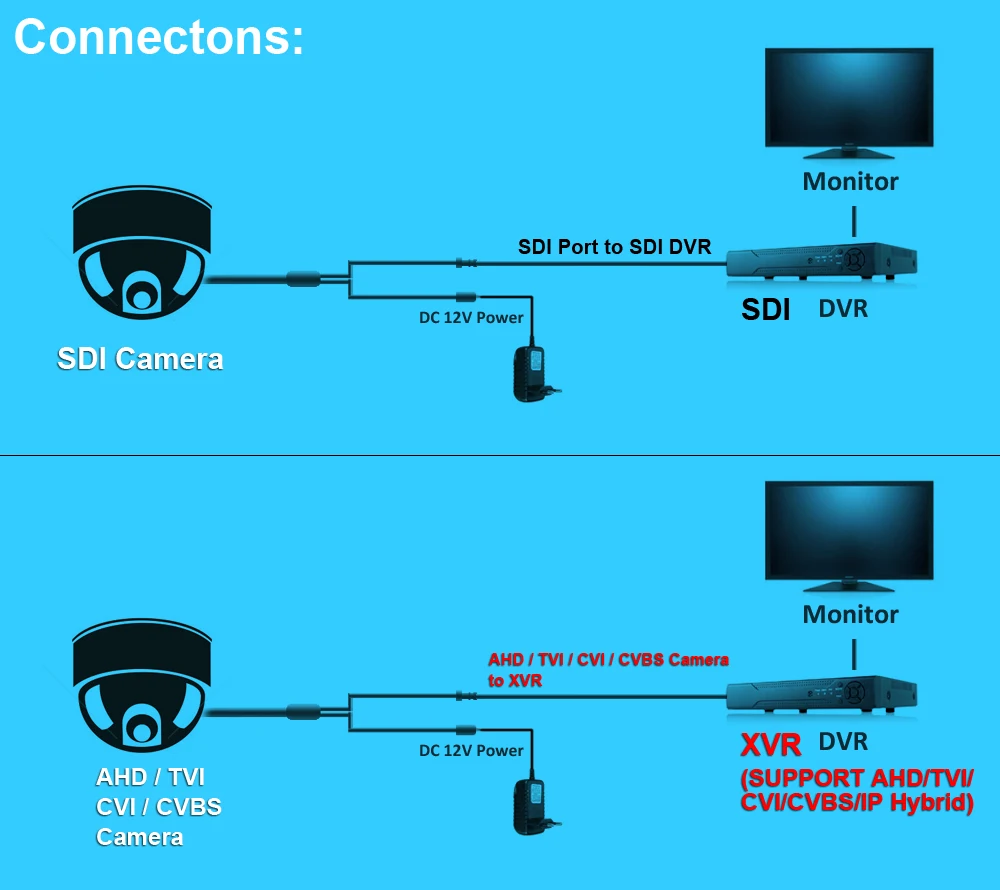

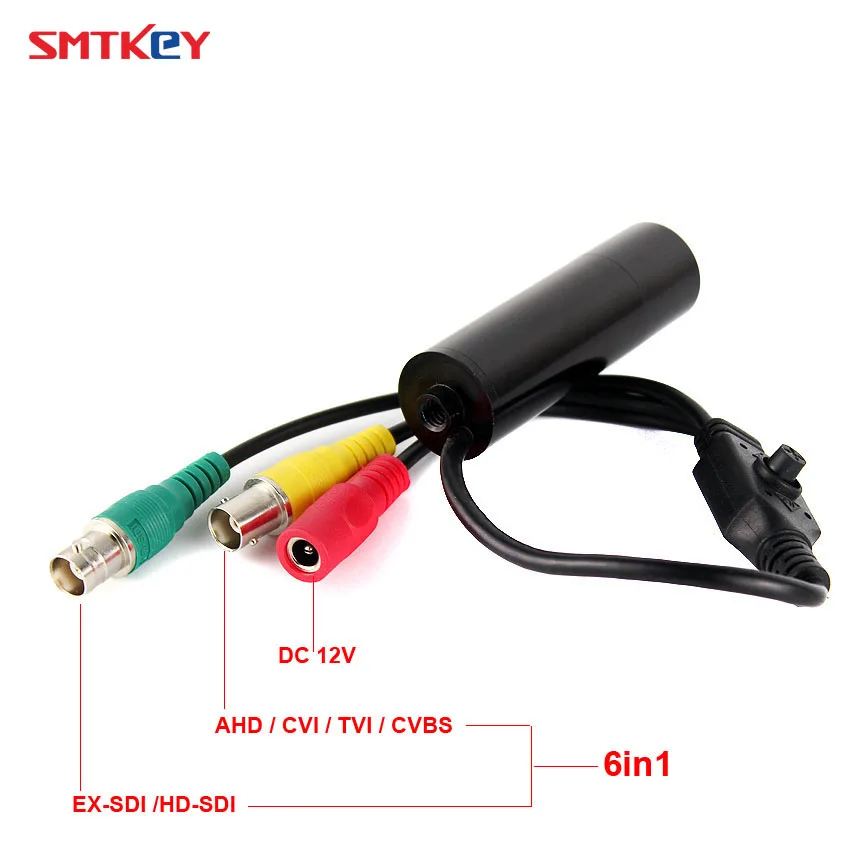

Output 6-IN-1: HD-SDI / EX-SDI / TVI / AHD / CVI / CVBS
Day/Night Mode Auto/Color/B&W/EXTERN
ACE&WDR Off/Low/Middle/High; WDR SNR: 120Db
DNR Off/Low/Middle/High
----------------------------------------------------------------------
Effective Pixels 1944(H) × 1092(V)Approx. 2.48M pixels
Image Settings Brightness / Sharpness / Gamma / Mirror / Flip / DIS
----------------------------------------------------------------------
Functions
Color (AWB) Auto/Auto ext/Preset/Manual
Sens-up Off/X2/X4/X8/X16/X32
Auto Gain Control 0-20steps
HLC / BLC Off / HLC / BLC
Gamma 045 / 0.55 / 0.65 / 0.75
Defog Off/On, Low/Middle/High
Shading Compensation Off/On
Privacy Mask 24Masks
Motion Detection Off/on ,Alarm Output
Languages English / Chinese / Japanese / Korean
----------------------------------------------------------------------
Others
Power DC 12V ± 10%

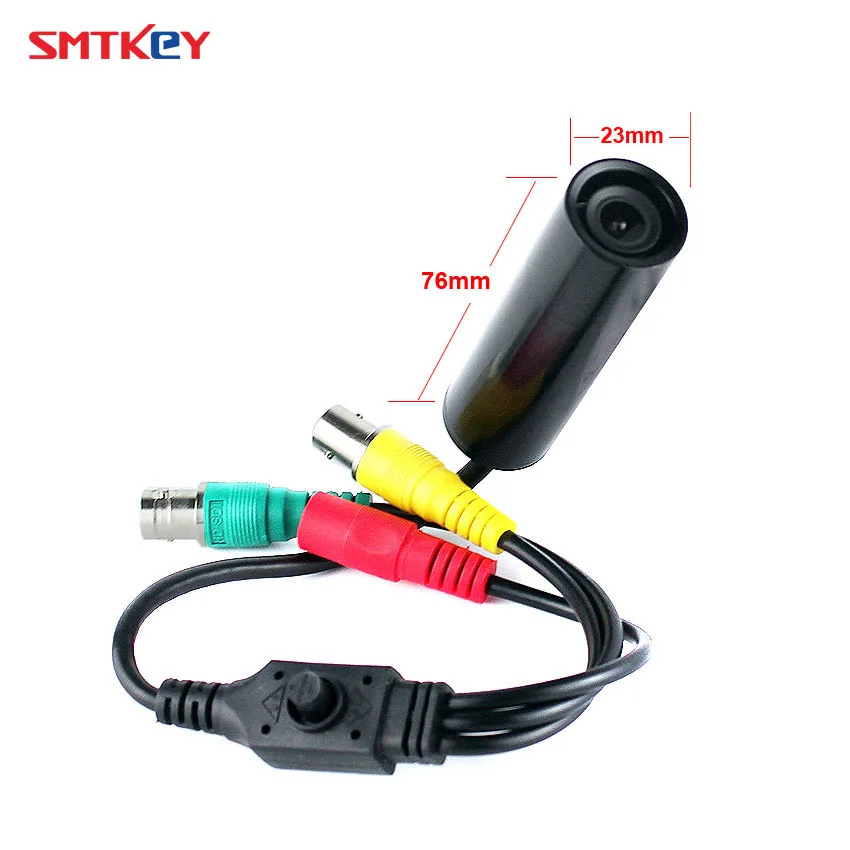

Dimension / mm 79 x Φ23
Net Weight 80g
----------------------------------------------------------------------
----------------------------------------------------------------------

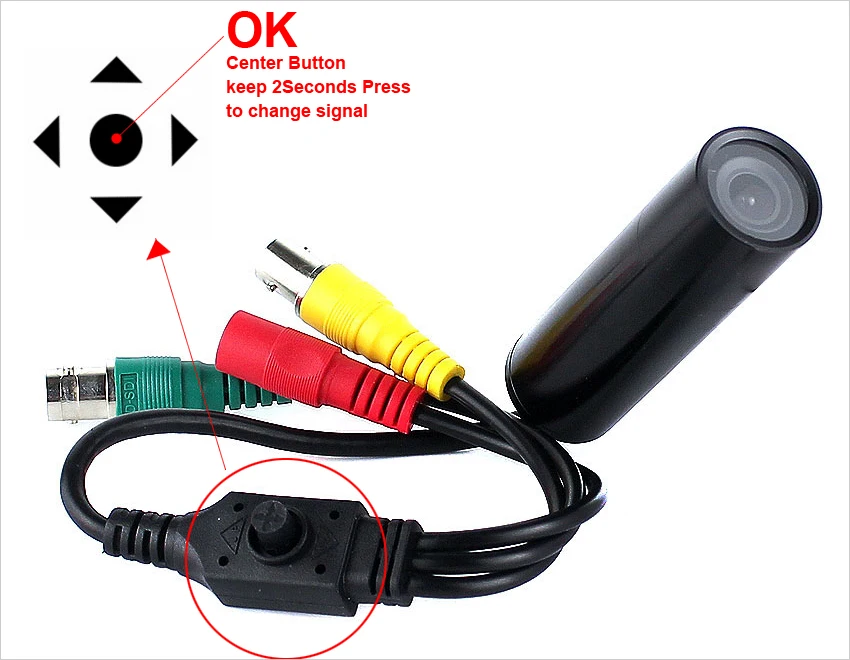

How to change each signal: Press Button Ok until 2second will be change another one for each time.
----------------------------------------------------------------------
----------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

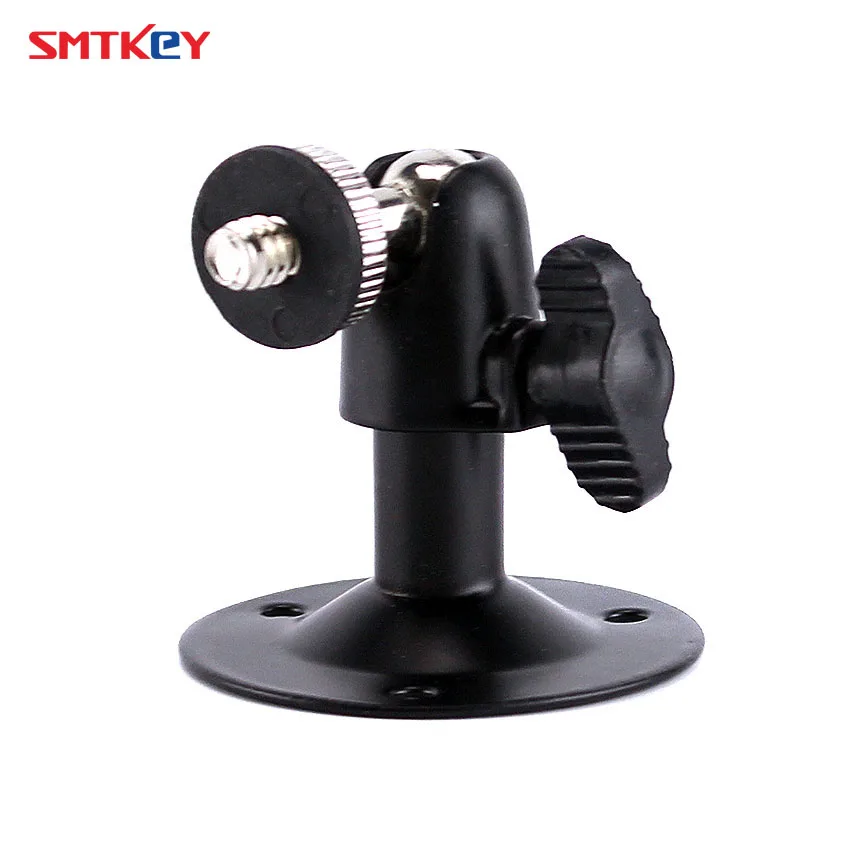

This Camera do not with Bracket, if you need please click here to order
