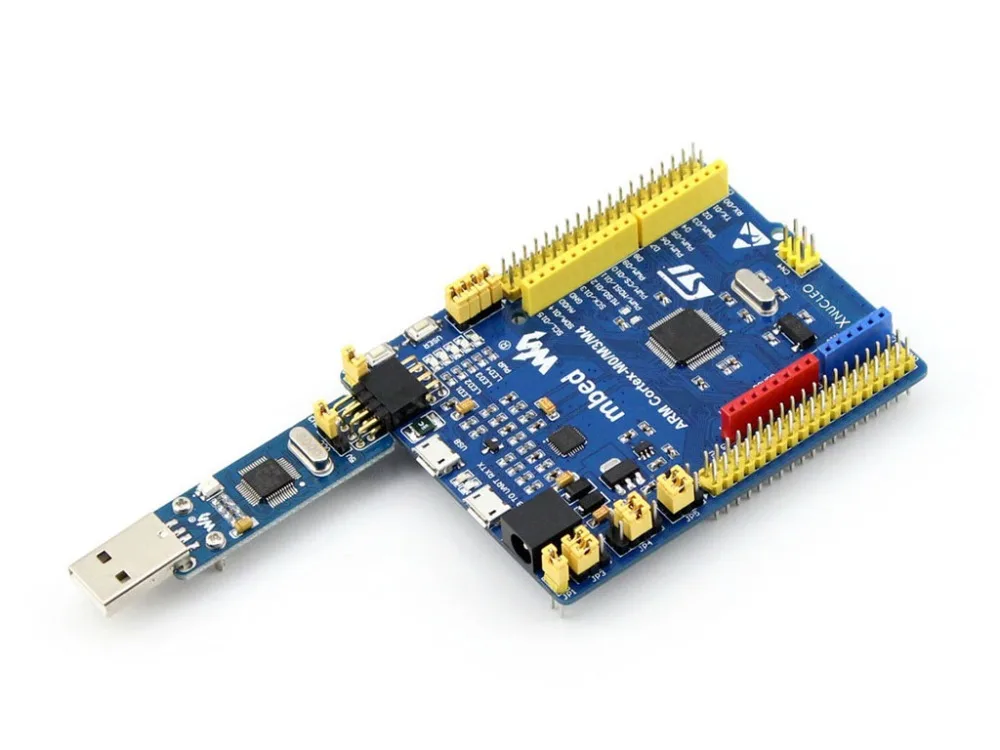

module STM32 XNUCLEO-F030R8 STM32F030R8T6 ARM Cortex M0 Development Board Compatible with NUCLEO-F030R8 + IO Expansion Shield |

hello,
Your order is under $8, we unified send China Post Ordinary Small Packet Plus.
There is no tracking information, usually arrived in your country is 40-70 days, we don\'t accept the dispute,
If you don\'t wait, it is recommended that the purchase order is more than $8,


Your order is more than $8, we unified make arrangements for your China Post Registered Air Mail,
Have a tracking number query information, general arrived in your country is 25 to 50 days,
Please after receipt of the goods, the products in a 5 star evaluation, thank you for your understanding,

STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F030R8, Comes with Various Sensors Overview

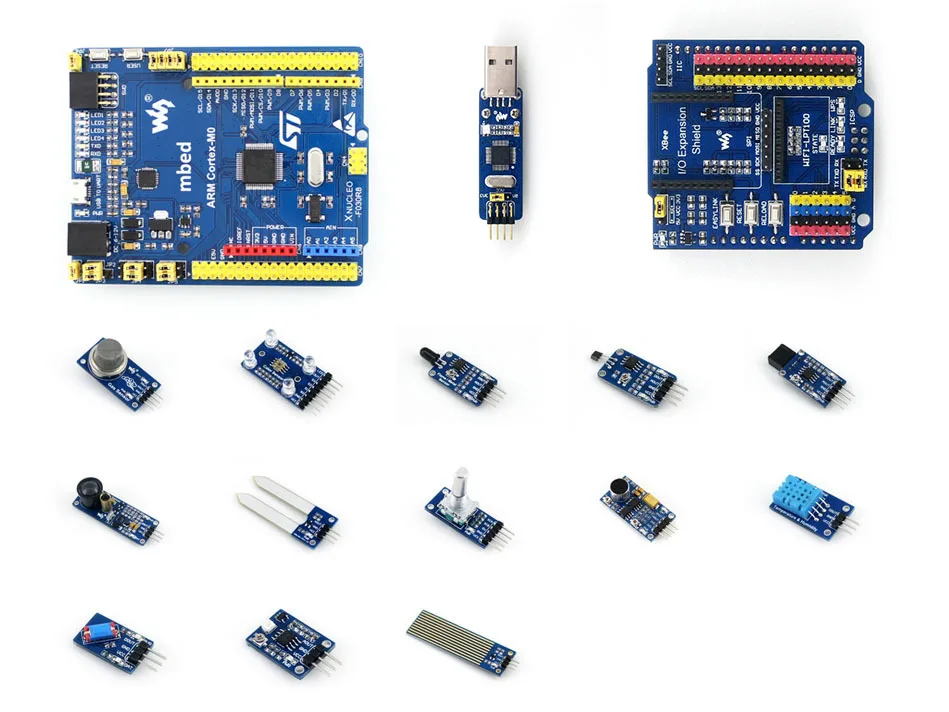

This development kit includes :

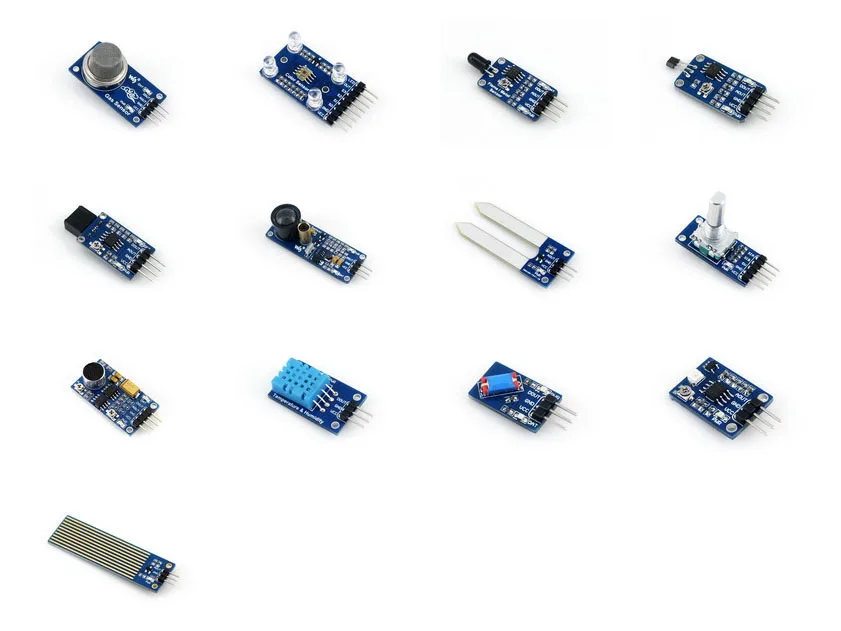

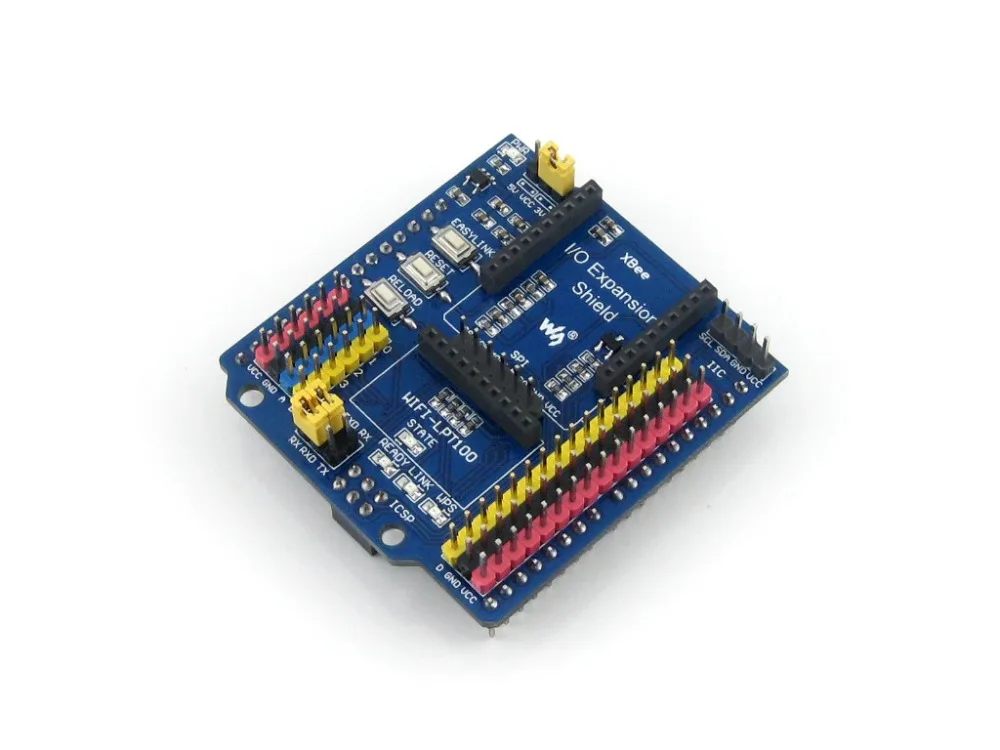

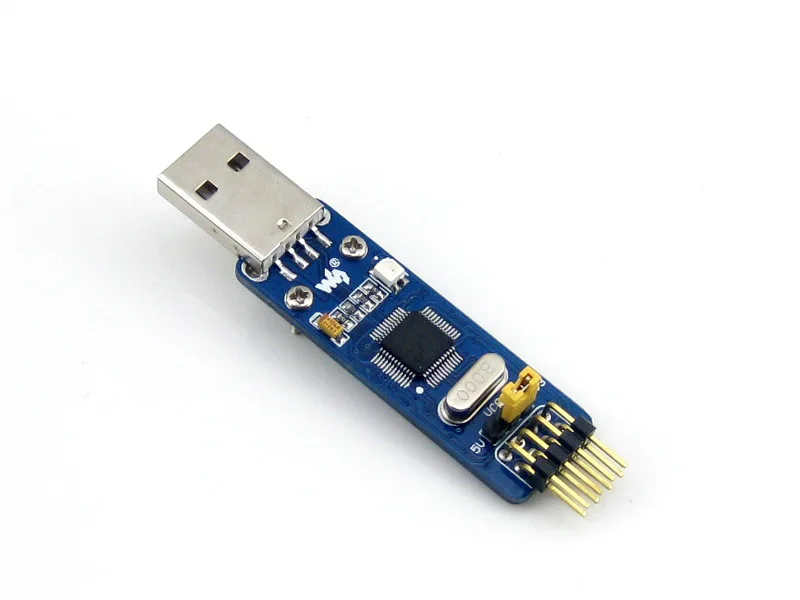

XNUCLEO-F030R8 (STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F030R8) IO Expansion Shield (Provides interfaces for connecting XBee, WiFi-LPT100, and sensors) Sensors Pack (Gas, Color, Flame, Hall, IR, UV, Laser, Sound, Temperature and Humidity, Tilt, Liquid level, etc.) Features Compatible with NUCLEO-F030R8, onboard Cortex-M0 microcontroller STM32F030R8T6 Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion Supports mbed, build prototype quickly by mbed SDK and online tools Comprehensive free software HAL library including a variety of software examples Comes with a separated ST-LINK/V2 module Advantages

What\\\'s on the XNUCLEO-F030R8

STM32F030R8T6
Core : ARM 32-bit Cortex-M0 Operating frequency : 48MHz Operating voltage : 2.4V-3.6V Package : LQFP64 Memories : 64kB Flash, 8kB SRAM Interfaces : 2 x SPI, 2 x USART, 2 x I2C AD/DA : 1 x AD (12 bit) SPX3819M5 : 3.3V voltage regulator AMS1117-5.0 : 5.0V voltage regulator CP2102 : USB to UART convertor Arduino connector : for connecting Arduino shields ICSP interface : Arduino ICSP USB TO UART : for debugging SWD interface : for programming and debugging ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion 6-12V DC input User button Reset button Power indicator User LED Serial port Rx/Tx indicator 500mA fast self-recovery fuse 8MHz crystal 32.768KHz crystal ADC/I2C selection jumper
short A and B : Arduino A4, A5 is used as I2C short B and C : Arduino A4, A5 is used as ADC UART selection jumper MCU current test jumper : for low power tests Power selection jumper
short 5V and U5V : powered from USB connection short 5V and E5V : powered from external power supply User button jumper
short the jumper to connect to I/Os used in example code open the jumper to connect to other custom pins via jumper wires User LED jumper
short the jumper to connect to I/Os used in example code open the jumper to connect to other custom pins via jumper wires

---

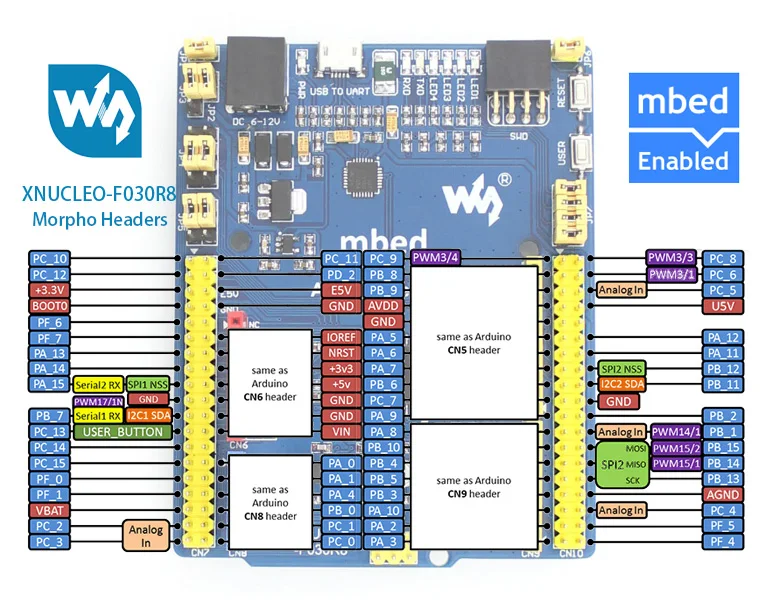

XNUCLEO-F030R8 Expansion Headers

XNUCLEO-F030R8 Photos
XNUCLEO-F030R8 STM32 development board
XNUCLEO-F030R8 STM32 development board back view
XNUCLEO-F030R8 STM32 development board
XNUCLEO-F030R8 STM32 development board back view

---

XNUCLEO-F030R8 Dimension

---

Downloads

wvshare.com/product/XNUCLEO-F030R8-Package-A.htm

---

Package Contains XNUCLEO-F030R8 x 1 ST-LINK/V2 (mini) x 1 USB Type A Plug to Micro B Plug Cable x 1 USB Type A Plug to Receptacle Cable x 1 IO Expansion Shield × 1 Sensors Pack× 1
