Dear buyer:

We supply free shipping for you by Singapore post registered parcel, but it have some risks( such as it need more delivery time and we can not trace the tracking number at the first time). So please let me know if you want use DHL, FedEx or others or you can choose it on Aliexpress.

Thank you very much!

Buson

Car DVB-T HD MPEG4 Receiver Box with CI Card(with Conax)

Features:

1. HD DVB-T MPEG4 receiver with CI CAM card reader Slot
2. Support CA card (Conditional Access card) and CAM (Conditional Access Module)
3. Touch screen control with compatible Headunits (Roadrover, Winca, Foryou, Caska etc, more optional)
4. Fully DVB-T MPEG2 MPEG-4 / H.264 Compliant.
5. Software upgrade via USB
6. Multi-language Subtitle Audio supported
7. Teletext output with OSD
8. Video formats: 480/576i/576p/720p/1080i
9. Aspect ratio 4:3 and 16:9 Aspect Ratio supported
10. 7days Electronic Program Guide (EPG)
11. Picture in Graphics (PIG) supported
12. USB PVR and Time shift supported
13. Program parameters memorization when power-off
14. PAL/ NTSC supported
15. Parental lock
16. FM transmitter for car amplifier speaker
17. Record & playback by USB (Hard Disk supported)
18. HDMI (High Definition Multimedia Interface) output.
19. Various channel editing function (Move, Lock, Rename, Delete)
20. Auto search and Manual search supported
21. Diversity twin-tuner system for high-speed driving Recption
22. Infra-red remote control with Night Luminous button include

Specifiaction:

1. Input Connector: F type female
2. Frequency Range: 174-234MHz, 470-862MHz
3. Signal Level: -80-0dBm
4. Demodulation: OFDM
5. FEC mode: 1/2, 2/3, 3/4, 5/6,7/8
6. Guard Intervals: 1/4, 1/8, 1/6,1/32
7. HD SD H.264/AVC, MPEG-2 Digital & Full DVB Compliant
8. MPEG-1 layer I/II, MPEG-2 layer II, MPEG AAC/AAC+
9. Audio Mode: Left/Right/Stereo
10. Input Voltage Range: DC 12~24V
11. Power consumption: Standby<1W; Working <4W

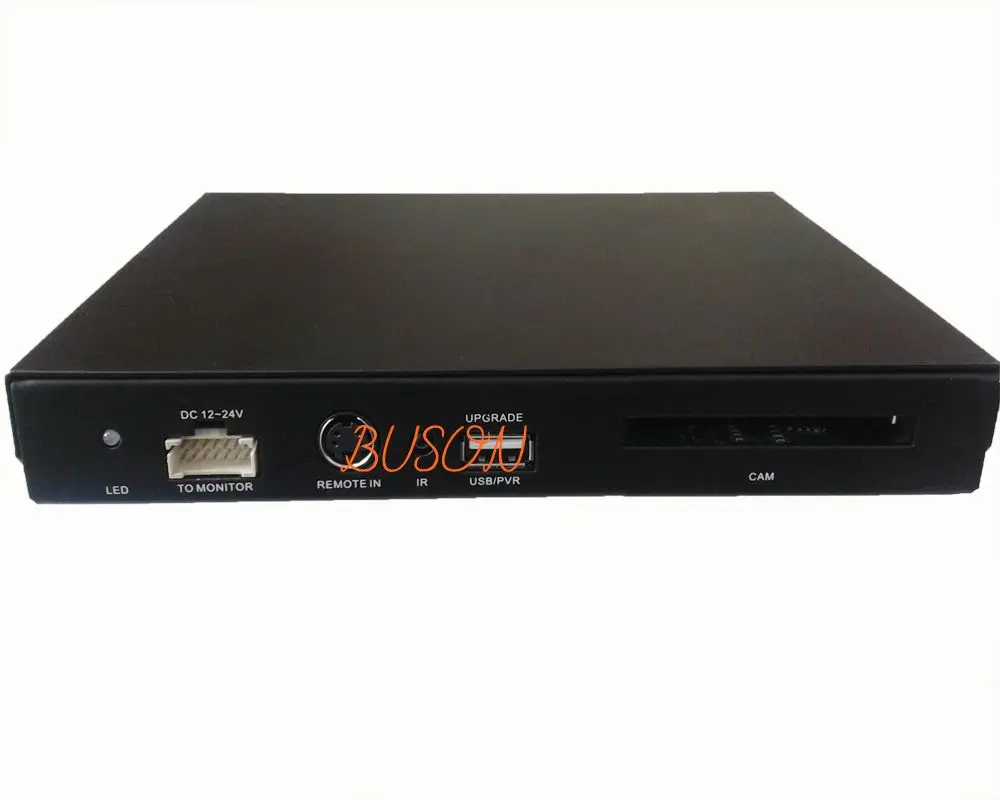

Front interface:

1. Car Power cable input
2. Car cigarette lighter input
3. Power LED indicator
4. IR remote controller sensor
5. Remote extended cable input
6. USB upgrade PVR port
7. CAM / CI card reader slot

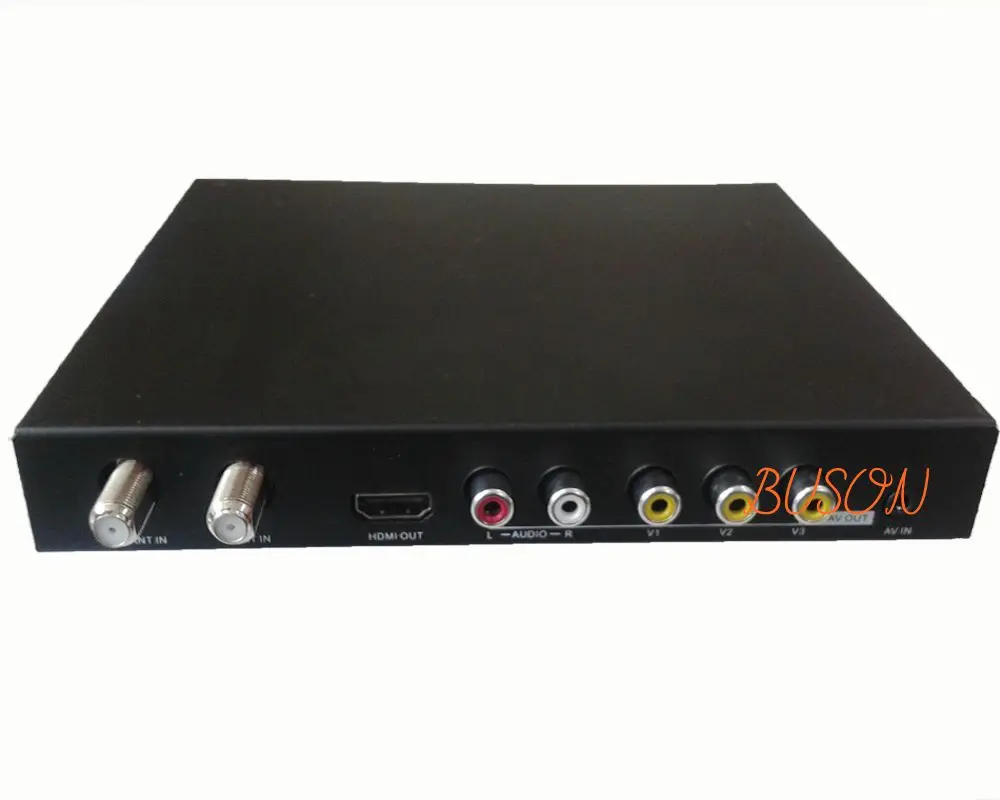

Back interface:

1. Two antenna F type female input
2. HDMI output
3. Audio LR output
4. 3X CVBS RCA video output
5. AUX AV input

Pay TV smart card adapter
Personal Videl Recorder
Recording & Playback with External USB 2.0 Devices
Event Recording by EPG
Recording and Playback
USB2.0 Host Support (AVI,MP4,MP3 Player & JPEG Viewer)
Support EPG (Electronic Program Guide)
Channel Control By Favorites, Lock, Skip, Move and Delete
Multi-language Supported (OSD & Menu)
Teletext Support
Maximum 10.000 channels Programmable
Parental Lock
CVBS Video & Audio input via RCA
3X CVBS Video & Audio Output via RCA
Software & Channel Database Upgrade via USB
Complete with full fitting and operating guide.
Two Diversity 25DB active amplifier TV antennae included
Current Consumption 0.35A
Operation Temperature Range -10°C ~ 70°C
Storage Temperature Range -30°C ~ 85°C

* Includes card-slot for optional paid broadcast services (CA card and CAM is not included, should purchase from local

market) .

Product photoes:

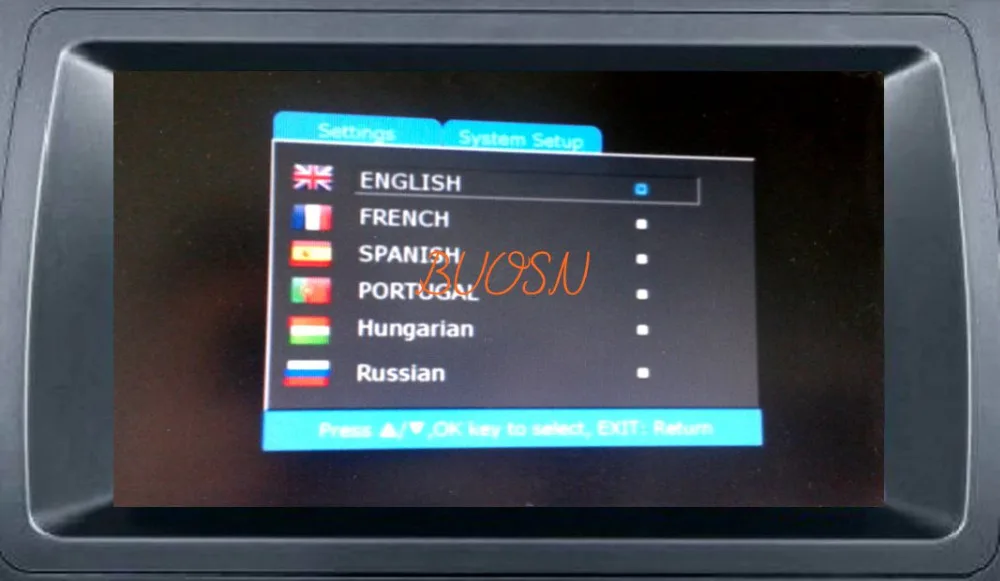

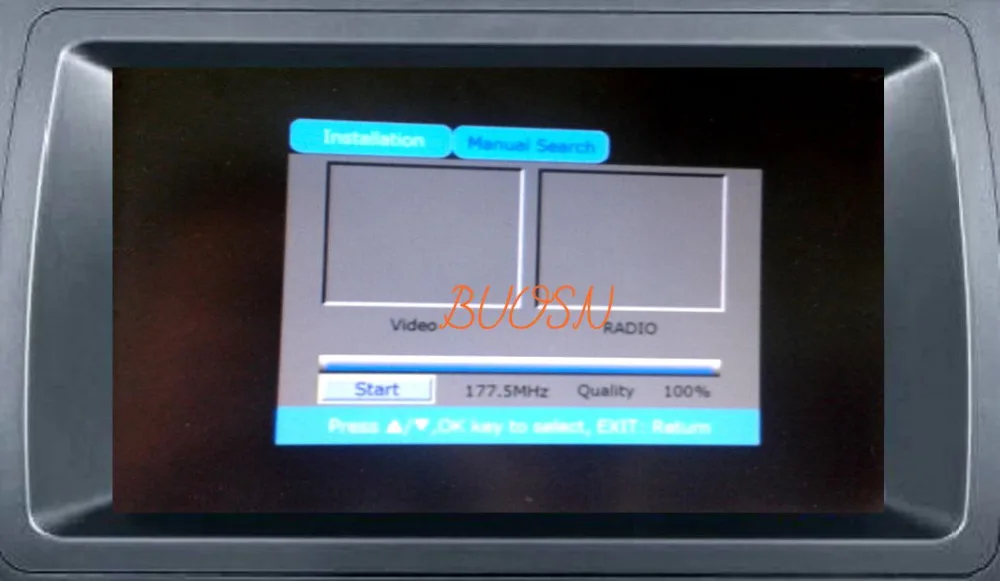

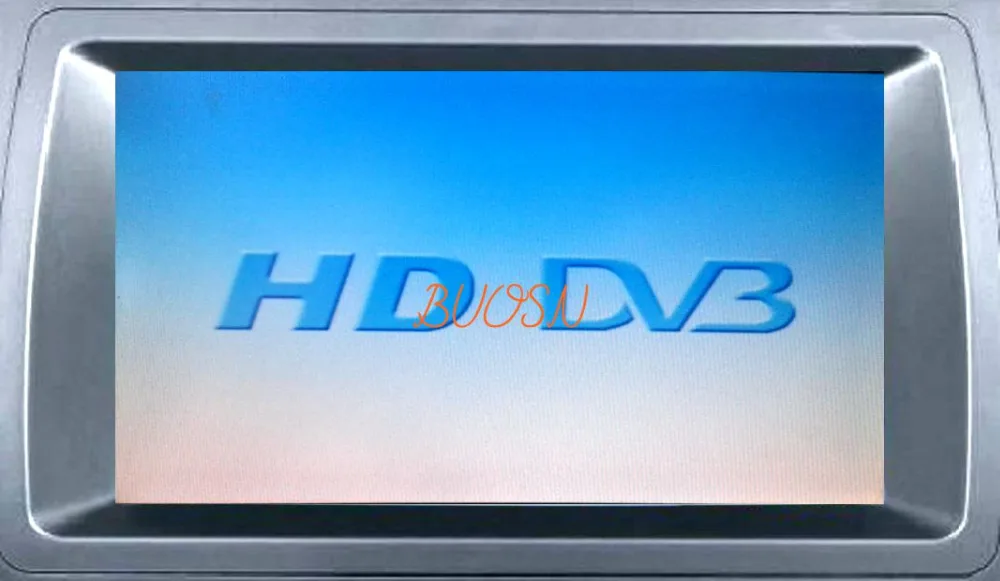

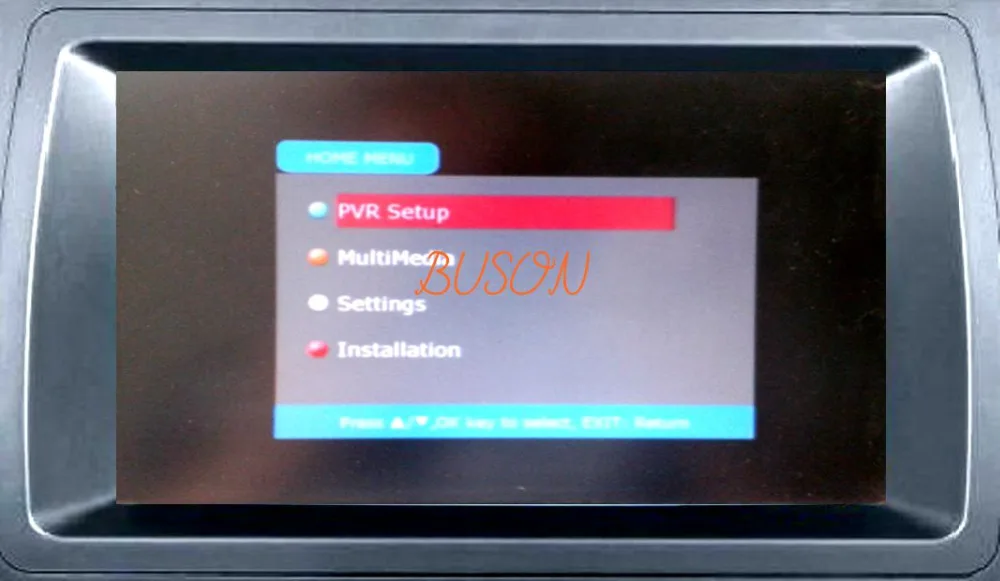

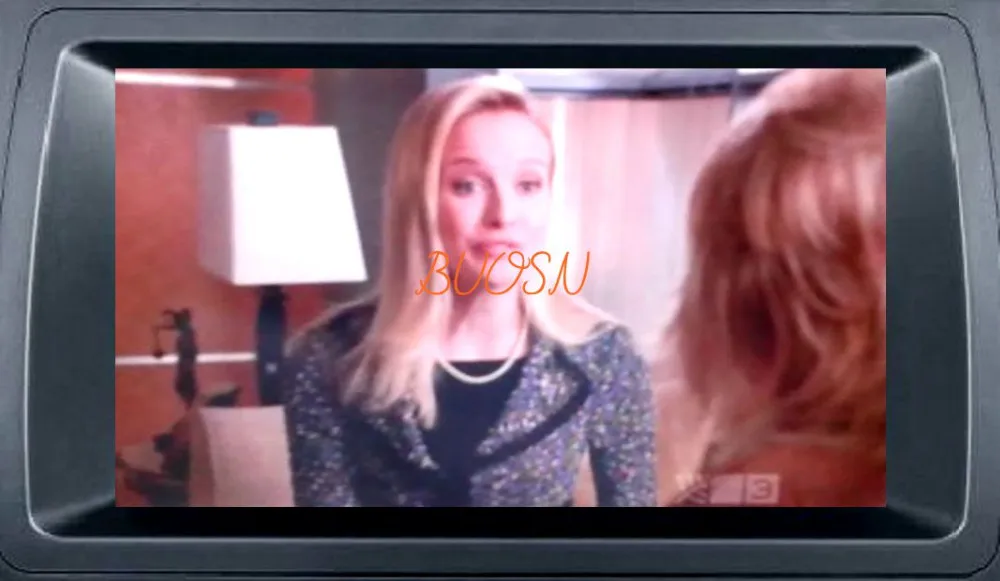

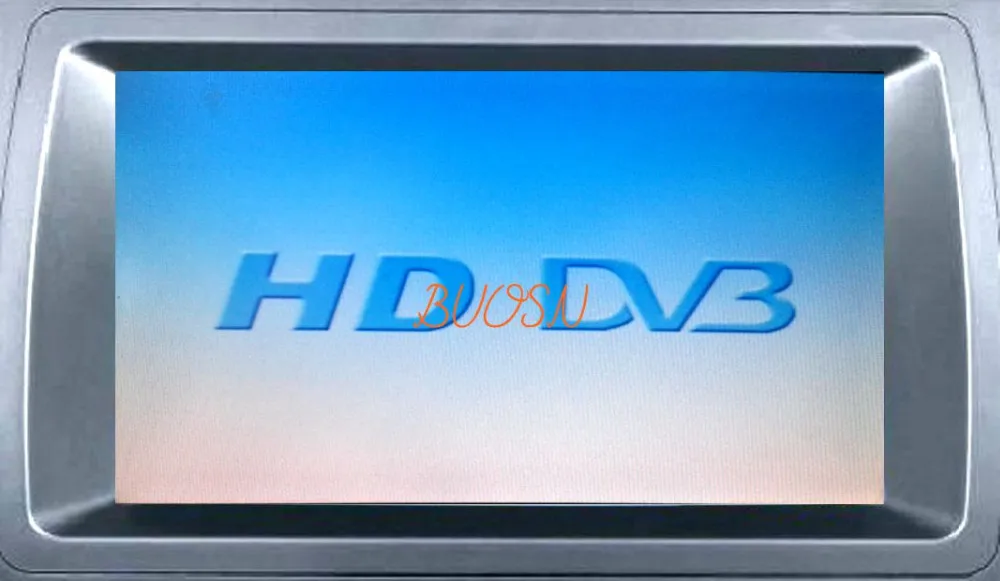

UI as below:

Accessories :

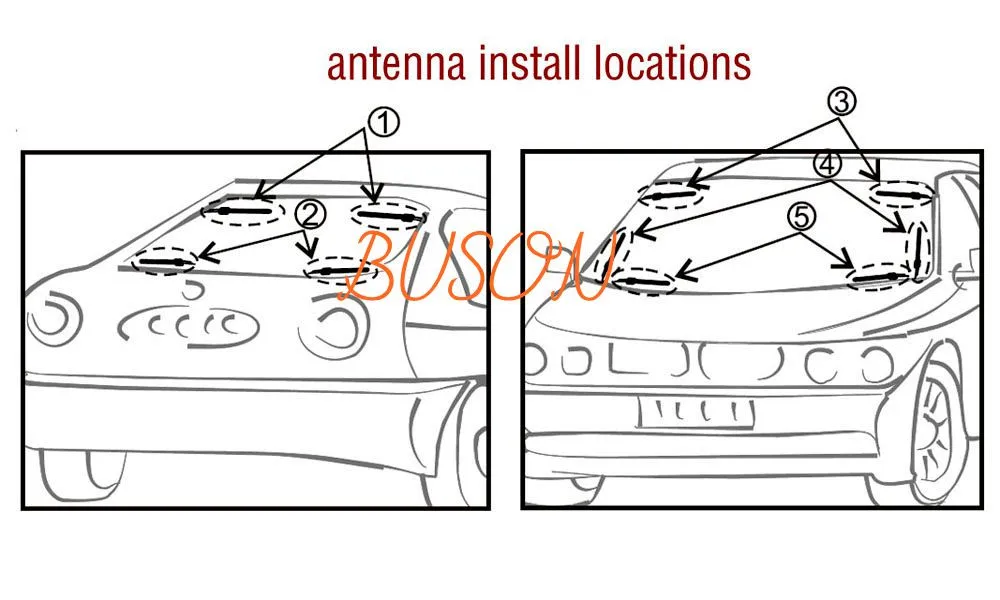

Five antenna install locations are just for your reference:

Buy Note:

           *Please check if have free DVB-T channels in your local , this    tuner only can get free dvb-t channels.

          * You can use this tuner in all kinds of the car .

Feel free to let me know if you have any questions.
