RA17013UUCC0 RA17013UUC0 TLANMP Crossed Roller Bearings (170x196x13mm) Thin wall bearing Super Slim Bearing Made in China | Автомобили и

UUCC0 :     UU Means double face Sealed, CC0 means Bearing clearance from -0.005~-0.001mm    ;

UUCC0 :     UU Means double face Sealed, C0 means Bearing clearance from 0.001~0.005mm    ;

RA17013 Crossed Roller Bearings (170x196x13mm) Thin section bearing THK Super Slim

Medical Device Bearing Made in China

 A . Crossed Roller Bearings Parameters Brand- TLANMP Model number- RA17013 Inner ring(mm)- 170 Outer ring(mm)- 196 Width(mm)- 13 Weight(Kg)- 0.64 Materials- GCR15/GCR15SiMn Precision grade- P5/P4/P2 Lubrication type- Grease lubrication Rotating part- Inner Ring Rotation Load direction- Multi-load Structure- Outer ring split    B . RA17013 Crossed Roller Bearings Specification Sheet Model
Number Main dimensions Mounting
dimensions  Basic load rating
(radial) weight Inner
ring
d (mm) Outer
ring
D(mm) Roller
pitch
circle
dp(mm) Width
(mm) Greasing
hole φ Chamfer
r(min) ds Dh C kN C0 kN Kg RA17013 170 196 182 13 2 0.8 175 189 23.5 46.5 0.64  C . RA type Crossed Roller Bearings Details Product Features

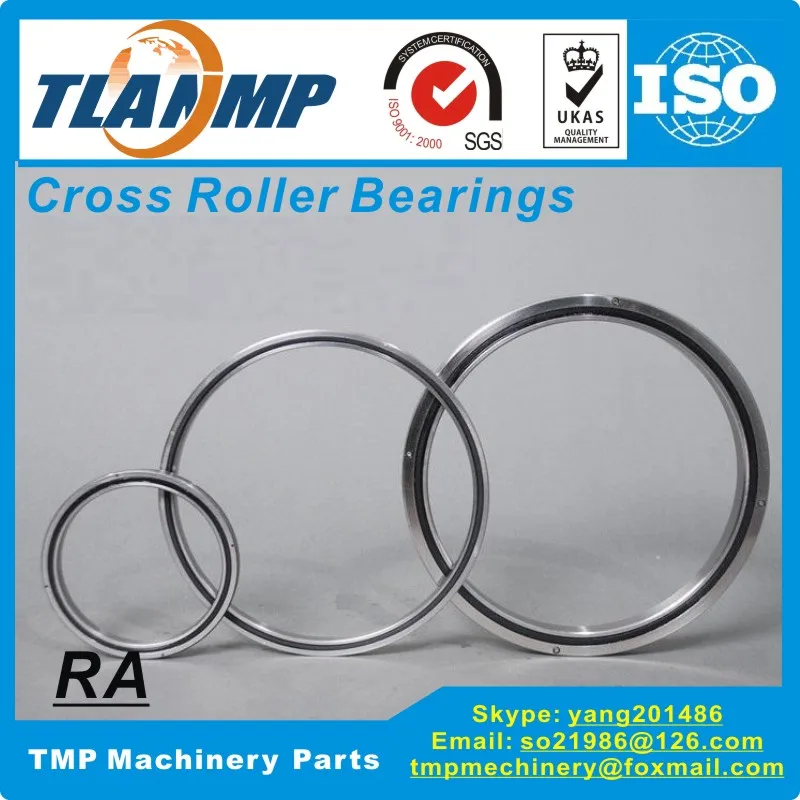

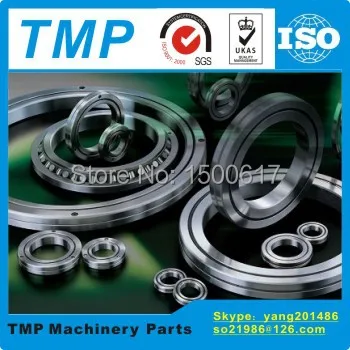

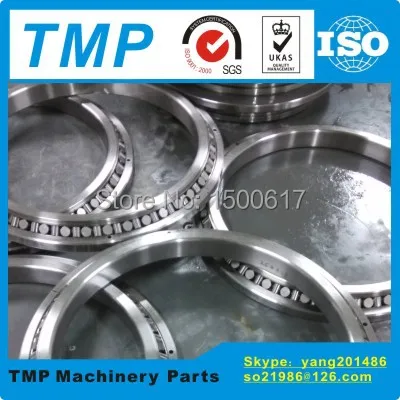

TMP Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer

 rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove

 through the separate spacers in the deep groove rolling surface. This special design allows just one

 bearing to carry loads in all directions including radial, axial and moment loads.

Series Introduction

RA thin type is a small and light weight bearing with a very thin wall thickness. It carries heavy loads.

 Therefore, the bearing housing and pressure flange can be light weight. It is being used in rotary

locations such as in robot hands. The outer rings of the RA thin type are separable and fixed by

 special rivets.

Series Model No.

RA5008,RA6008,RA7008,RA8008,RA9008,RA10008,RA11008,RA12008,RA13008,RA14008,

RA15008,RA16013,RA17013,RA18013,RA19013,RA20013

Applications Product Application
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc





Shipping:

Items will be shipped within 7 business day once payment received (aliexpress we will check your credit card,and it will take about 24 hours and holiday except),if we have any problem about the product,we will leave a message in time,pls kindly reply us in time also to avoid the mistake happen.   Payment Escrow is our preferabe payment method, which is security for you. Besiedes, all major credit card, T/T etc are acceptable.   Returns Term: In case you received a defective item, the customer has up to 7 days from date of receipt to request for refund or exchange for a new one. In case you received a wrong item, Items must be returned in its original and unused condition & must also be in its original box and packing. We do not allow refunds or exchanges because of change of mind. Please read all description provided as a guide before you bid. While every step has been taken to ensure that we ship out correct item, there will be occasion when you receive items that are different from the description. In such case, we ask that you contact us immediately so we may remedy the situation. Your satisfaction is important to us and we value your business. If you have any need or problem, please let us know, you can contact us with TradeManager. email. message ....we always at here!      FAQ: Q:How do I pay for my purchase? A: we accept the following payment methods: credit card; moneybookers;T/T;western union. Q:How much does it cost to ship to my country? A:     We do Free shipping by China Post Air Mail (under 2kg weight) and  Express way(EMS, Fedex and DHL) , It needs about 15-45 working days. It depends on the destination. If you need the goods urgently, we also provide express way(EMS, Fedex and DHL). Most of the bearing in our store will send by  Express way(EMS, Fedex and DHL).     Q:Is there any tracking Number for my item? A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website. Q:Does this product come with retail package? A: We have declared the packing detail on the description of each product, please check it, thank you! Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price? A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks! Q: Does your price include import duty? A: No, our price are not include import taxes and coustom duty. We will make goods as gift with low value, you have to responsible for the import duty if your country required. Feedback policy: We will provide positive feedback once payment is received, To foster a healthy Ali community, we hope you will do the same for us. We want you to understand that we value customer service tremendously. If you have any dissatisfaction, please give us the opportunity to resolve the problem before leave us a negative feedback. We are sure that there is always solution and we sure don`t want a bad feedback to be where the transaction ends.You satisfaction and feedback is very important for us. We hope you can leave positive feedback and 5 stars. Warning: This product belong to " T L A N M P " brand, anyone use our brand without our permission will pursue legal responsibility，we have only this store on Aliexpress. There are some stores have misappropriated my store product information, please check carefully before order. Wish you get the right parts from here.
