Характеристики
Описание товара

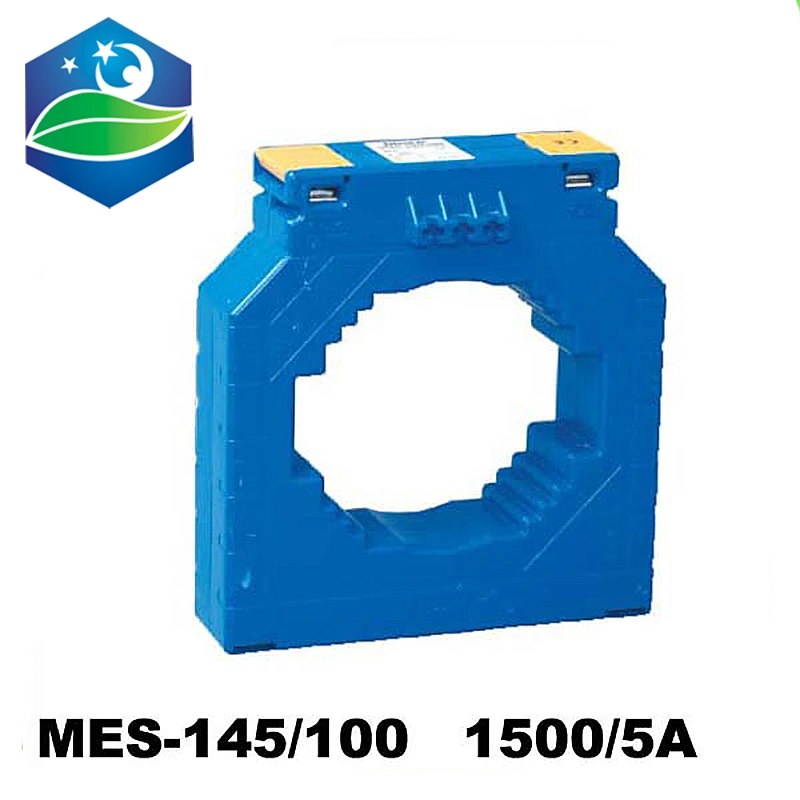

The MES series of current transformer are convenient for mounting in many ways.
The most current transformer need the special mounting
and the MES series used the mounting of DIN typing without a lot of times.
The protective cover for terminal block used the switching device with safety and quick.
Feature:
1) Three built in fixing methods: Panel/Din Rail/Busbar
2) Built in hinged terminal cover
3) Compact design
4) Primary current up to 3000A
Applications:
1) Current measurement, monitoring and protection for electrical wiring and equipment.
2) Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation - control system.
3) Current, power and energy monitoring device.
4) Relay protection device.
STANDARD:
IEC6044-1, EN60044-1, VDE0414-44-1, GB1208-2006
SPECIFICATION:
Primary current:
5A-3000A
Secondary current:
5A, 1A
Standard approval:
IEC44-1, BS7626
Maximum voltage:
0.72/3KV
Frequency:
50/60Hz
Rated load:
2.5VA / 5VA / 10VA / 15VA
Class:
0.5, 1.0
Short-time thermal current:
Ith=60*ih
Rated security coefficient:
FS< 5
Special remaind:
1:The installation altitude less than 2000m
2:The surrounding temperature range: from -5°C ~ +40°C
3:In the non-explosive condition. or without adequate erosion and destruction of gas and dust conductive area .
4:Without rain and snow invade
5:Pollution level 2
Model
Nominal current ratio
Burden(VA) Accuracy
Rated Voltage (V)
Rated Frequency (Hz)
Class: 0.5
Class 1
MES-145/100
800/5 A
15
20
720
50/60
1000/5 A
15
20
720
50/60
1200/5A
15
20
720
50/60
1250/5A
15
20
720
50/60
1500/5A
15
20
720
50/60
1600/5 A
15
20
720
50/60
2000/5A
15
25
720
50/60
2500/5A
15
25
720
50/60
3000/5A
15
25
720
50/60

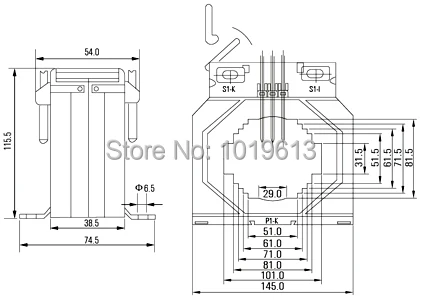

Dimension of case (mm):
