Warm Tips:

1.Because this device can support multi-brands and we do not test it on all the cars, we can not make sure whether it can be used on your car, maybe you can buy one to have a try. Many thanks.

2.This item doesn't work on IOS. If you need an item which works on IOS, please buy our WIFI OBDII.

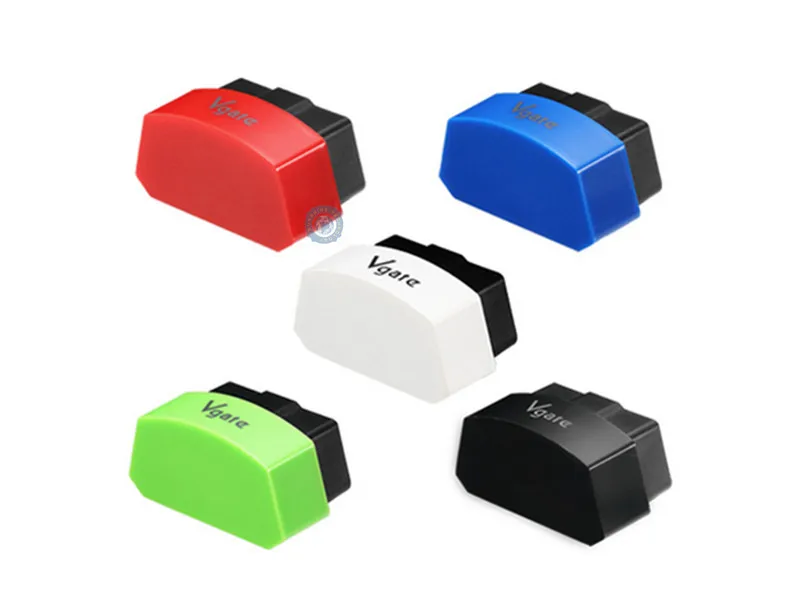

3.There are 5 colors: red, green, blue, black, white, please leave message to tell us which color you need, or we will send it randomly.

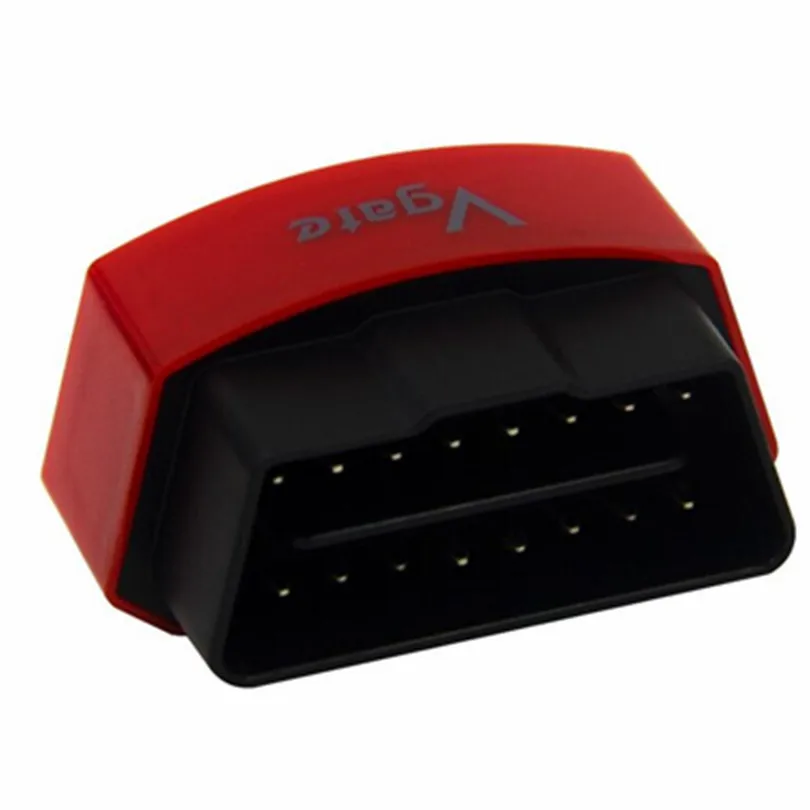

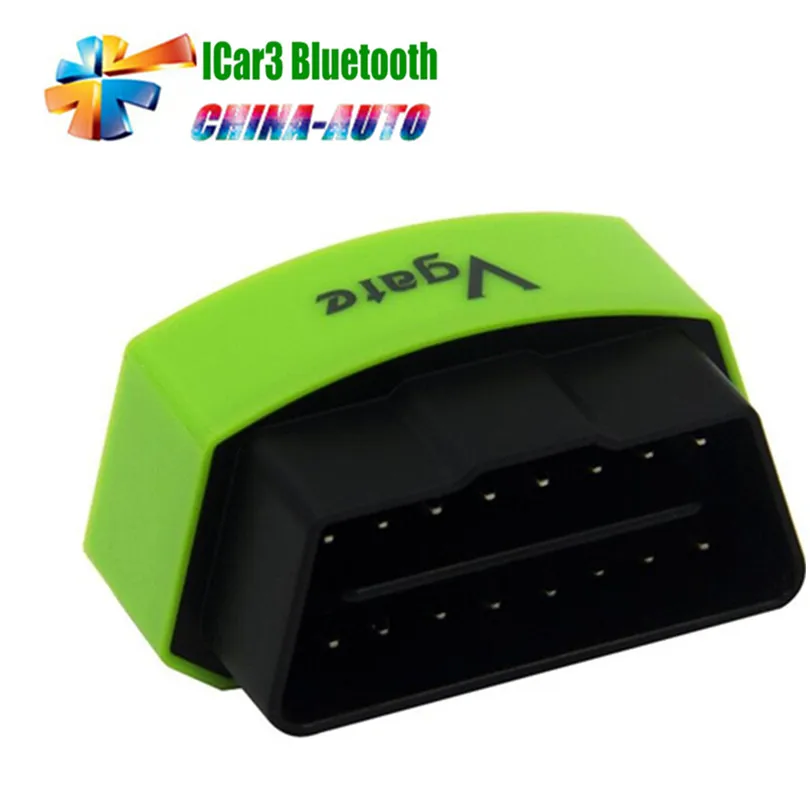

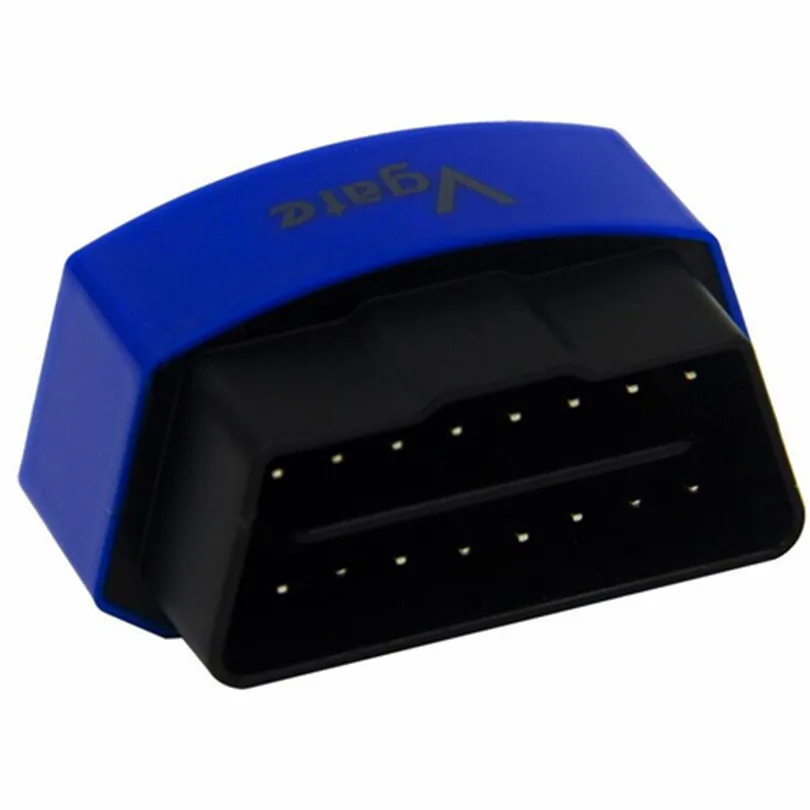

 The device is a small adapter that plugged into the vehicle OBD-connector.

 On Bluetooth, it connects to any computer, tablet or smartphone (cannot for IOS), with associated diagnostic procedures.

 With iCar3 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.

Features:
1. Supply voltage (VDD):12V
2. Work temperature range: -20 ~ +70 degree
3. Storage temperature range: -40 ~ +125degree
4. RF sensitivity (Basic Rate): -85db
5. Modulation Mode: GFSK
6. Frequency Range: 2402 ~ 2480MHZ
7. Transmission Range: 10M
8. Bluetooth Profile: SPP
9. UART Params: 38400.8.n.1
10. Small size, compact structure. Plug and never unplug
11. Stable wireless connection
12. No wires or batteries (adapter is powered by the diagnosis size sockets)
13. Stop communication, wait half an hour, auto sleep
14. Supports OBDII protocols
15. The adapter uses the fastest and most reliable ARM chips

Functions:

1. Read, erase and display code descriptions problems - both standard and spetskodov manufacturers.
2. Measure the fuel consumption.
3. Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
4. Turn off the MIL (signal Check Engine).
5. Download data to external media in a variety of formats for later printing.
6. Record various parameters, display graphics in real time, and more.
6. Record various parameters, display graphics in real time, and more.

 ICar 3 scan tool is a high-quality automotive scanning tool, supports all OBD-II protocols as follow:

0. Automatic
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud )
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)
A.SAE J1939 CAN (29bit ID,250*Kbaud)
B.USER1 CAN (11*bit ID,125*Kbaud)
C.USER2 CAN (11*bit ID,50*kbaud)
*Default settings (user adjustable)

1pc x Vgate ICar 3 Bluetooth

1pc x CD drive

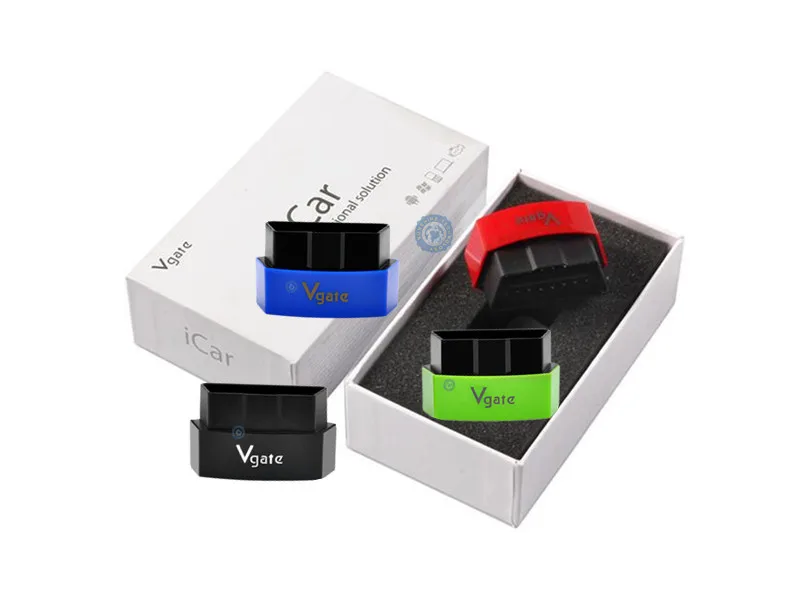

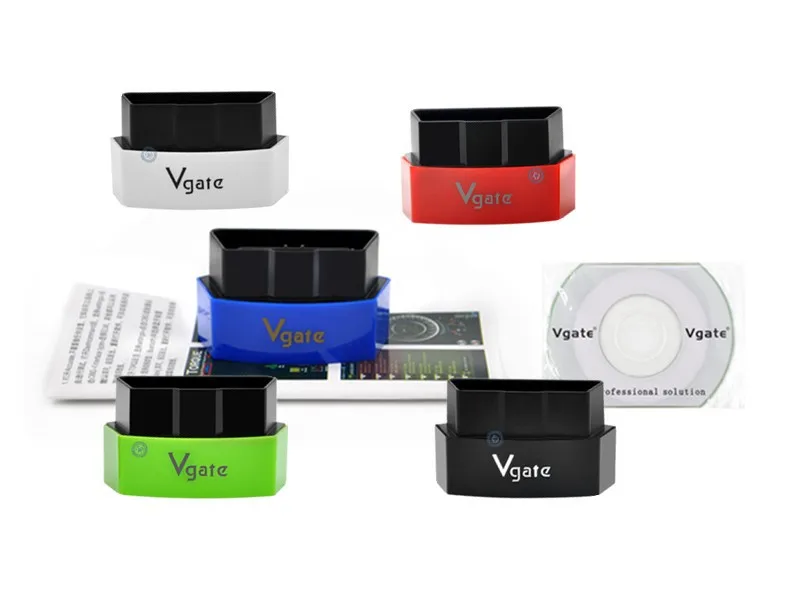

The real picture:
