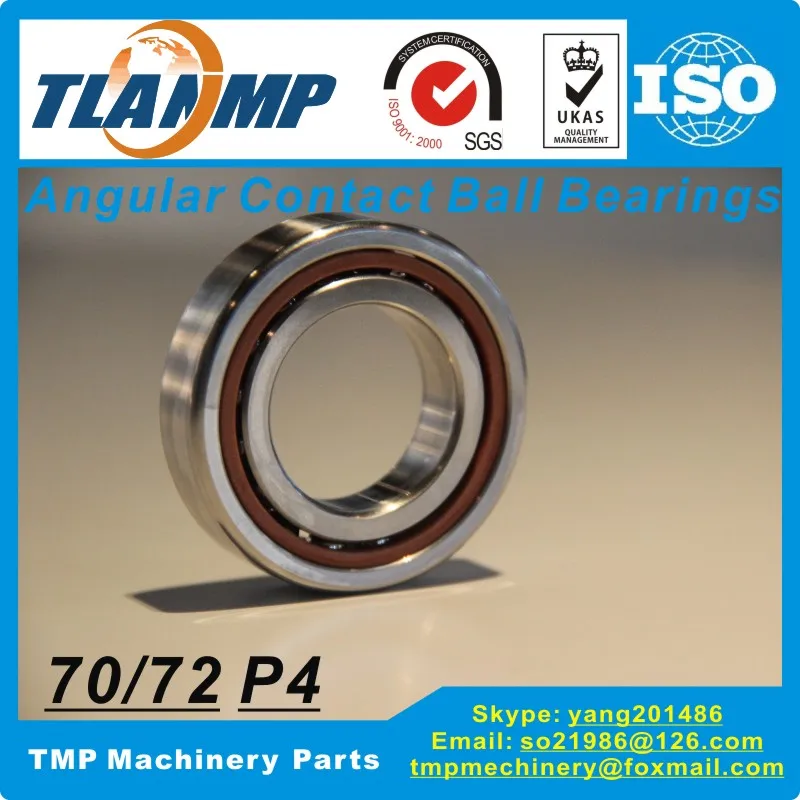

7209C/AC P4 Angular Contact Ball Bearing (45x85x19mm)

  tiny ball bearings Spindle bearings

 A . Angular Contact Ball Bearing Parameters Brand-  TLANMP Structure- Angular Contact Model number- 7209 Inner ring(mm)- 45 Outer ring(mm)- 85 Width(mm)- 19 Weight(Kg)- 0.404 Materials- Chrome steel/GCR15 Precision grade- P4 Lubrication type- Grease lubrication Contact Angle- C=15°;AC=25° Material(Ball)- Steel ball(SUJ2); SN24:Ceramic ball(Si3N4) Number of Row- Single rows Material(Cage)- TYN-PA;TR-PF Combination of mark- SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD:  Three rows
DBB.DFF.DBT.DFT.DTT: Four rows Preloaded mark- EL: Micro preloaded
L : Light preload
M : Medium preloade
H : Heavy preloaded    B . 7209 Angular Contact Ball Bearing Specification Sheet Model Number Dimensions α=15° α=25° Material
(Cage ) Weight (kg)
Approx Limiting speed Limiting speed d D B Basic load rating Lubrication Basic load rating Lubrication Cr Cor Grease Oil Cr Cor Grease Oil 7209 45 85 19 35.5 33.8 15000 25000 33.8 32.3 13000 21000 PA/PF 0.404      C . 72 series Angular Contact Ball Bearing Details Product Features

Precision Angular Contact Ball BearingsDue to their internal design, angular contact ball bearings can withstand

 high radial-axial loads and reach high speeds. They are asymmetrical for manufacturing reasons and

can withstand unidirectional axial loads only. Angular bearings are usually mounted in a group of two or more

opposed preloaded units with rigid or elastic spacers. Typically, the inner and outer raceways and balls are

made of chrome steel. Where operating conditions are severe, bearings may have ceramic balls creating a

hybrid bearing.

Series Introduction ISO 02 Series - highest load, lowest speed bearings-72 Series Angular Contact Bearings Series Model No.

7200 7201 7202 7203 7204 7205 7206 7207 7208 7209 7210 7211 7212 7213 7214 7215 7216 7217 7218 7219

7220 7221 7222 7224 7226 7228 7230 7232 7234 7236 7238 7240 7244

Applications Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.     TMP Bearrings, Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing,Thin section ball bearing    Company Information

       TMP Machinery Parts Co.,Ltd  (TLANMP) is a professional manufacturer of high precision bearings and other equipment,The main products  are Thin Section Bearings, Crossed roller bearings, Rotary Table Bearings, Tapered Roller Bearings, Angular Contact Ball Bearings, Slewing Bearings, Sports equipment accessories etc,Our products are used for Robotics, CNC Machine Tools, You can find all you need in our store, all the bearings and parts here is made in China and can replace with imported parts .
