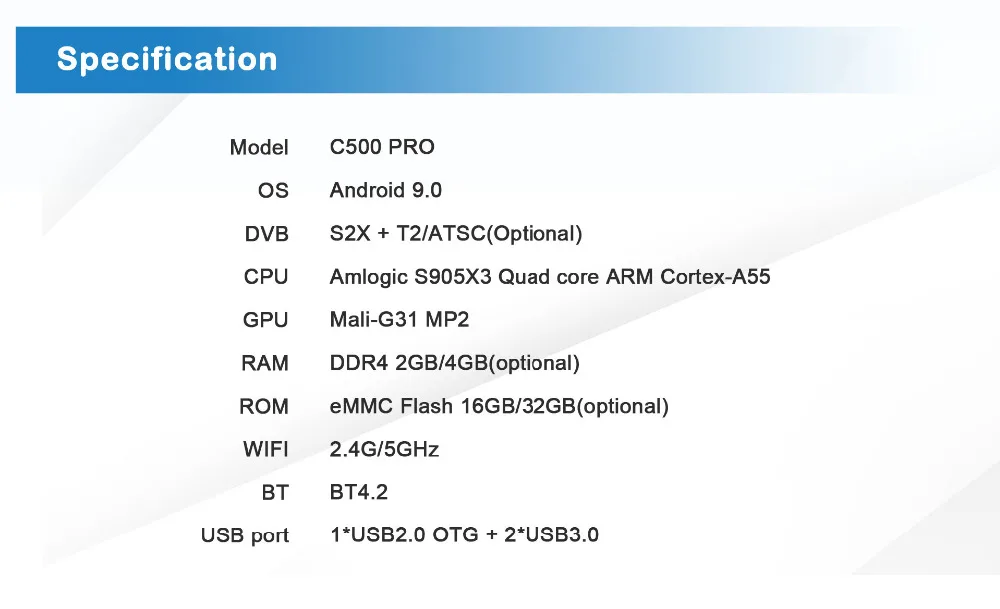

OS
Android 9.0
CPU
Amlogic S905X3 Quad core ARM Cortex-A55
GPU
Mali-G31 MP2
Language
Chinese, English, Germany, Thai, French,Russian,Italian,Spanish....
RAM
DDR4 2GB / 4GB (Optional)
ROM
eMMC 16GB / 32GB (Optional)
Video
VP9 Profile-2 up to 4Kx2K@60fps
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
AVS2-P2 Profile up to 4Kx2K@60fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
Wireless
Wi-Fi
2.4GHz/5GHz IEEE 802.11a/b/g/n/ac 2*2MIMO
BT
BT4.2
Ethernet
100M
SATA
Support 2.5" HDD & SSD
LED Indicator
Support
Digital tube display
Support

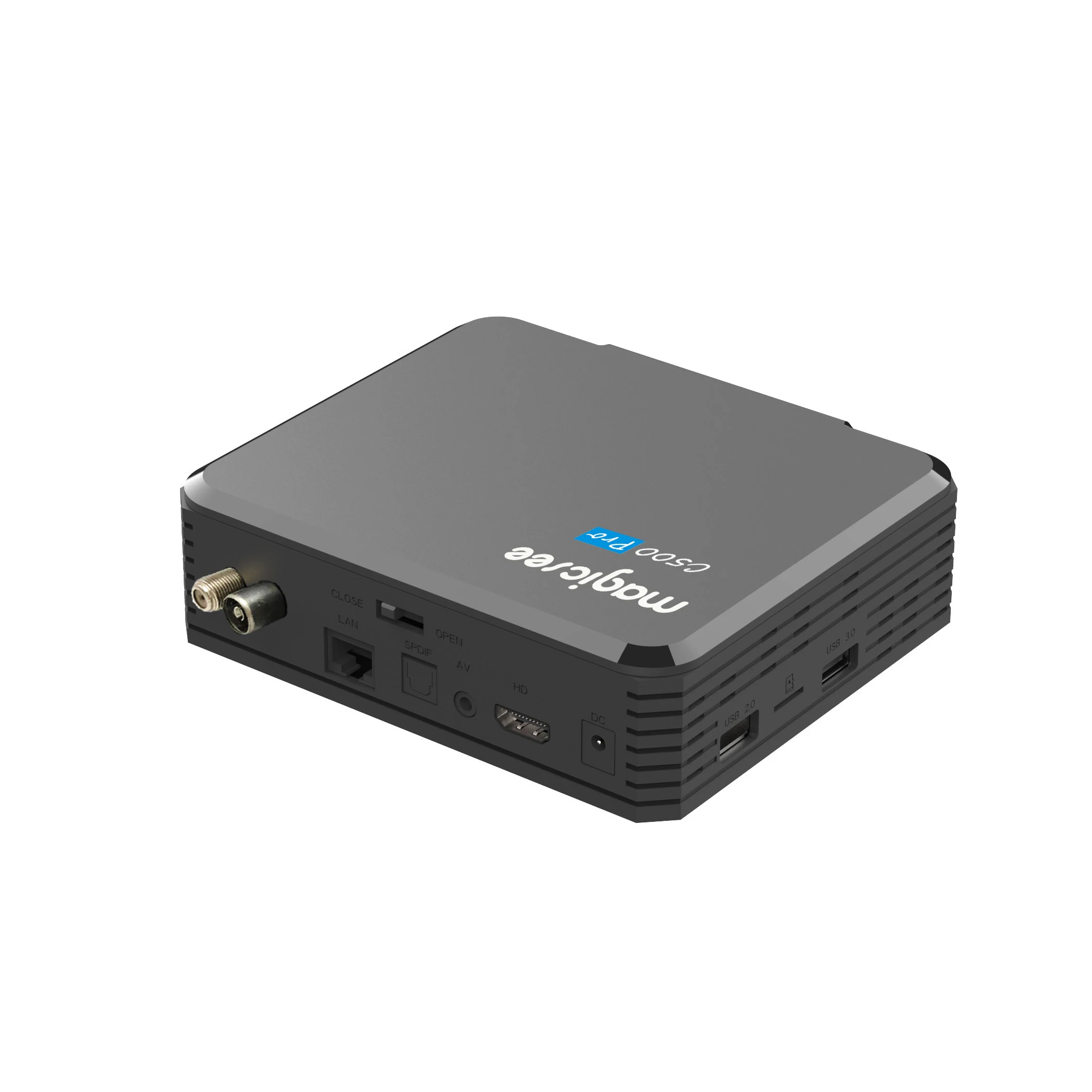

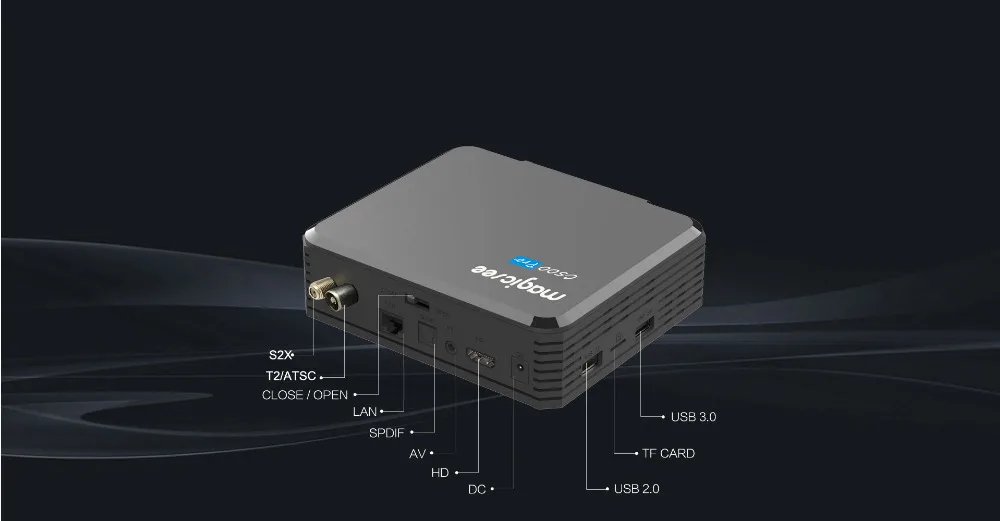

I/O
USB port
1*USB2.0 OTG + 1*USB3.0
SPDIF digital audio
*1
HD
HD 2.1 *1
A/V OUT
*1
ETHERNET
*1
Power Supply
12V1.5A DC
TF card slot
For Micro SD card (TF card) *1
DVB-T2
DVB-T2 system standard:ETSIEN 302 755
Support MPLP
Demodulation: QPSK,16QAM,64QAM or 256QAM
Forward error correction rate 1/2,2/3,3/4,3/5,5/6
Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128
Bandwith: 6/7/8MHz
Input Frange range:54--860MHz Input Impedance:75 Ω
Input Signal level: -84 dBm to -5 dBm (average power)
ANT. Connector:IEC TYPE, female
DVB-S2X/S2
ETSI EN 302-307-1 V1.4.1 (Part 1: DVB-S2 and Part 2: DVB-S2X)
ETSI EN 300-421 V1.1.2 (DVB-S)
Normal (64800 bits) FECFRAME supported (DVB-S2X/S2)
Symbol Rates: QPSK,8PSK,16PSK,32PSK,64PSK
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
Roll-off factors for pulse shaping: 0.05 to 0.35
Symbol Rates: 1-54M MSps (DVB-S)
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
Input Signal level: -83 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE F
Adapter
*1
Gift Box
*1
IR remote control
*1
HD Cable
*1
User Manual
*1
