Sending from Russia (Moscow)

Shipment of orders from Tuesday to Saturday inclusive

Sunday and Monday are weekends.

Instructions and USB cable included no!

Programmable via USB

Thanks to the presence of a USB port at the bottom of the console, you can use the program rccreator to program the remote control instead of the remote control you are interested in.

Large database

The rccreator program includes a variety of remotes, replacing 95% of all existing ones. At the same time, the database is regularly updated, so that all the newest remotes will appear in the program after updates.

Replaces 4 remote!!!!

You can program the remote, for example, instead of the remote for TV, DVD player, satellite receiver and music center.

Built-in signal receiver

You can read the signal from your remotes and create new remotes in the program rccreator with the ability to re-enter the changer remote.

Technical characteristics.

193*48*18mm

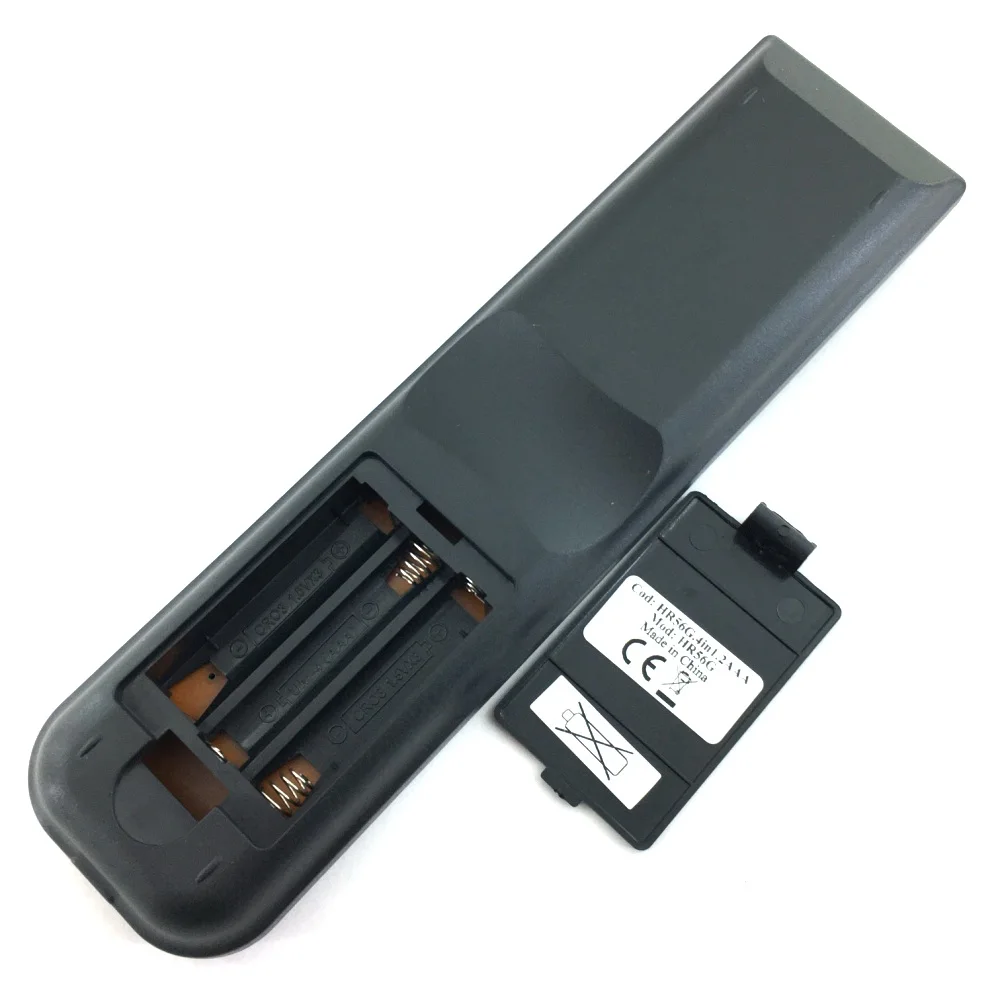

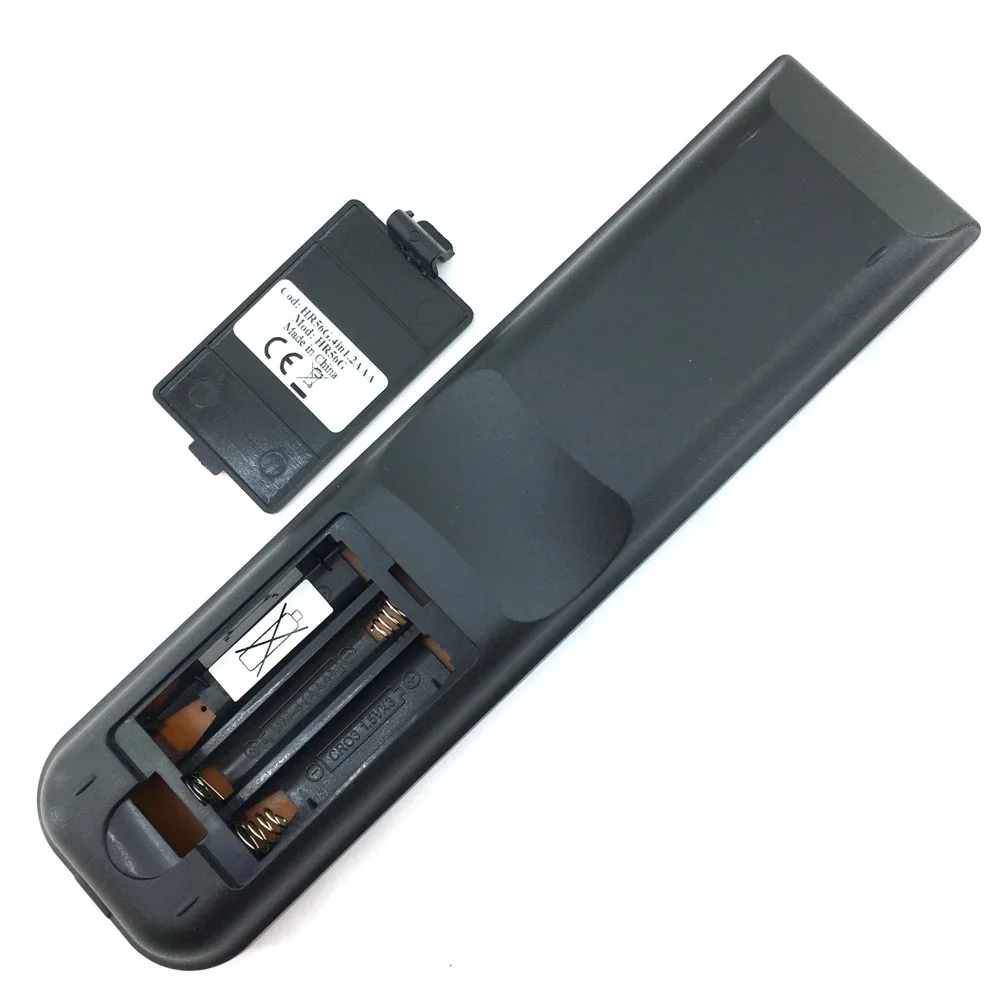

Power 3v 2 AAA batteries.

Additional TV control buttons

Even if you choose DVD mode, sat or aux you can control the volume of the TV and other basic functions, thanks to a special mini TV unit, control in any TV mode.

Changer USBProgrammable remote control. Depending on the model of the console, you can control 4 devices, contains 48 buttons, the number of which increases 2 times using the shift service button. This remote can be programmed both online on the manufacturer's website and on your own computer using the rccreator program, the database of which contains more than 4000 firmware from the remote control control up to the newest LCD TV, LED TV, DVD players, satellite tuners, home theater and car radio with TV and DVD support. Remotes are made only from high-quality materials in accordance with ISO9001-2000, and in its quality characteristics do not give way to original remotes. As a rule, the system of commands transmitted by the remote control of the TV, TV receiver or music center is individual for this kind of equipment. This allows you to avoid unwanted cross-switching from the "alien" console. But when managed devices are a lot, it becomes uncomfortable. Especially if the room is large, and the points for viewing are several. Help in this situation canUniversal Remote.

Universal remotes allow you to control several devices related to different types (TV, DVD, digital receiver, audio system). Some manufacturers equip such remote controls with their products (for example, satellite receivers). The functionality of the universal remote control is determined by the possibility of its reprogramming to support the management of devices produced by various manufacturers.

Universality is achieved in two ways:
-Using pre-installed code tables;
-Direct copying to the memory of the universal control remote control from the available usual remote control. Universal remotes, equipped with the function of copying commands, are called"Обучаемыми".

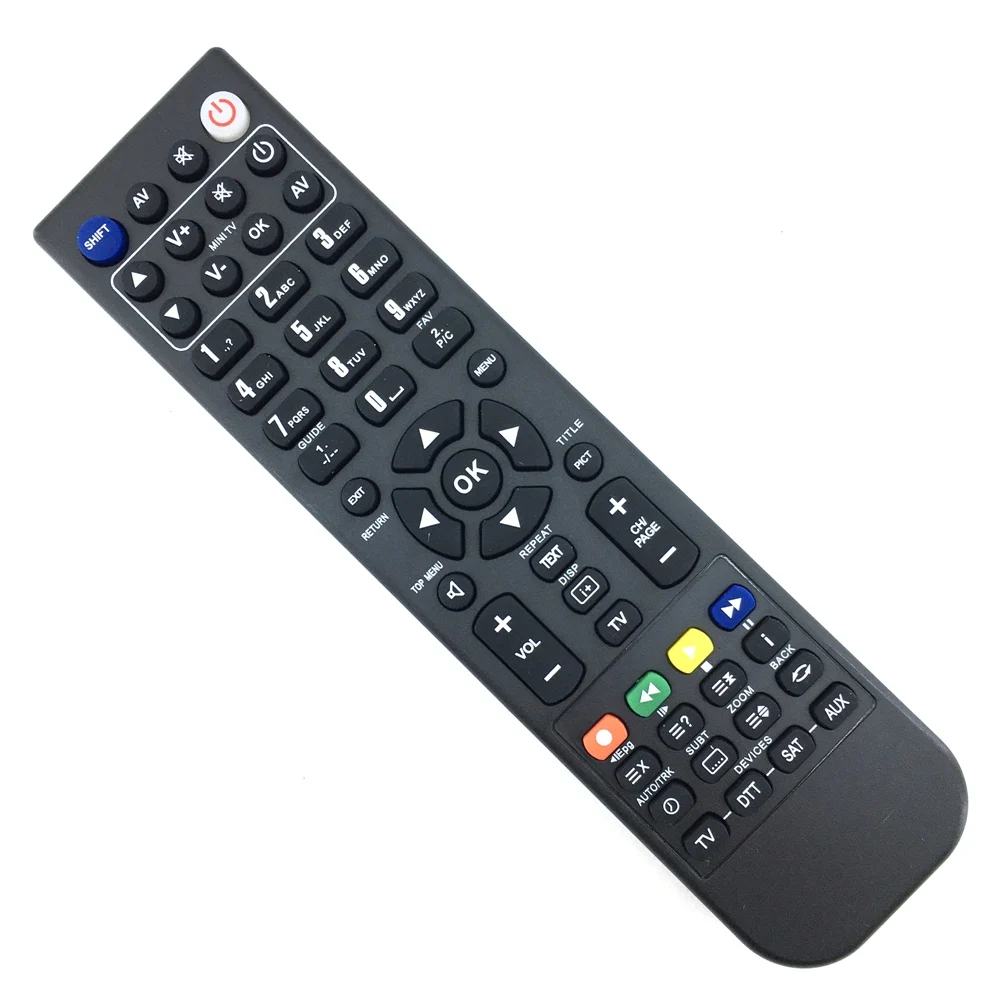

Remote ControllerChanger RC USB 4v1It is placed in a small plastic case in black. The dimensions of the case are 194x48x18mm.

Weighs the remote control no more than the usual (unprogrammable) remotes. On the bottom cover of the case there is a recess, which contributes to the better holding of the remote in the hand. The surface of the case is matte, dirt-repellent. The keyboard of the remote consists of48 keys. The keyboard buttons are strictly symmetrical, the case is also symmetrical, so the remote is equally convenient to use, holding it in the right or left hand. Buttons of the remote are pressed gently. Tactile feedback on pressing is good.

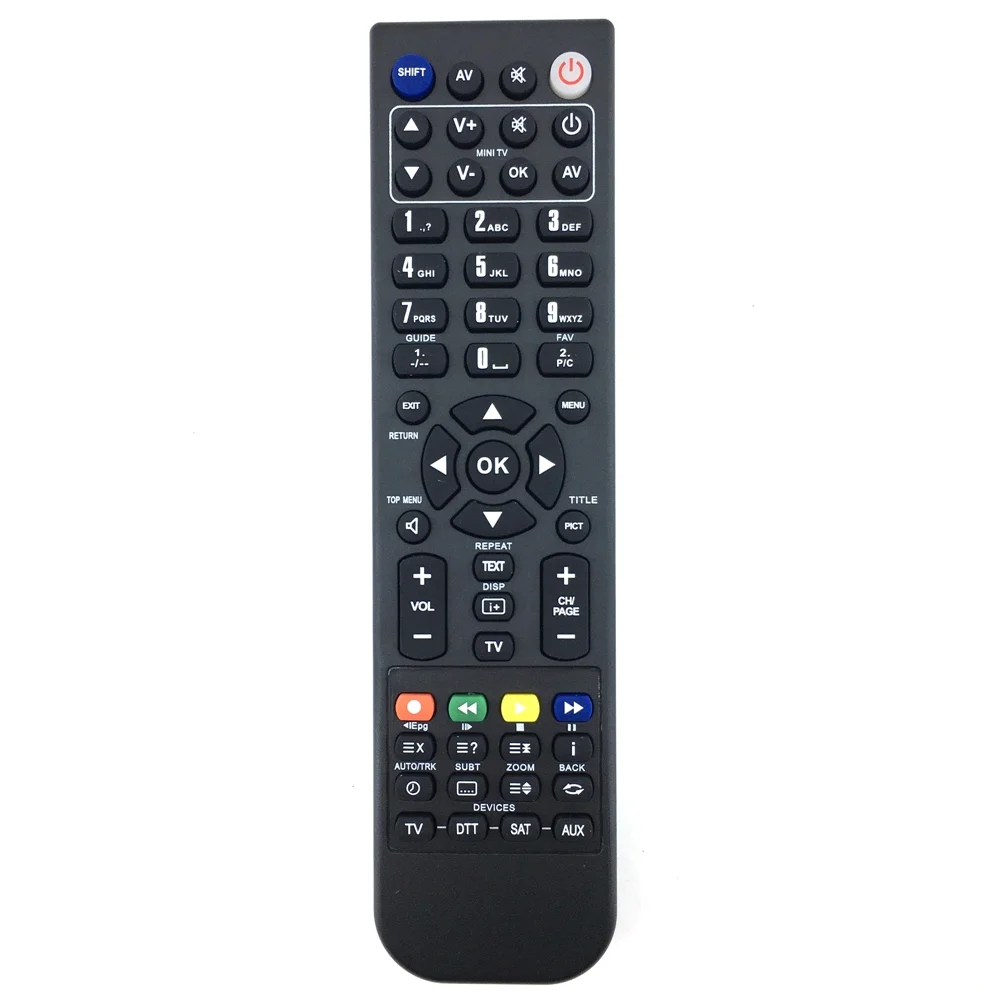

The keyboard buttons are grouped into zones according to the functional purpose. Buttons of each zone have different size and shape. The navigation circle is located exactly in the center, the buttons of the digital keyboard-at the top, the buttons of choice of services-at the bottom. To expand the functionality of the available buttons, the prefix shift button can be used.

There is a small zone of 8 buttons, designated as mini TV. This is a minimum set of buttons to control the viewing (switching programs, changing the volume level, confirming the installation, selecting the low-input, mute, switching to the waiting mode mode))

In the lowest row of the keyboard there are buttons for selecting a controlled device:TV, DVD, sat and AUX.

Most keyboard buttons are black. The power, shift buttons and a group of functional ("color") buttons are highlighted in color. The power button is equipped with a backlight that turns on when the command is sent, fixed to the programmed button. On the keyboard and the case of the console, clear, well-readable obs are applied, describing the functions of the buttons.

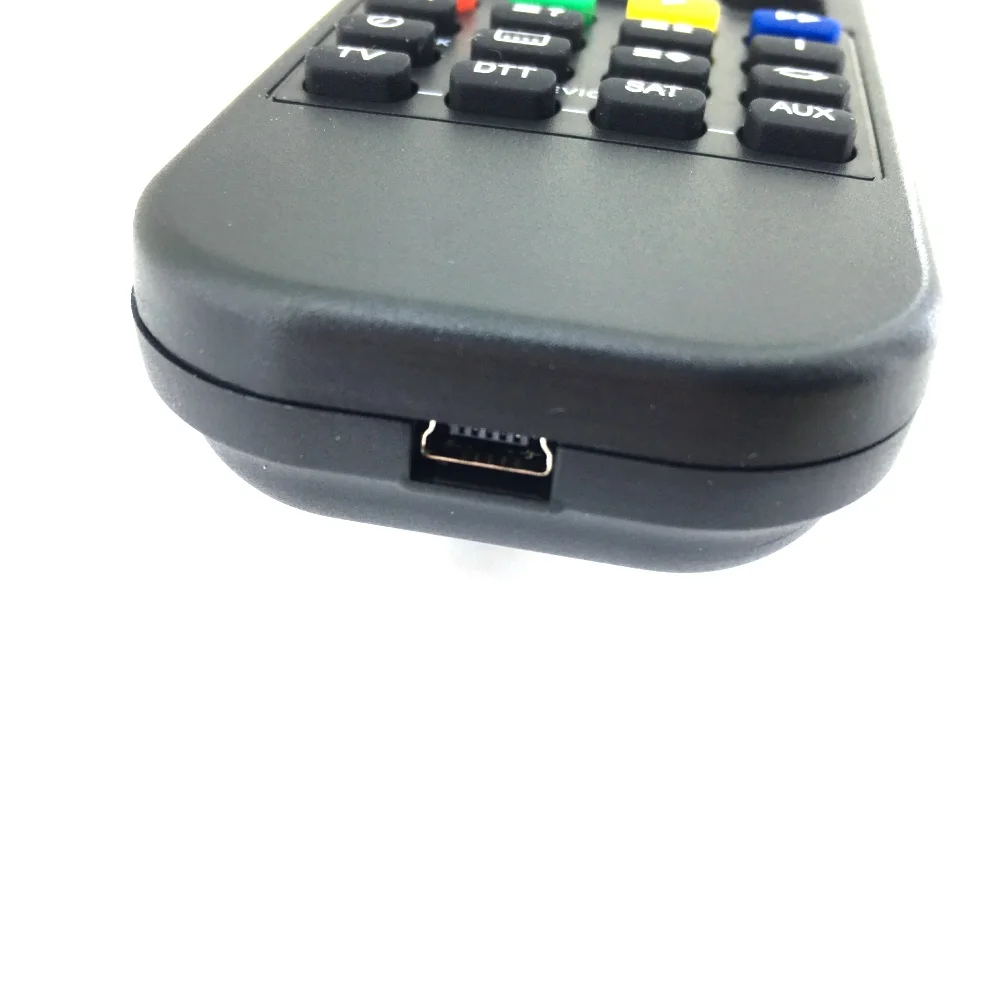

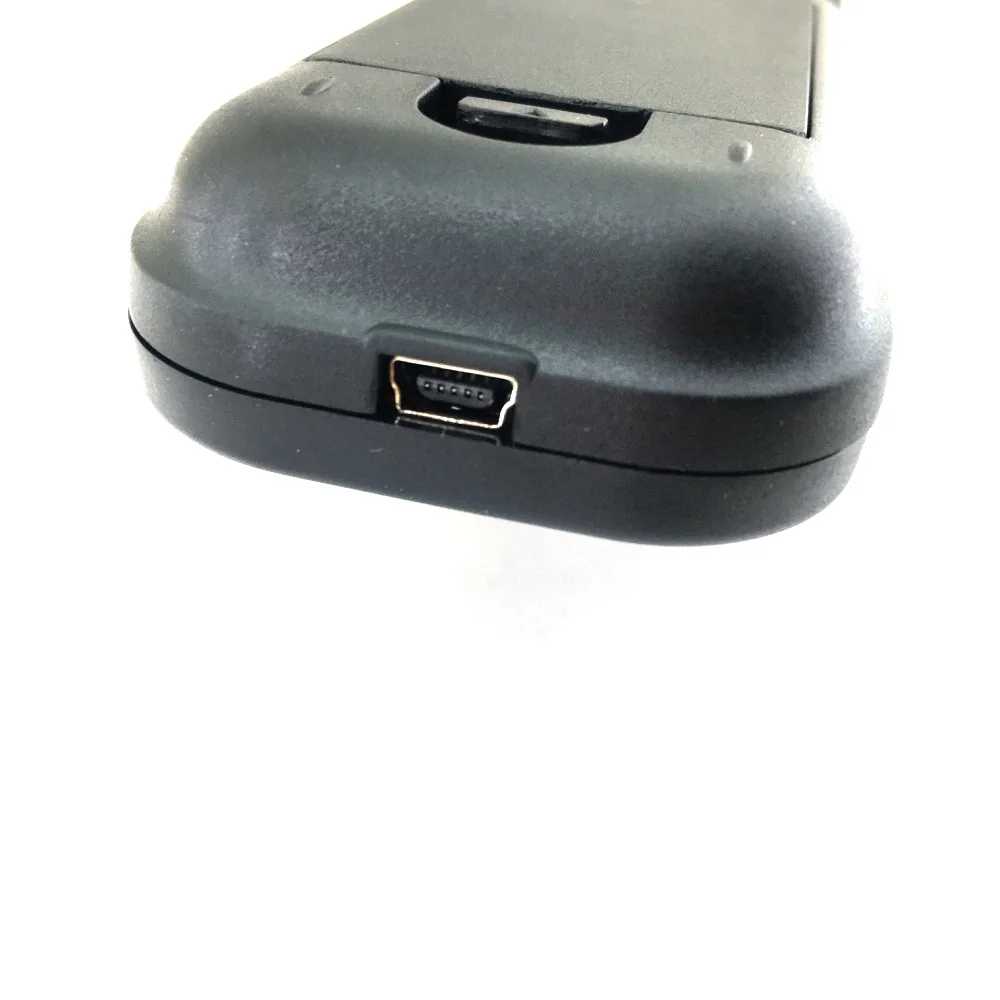

On the front (top) of the case is the logo of the company "remicon" and the name of the modification of the remote ("4:1"). On the lower end of the remote housing is the socket of the connectorMini USBUsed for computer communication. Powered by a remote control from three AAA batteries.

To work with the remote control, you will need a computer, the program rccreator (you can downloadFrom manufacturer) And cord USB - mini USB. The rccreator program is specifically designed for programming remotes produced by remicon. Also, the program has a number of additional service capabilities that allow you to expand the functionality of the changer remotes. From there you can download and connect to the database program rccreator archive photos of remotes.

The system requirements for the computer on which you can install the program rccreator will satisfy almost any platform:

Pentium II processor or AMD equivalent;

128 MB RAM, screen 800x600;

Operating system MS Windows XP;

Windows Vista or Windows 7.

When you start programs, the search for updates of the program itself and the database automatically turns on. During the testing of the remote, the database was updated several times. The rccreator interface is simple and clear. The program supports the choice of interface language (12 languages available, including Russian and Ukrainian). Language can be selected in the process of installing the program or assign it to the application in time.

In the left part of the program window there is a block of selection of parameters of database filters and modification of the changer remote. Searching for data on known models of remotes can be carried out by the manufacturer's base, by the base created by the user, or by all available databases.

Filter allows you to:

Ask a brand. In the database supplied with the program rccreator, data about remote control models for video and audio equipment produced by various manufacturers are collected.

Select device type. Devices that have information in the database are divided into 19 categories (TV, Sat, DVR, HiFi, aux, VCR and others). To use the filter, you can specify several types of devices from this list.

Specify the device model. The remote control data selected by the search filter can be saved as an XML file. You can import previously created remote database files into the current database.

To use the program with the universal remote changer, you need to choose its modification. The program provides the choice of four varieties of remote control changer USB: TV, DVD, sat and 4:1. On the right side of the program window displays the table of matching control commands to the buttons of the remote control selected, the image type of the universal remote changer with the snap buttons you-a- Switching to the bookmark "pictures" can display the image of the remote control selected by the search filter. The information about the selected remote control (its image, matching the keyboard layout with the buttons of the universal remote changer) can be printed from the program rccreator in the form of of of

When you first connect the remoteChanger RC USB 4v1To the USB port of the OS computer defined it as a USB HID-compatible device. Drivers system installed automatically. The rccreator program determines the presence of the changer RC connected to the computer.

The Changer RC USB + program rccreator allows you to read IR commands formed by any remote control. The receiving mode of the commands of the unknown remote control and their decoding the manufacturer called "removal of the remote control". For "removing commands", the IR emitter of the unknown remote is located at a distance of 3-5 cm from the receiving window of the remoteChanger RC. The reception of IR commands is indicated by the illumination of the power button of the universal changer RC remote. The program window displays the status of the received command. If the command is decrypted, it shows its six-digit code. The indicator of successfully received commands is also displayed on the screen. When you reread the same control command (this can be achieved with a long press of the keyboard buttons of the readable console), several indicators of accepted parcels will light up. Switching to the tab "Oscilloscope", you can view the oscilloscope of the accepted team, decryption of the address and team in binary code.

If you fail to receive an IR command, an unknown message is displayed on the screen. This happens when the optical IR signal of the readable remote is insufficient for sure receiving the changer RC IR sensor (for example, if the distance between the remote is more than 5 cm cm)) or with insufficient long press on the keyboard buttons.

The "removed" command codes can be used to search in the existing device model database, which corresponds to this console, or when creating a new console command card. The search tab shows the six-digit code "removed" commands and buttons to which you can associate this code. The list of buttons includes the most important and common types of control commands, available for almost every remote control: Power, mute, menu, OK, digital keyboard buttons and some others. After the user points out one of these buttons, the accepted code is associated with it and the program automatically starts searching for compliance in the selected database. Consistently reading the codes of several buttons of the unknown remote, you can associate with them several buttons of the submenu "search". To improve the precision of the search, you can use a pre-installed filter, specifying the manufacturer or model name. If the database has found the matching link "remote command", then the program window displays a list of the windy devices. In that case, if such devices are several (for example, if the "removable" remote can control multiple devices), the "links" tab can see a list of all these devices. This combination can match the pre-prepared "firmware" of the universal controller changer RC, which is recorded as"Changer xxxx", where "XXXX"-Code of this combination of remotes.

On the right pane of the home tab window displays a table of matching command codes of the device found and the name of the function buttons. The image of the universal remote "4:1" marked buttons that are fixed to commands when using the changer RC remote. Testing showed that even without a filter the program correctly determines the manufacturer, the model of the device and the type of remote control of various products (TVs, satellite receivers, audio devices).

The "removable" remote can be saved in the database and as new. The procedure for creating the console is very simple. It is required to alternately count the codes of the buttons of the "removable" remote, give each of them a name and link the key to the button of the changer RC remote. To expand the functionality of the assigned buttons, you can use the shift prefix. Then you can link two commands to the universal remote button: One-formed after pressing shift, another-without it.

The names of the buttons can be edited at your discretion. If required, the remote in the database is associated with its image. Supported formats for downloadable pictures BMP, JPG and PNG.

The Changer RC remote can control various devices both offline and in collaboration with rccreator. The control mode through the program rccreator manufacturer called "virtual remote". In this mode, the remote must be connected to the USB port of the computer. A suitable remote is selected from the rccreator database and virtual remote is enabled.

The Changer RC remote is directed towards the controlled device. The keyboard uses the "4:1" remote image buttons of the "home" tab of the program rccreator. Command issuance is duplicated by the illumination of the power button.

When offline as a universal device, the changer RC USB 4v1 remote can be programmed to control four different products. Programming is carried out using the program rccreator. For programming, you can use data stored in the manufacturer's database or created by the user. When programming, the selected remote from the base can be fixed to one of the types of devices (TV, DVD, Sat, aux). To program all four devices, you need to consistently select them from the database, and then write to the memory of the changer RC remote. Programming takes a few seconds. You can monitor the progress of the programming according to the power indicator. To remove the recorded remote, the "clear" function is provided.

Attention! If often blinks the button on the remote, this remote will inform you that you would replace the batteries and not that it broke down
